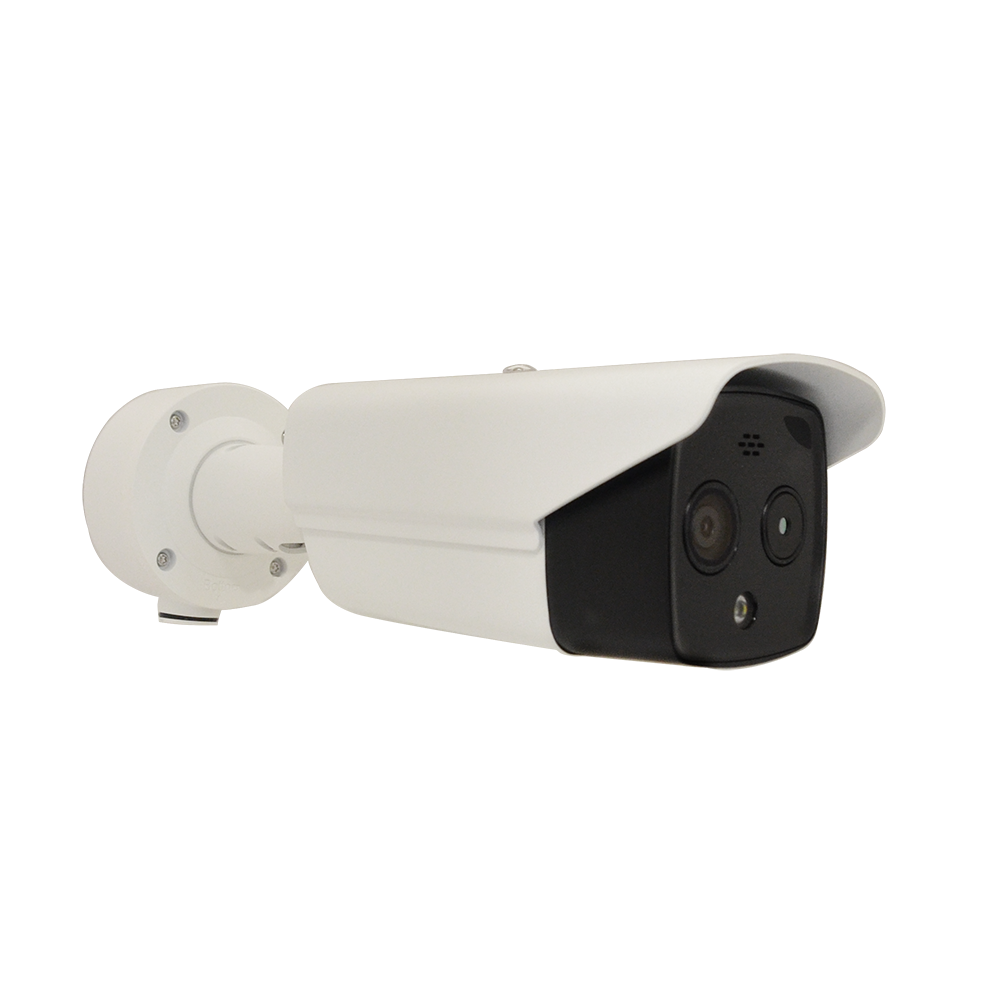

ACTi VMGB-371 4MP Human Temperature Detection Metadata Camera with f4.0mm (optical)
Quantity:
- 4 Megapixel Metadata Camera
- Day & Night with IR LED
- Built-in Human Temperature Detection
Device
| Product Type | Metadata Camera |
| Maximum Resolution | 4MP |
| Product Application | Human Temperature Detection |
| Application Environment | Indoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | Optical: 1/2.7 " |
| Effective Pixels | Thermal: 160(H) X 120(V) |
| Spectral Range | 8-14μm |
| Thermal Sensitivity | NETD <40mK at F1.1 |
| Spatial Resolution | 5.48 mrad |
| Day / Night | Yes |
| Minimum Illumination | Color: 0.0089 lux at F1.6 (AGC on); B/W: 0.0018 lux at F1.6 (AGC on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 40m |
| Electronic Shutter | 1-1/100000 second (auto mode) |
Lens
| Number of Lenses | 2 Lenses |
| Focal Length | Thermal camera Fixed focal, f3.1mm Visual camera Fixed focal, f4.0mm |
| Focus | Fixed focus |
| Horizontal Viewing Angle | (Thermal camera) 50° (Visual camera) 84° |
| Vertical Viewing Angle | (Thermal camera) 37.2° (Visual camera) 44.8° |
Video
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | (Visual camera) 30 fps at 2688 x 1520 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 704 x 480 30 fps at 352 x 240 30 fps at 176 x 120 (Thermal camera) 25 fps at 1280 x 720 25 fps at 704 x 576 25 fps at 640 x 480 25 fps at 352 x 288 25 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Image Enhancement | White Balance |
| Digital Noise Reduction | 3D DNR |
| Built-in Analytics | Human Temperature Detection |
Audio
| Audio Type | 2-way, Mic-in, Stereo Line-in, Line-out |
| Audio Compression | G.711, G.722.1, G.726, PCM, MP2L2, AAC, MP3 |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, TLS 1.2, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
Temperature Measurement
| Temperature Range | 30°C ~ 45°C (86°F ~ 113°F) |
| Temperature Accuracy | ±0.5°C |
Event
| Event Response | E-mail notification with snapshots, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output |
System
| Language | Multi-Language, English, Traditional Chinese |
Integration
| ONVIF Compliant | Yes |
Interface
| Audio Interface | 1/1, 3.5mm Phone Jack |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB) |
| Digital Input/Output | 2/2 |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6 W (DC), 6.5 W (PoE) |
| Dimensions | (L x W x H): 358.3mm x 113.5mm x 115.2mm (14.10" x 4.47" x 4.53") |
| Environmental Casing | Weatherproof (IP66) |
| Operating Temperature | 10°C ~ 35°C (50°F ~ 95°F) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
4MP Human Temperature Detection Metadata Camera with f4.0mm (optical), f3.1mm (thermal), H.265/H.264, 3D DNR, Audio, MicroSD/MicroSDHC/MicroSDXC, PoE/DC12V, IP66, DI/DO, RS-485
