ACTi

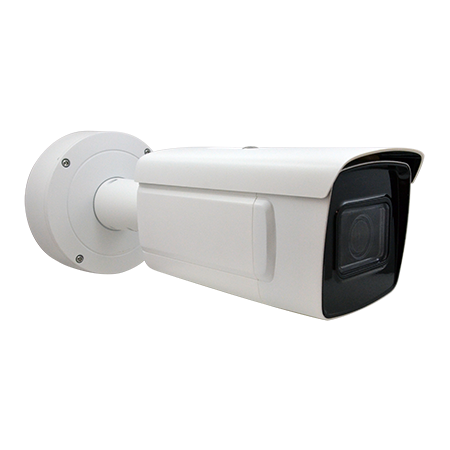

ACTi VMGB-400 2MP ALPR Metadata Camera with D/N, IR, Extreme WDR, SLLS, 4.3x Zoom lens
Quantity:
Choose options
Quantity:
- 2 Megapixel Metadata Camera
- Day & Night with IR LED
- Automatic License Plate Recognition
Device
| Product Type | Metadata Camera |
| Maximum Resolution | 2MP |
| Product Application | Automatic License Plate Recognition |
| Application Environment | Outdoor |
| Description | Wide Angle Camera Built-in Deep learning-based ALPR with working for car speed <60km/h. (Available for cars in Taiwan) |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.001 lux at F1.2 (AGC on); B/W: 0.0003 (AGC on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 50m |
| Electronic Shutter | 1-1/100000 second (auto mode) |
Lens
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.2-F2.5 |
| Zoom Ratio | 4.3x optical zoom |
| Iris | P-Iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 107.3° - 39.8° |
| Vertical Viewing Angle | 55.9° - 22.3° |
Video
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 60 fps at 1920 x 1080 60 fps at 1280 x 720 30 fps at 704 x 480 30 fps at 640 x 480 |
| Multi-Streaming | Simultaneous 5 streams |
| Bit Rate | 32Kbps - 16Mbps (per stream) |
| Wide Dynamic Range | Extreme WDR (140 dB) |
| Image Enhancement | Defogging, Digital Image Stabilizer (DIS, EIS) |
| Digital Noise Reduction | 3D DNR |
| Built-in Analytics | Automatic License Plate Recognition, Object Line Crossing Detection, Object Enter Area Detection |
| Image Orientation | Rotation (Corridor mode) |
Audio
Network
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
Video Analytics
| Vehicle Type | Cars |
| Analysis Source Type | Video |
| Metadata Accuracy | Good |
Integration
| ONVIF Compliant | Yes, Profile S, Profile G |
| Supported Countries | Taiwan |
Interface
| Analog Video Output | 1 x CVBS, BNC connector |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (bundled 64GB SD card; support for up to 256GB) |
| Digital Input/Output | 2/2 |
General
| Power Source | DC 12V, High PoE (IEEE802.3at) |
| Power Consumption | 16 W (DC), 18 W (PoE) |
| Weight | 1920g (4.2lb) |
| Dimensions | (Ø x L): 140mm x 351mm (5.5" x 13.8") |
| Environmental Casing | Weatherproof (IP67), Vandal proof metal casing (IK10) |
| Heater | Yes |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Dimension Diagram
Unit: mm [inch]
