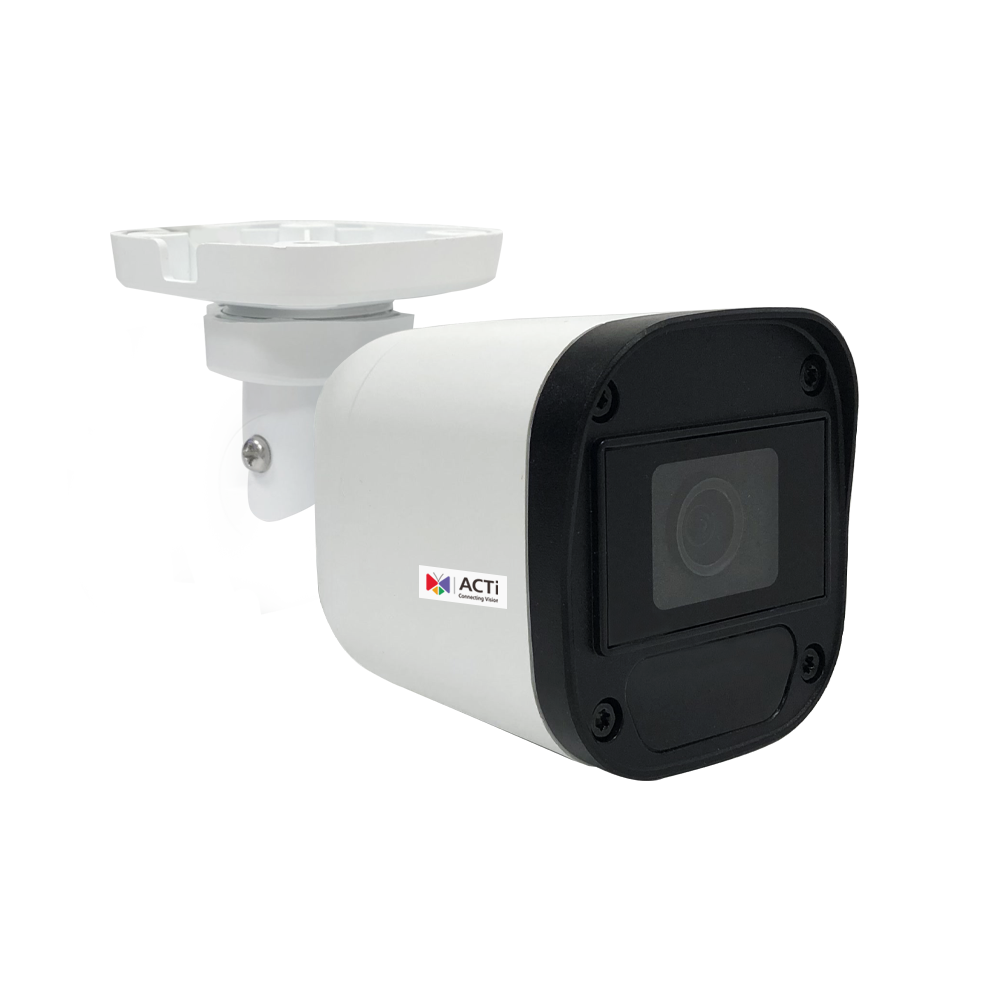

ACTi Y31 2MP Analog Mini Bullet with D/N, Extreme WDR, ELLS, Fixed Lens
Quantity:
- 2 Megapixel
- Fixed Lens with f2.8mm/F2.0
- Extreme WDR
- Wide Angle
Device
| Product Type | Analog Mini Bullet |
| Maximum Resolution | 2MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.02 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR Working Distance | 30m |
| Electronic Shutter | 1/30-1/50000 second (NTSC), 1/25-1/50000 second (PAL) |
Lens
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 90.5° |
| Vertical Viewing Angle | 49.6° |
Video
| Maximum Frame Rate vs. Resolution | (TVI/AHD/CVI) 30 fps at 1920 x 1080 (CVBS) NTSC, PAL |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Enhancement | White Balance |
| Digital Noise Reduction | DNR |
| Image Orientation | Flip |
Network
| Ethernet Port | No |
Interface
| Analog Video Output | 1 x BNC connector, supports TVI/AHD/CVI/CVBS |
General
| Power Source | DC 12V (adapter not included), plug size 2.1x5.5mm |
| Weight | 135g (0.30lb) |
| Dimensions | (L x W x H): 142mm x 63mm x 65mm (5.59" x 2.48" x 2.56") |
| Environmental Casing | Weatherproof (IP67) |
| Mount Type | Pole Mount, Corner Mount |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤90% RH |
| Surge Protection | 4KV |
| Approvals | CE Class B, FCC Class B, IP67, UL Listed(*) |
| Material | Plastic |
| Real-time Clock (RTC) | No |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * UL certification will be available in Q1 2024. |
Photo Indication
- DC 12V Power Input
- Analog Video Output Connector
Dimension Diagram
Unit: mm [inch]
