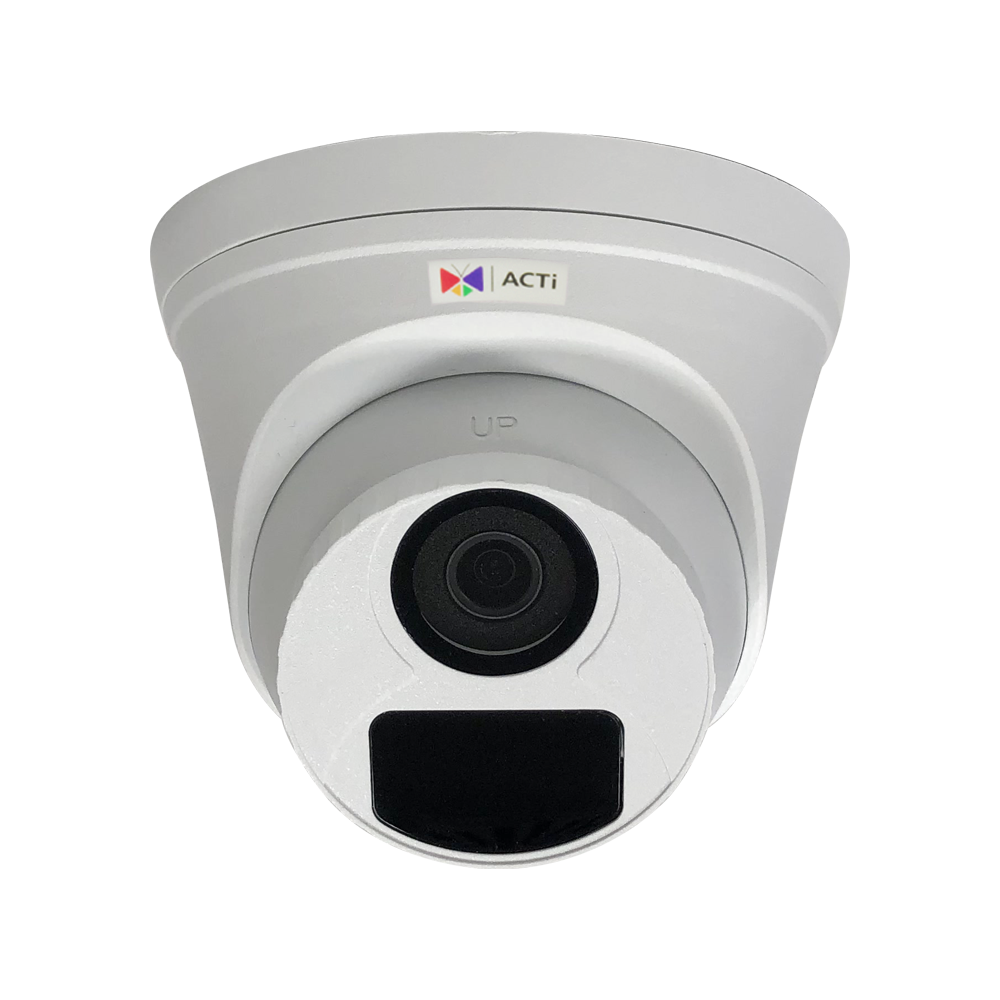

ACTi Y72 5MP Outdoor Analog Dome Camera with D/N, Adaptive IR, Extreme WDR, ELLS

ACTi

ACTi Y72 5MP Outdoor Analog Dome Camera with D/N, Adaptive IR, Extreme WDR, ELLS

$168.00 $193.00
Save $25.00
SKU: Y72
Quantity:
Link to Manufacturer's Page

Contact

  • 5 Megapixel
  • Fixed Lens with f2.8mm/F2.0
  • Extreme WDR
  • Super wide angle



Device


Product Type Analog Dome
Maximum Resolution 5MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.7 "
Day / Night Yes
Low Light Sensitivity Extreme
Minimum Illumination Color: 0.02 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on)
Mechanical IR Cut Filter Yes
IR Working Distance 30m
Electronic Shutter 1/30-1/50000 second (NTSC), 1/25-1/50000 second (PAL)

Lens


Focal Length Fixed focal, f2.8mm
Aperture F2.0
Iris Fixed iris
Focus Fixed focus
Lens Mount Board mount
Horizontal Viewing Angle 102.2°
Vertical Viewing Angle 53.9°
Viewing Angle Adjustment Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360°

Video


Maximum Frame Rate vs. Resolution (TVI/AHD)
20 fps at 2592 x 1944
(CVI)
25 fps at 2880 x 1620
(CVBS)
NTSC, PAL
Wide Dynamic Range Extreme WDR (130 dB)
Image Enhancement White Balance
Digital Noise Reduction DNR
Image Orientation Flip

Network


Ethernet Port No

Interface


Analog Video Output 1 x BNC connector, supports TVI/AHD/CVI/CVBS

General


Power Source DC 12V (adapter not included), plug size 2.1x5.5mm
Weight 182g (0.401lb)
Dimensions (Ø x H): 118mm x 96mm (4.65" x 3.78")
Environmental Casing Weatherproof (IP67)
Mount Type Pole Mount, Pendant, Corner Mount
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Operating Humidity ≤90% RH
Surge Protection 4KV
Approvals CE Class B, FCC Class B, IP67, UL Listed(*)
Material Plastic
Real-time Clock (RTC) No
Warranty 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments * UL certification will be available in Q1 2024.

Photo Indication

  1. DC 12V Power Input
    • Analog Video Output Connector

      Dimension Diagram

      Unit: mm [inch]
