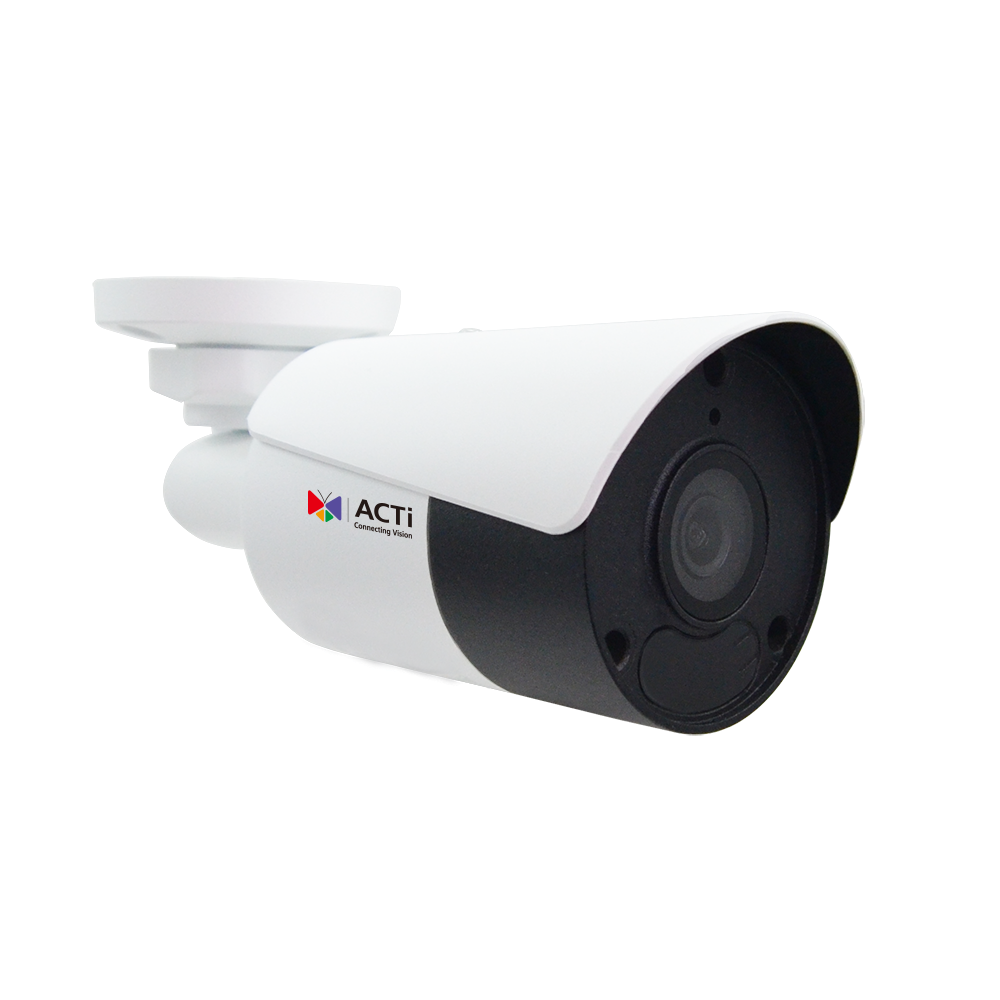

ACTi Z315 5MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens
ACTi Z315 5MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens

ACTi

ACTi Z315 5MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens

$324.00 $374.00
Save $50.00
SKU: Z315
Quantity:
Link to Manufacturer's Page

Contact

  • 5 Megapixel
  • Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
  • Fixed Lens with f2.8mm/F1.6
  • Superior WDR
  • Super wide angle
  • Built-in Analytics

Device

Product Type Mini Bullet
Maximum Resolution 5MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.7 "
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on)
Mechanical IR Cut Filter Yes
IR LED Adaptive IR LED (850 nm)
IR Working Distance 50m
S/N Ratio 56 dB

Lens

Focal Length Fixed focal, f2.8mm
Aperture F1.6
Iris Fixed iris
Horizontal Viewing Angle 112.9°
Vertical Viewing Angle 59.1°
Viewing Angle Adjustment Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360°

Video

Compression H.265, H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 25 fps at 2880 x 1620
25 fps at 2560 x 1440
30 fps at 2304 x 1296
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 720 x 576
30 fps at 640 x 360
Multi-Streaming Simultaneous dual streams
Bit Rate 128Kbps - 16Mbps (per stream)
Wide Dynamic Range Superior WDR (120 dB)
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions
Built-in Analytics Tampering Detection, People Line Crossing Detection, Intrusion Detection (Forbidden Area Detection)
Image Orientation Flip, Mirror, Rotation (Corridor mode)

Audio

Audio Type 1-way, Built-in Microphone
Audio Compression G.711

Network

Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, QoS, SSL
Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector

Event

Event Trigger Video motion detection, Sound detection, Intelligent event detection

Integration

ONVIF Compliant Yes, Profile S, Profile G, Profile T

Interface

Local Storage MicroSD Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
Operating Button No

General

Power Source DC 12V, PoE (IEEE802.3af)
Power Consumption 6 W (PoE)
Weight 430g (0.95lb)
Dimensions (L x W x H): 190mm x 73mm x 71mm (7.5" x 2.9" x 2.8")
Environmental Casing Weatherproof (IP68)
Mount Type Pole Mount
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Approvals CE, FCC Class B, IP68
Color White
Warranty 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. DC 12V Power Input
  2. Ethernet Port
  3. Built-in Microphone
  4. Memory Card Slot

Dimension Diagram

Unit: mm [inch]
