ACTi

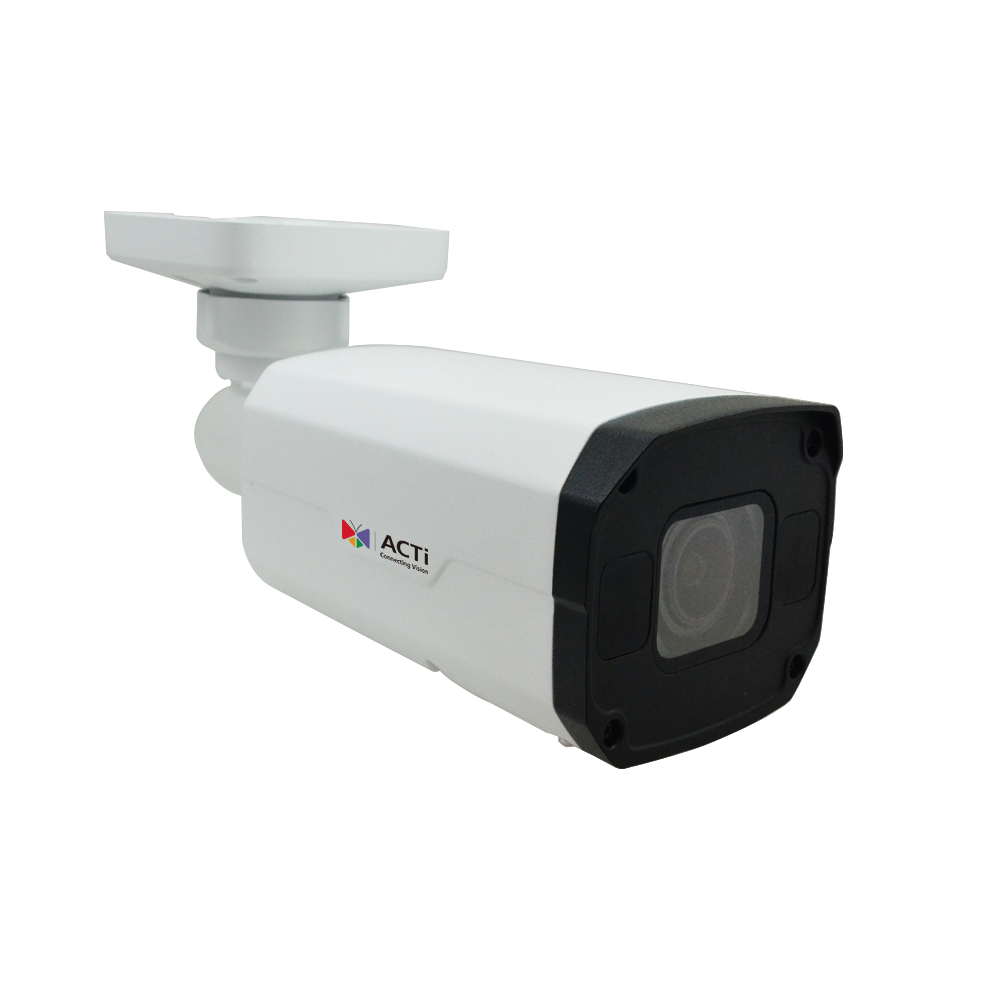

ACTi Z47 8MP Zoom Bullet with D/N, Adaptive IR, Superior WDR, SLLS, 4.3x Zoom Lens
Quantity:
Device
| Product Type | Zoom Bullet |
| Maximum Resolution | 8MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED x 3 (850 nm) |
| IR Working Distance | 50m |
| S/N Ratio | 56 dB |
Lens
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.6 |
| Zoom Ratio | 4.3x optical |
| Zoom Application | Camera Installation |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 99.8° - 31.1° |
| Vertical Viewing Angle | 53.1° - 17.7° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
Video
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 3840 x 2160 30 fps at 3072 x 1728 30 fps at 2560 x 1440 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 30 fps at 704 x 288 30 fps at 352 x 288 |
| Multi-Streaming | Simultaneous triple streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Image Enhancement | Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Built-in Analytics | Tampering Detection, Intrusion Detection (Forbidden Area Detection), Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, Appear in Area |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
Audio
| Audio Type | 2-way, Line-in, Line-out |
Integration
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
Interface
| Local Storage | MicroSD Memory Card Slot (card not included, up to 256GB) |
| Digital Input/Output | 1/1 (Cable with Terminal block) |
| Operating Button | No |
General
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Weight | 970g (2.14lb) |
| Dimensions | (W x H x D): 86mm x 72mm x 245mm (3.4" x 2.8" x 9.6") |
| Environmental Casing | Weatherproof (IP67), Vandal proof metal casing (IK10) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Approvals | CE, FCC, IP67, IK10 (metal casing) |
| Color | White |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Dimension Diagram
Unit: mm [inch]
8MP Zoom Bullet with D/N, Adaptive IR, Superior WDR, SLLS, 4.3x Zoom lens, f2.8-12mm/F1.6 (HOV:99.8°-31.1°), Auto Focus (for installation), H.265/H.264, 1440p/30fps, 2D+3D DNR, Audio, MicroSD, PoE/DC12V, IP67, IK10 (metal casing), DI/DO
