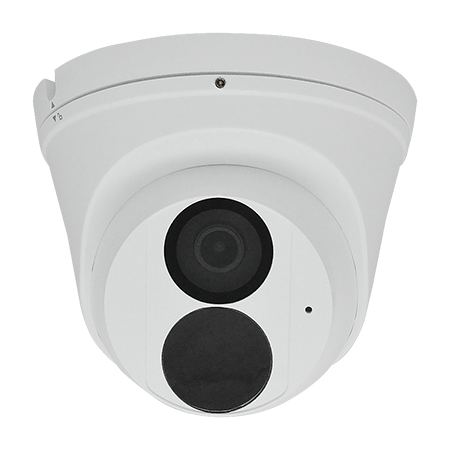

ACTi Z73 2MP Outdoor Dome with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens
ACTi Z73 2MP Outdoor Dome with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens

ACTi

ACTi Z73 2MP Outdoor Dome with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens

$276.00 $319.00
Save $43.00
SKU: Z73
Quantity:
Link to Manufacturer's Page

Contact

  • 2 Megapixel
  • Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
  • Fixed Lens with f2.8mm/F2.0
  • Superior WDR
  • H.265 Compression
  • Super wide angle

Device

Product Type Dome
Maximum Resolution 2MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.7 "
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.01 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on)
Mechanical IR Cut Filter Yes
IR LED Adaptive IR LED (850 nm)
IR Working Distance 30m
S/N Ratio 52 dB

Lens

Focal Length Fixed focal, f2.8mm
Aperture F2.0
Iris Fixed iris
Horizontal Viewing Angle 100.5°
Vertical Viewing Angle 56.7°
Viewing Angle Adjustment Pan: 0°-360°, Tilt: 0°-80°, Rotation: 0°-360°

Video

Compression H.265, H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 720 x 576
30 fps at 640 x 360
30 fps at 704 x 288
30 fps at 352 x 288
Multi-Streaming Simultaneous dual streams
Wide Dynamic Range Superior WDR (120 dB)
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions
Built-in Analytics Tampering Detection
Image Orientation Flip, Mirror, Rotation (Corridor mode)

Audio

Audio Type 1-way, Built-in Microphone
Audio Compression G.711

Network

Network Protocol & Service IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, QoS, SSL
Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector

Event

Event Trigger Video motion detection, Sound detection, Tampering detection

Integration

ONVIF Compliant Yes, Profile S, Profile G, Profile T

Interface

Local Storage MicroSD Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
Operating Button No

General

Power Source DC 12V, PoE (IEEE802.3af)
Power Consumption 7 W (PoE)
Weight 300g (0.66lb)
Dimensions (Ø x H): 118mm x 96mm (4.6" x 3.8")
Environmental Casing Weatherproof (IP67)
Mount Type Wall Mount, Pole Mount, Pendant
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Approvals CE, FCC Class B, IP67
Color White
Warranty 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. DC 12V Power Input
  2. Ethernet Port
  3. Memory Card Slot
  4. Lock Screw
  5. Built-in Microphone

Dimension Diagram

Unit: mm [inch]
