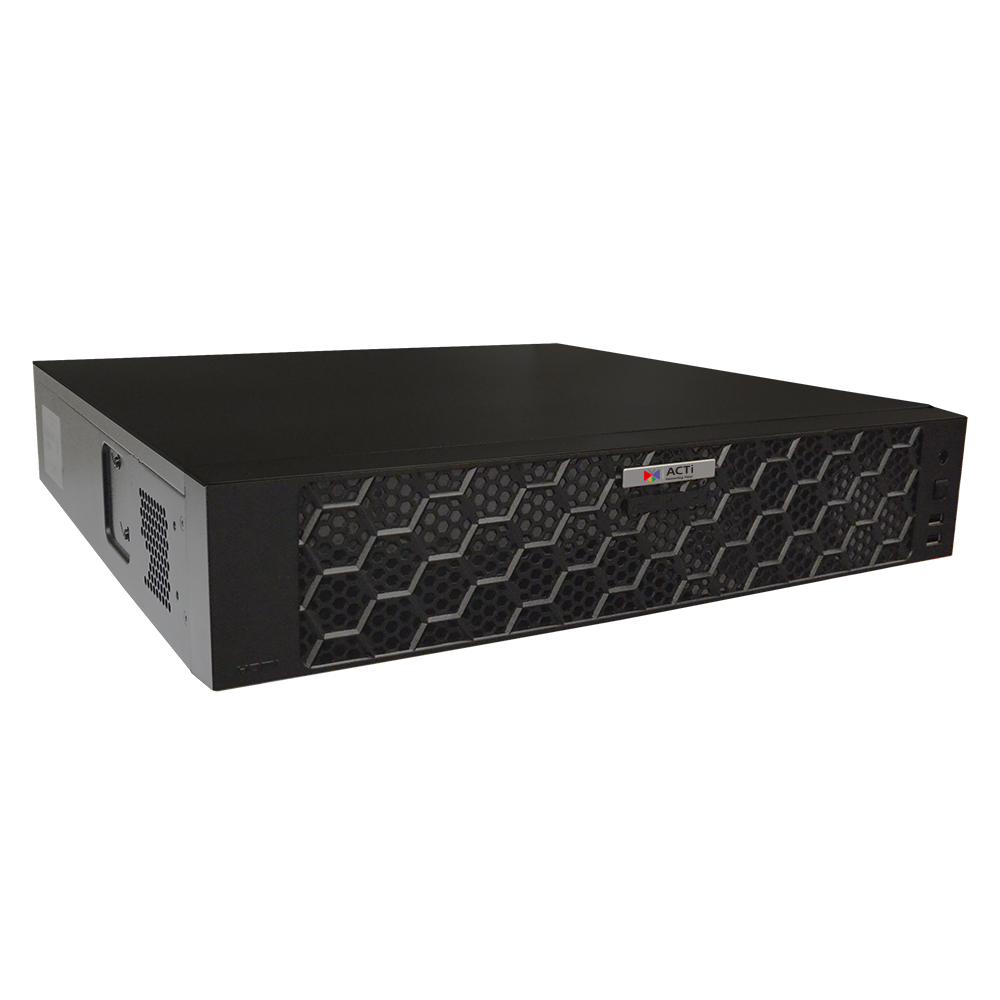

ACTi ZNR-424 64-Channel Rackmount Standalone NVR 12MP

$1,998.67 $2,141.00
Save $142.33
SKU: ZNR-424
Quantity:
Link to Manufacturer's Page

Contact

  • 8-bay 2U Rackmount Standalone NVR
  • Maximum Number of Video Devices: 64
  • Web Client
  • Event trigger, response and notification
  • Video export formats: MP4

Device

Product Type Standalone NVR
Maximum Resolution 12MP
Maximum Number of Video Devices 64
Supported Screen Resolution HDMI: 3840x2160 (30Hz), 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz)
VGA: 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz)

License

License required No
Free License 64

Live View

Display Layout Mode 1, 4, 6, 8, 9, 16, 25, 36, 64
Local Live View performance [H.265]
2ch (up to 30 fps at 12MP)
4ch (up to 30 fps at 4K 3840 x 2160)
6ch (up to 30 fps at 5MP)
8ch (up to 30 fps at 4MP)
10ch (up to 30 fps at 3MP)
16ch (up to 30 fps at 2MP 1920 x 1080)
32ch (up to 25 fps at 960p)
36ch (up to 30 fps at 720P)
64ch (at D1)
[H.264]
2ch (up to 30 fps at 12MP)
2ch (up to 30 fps at 4K 3840 x 2160)
4ch (up to 30 fps at 5MP)
6ch (up to 30 fps at 4MP)
8ch (up to 30 fps at 3MP)
14ch (up to 30 fps at 2MP 1920 x 1080)
28ch (up to 25 fps at 960p)
30ch (up to 30 fps at 720P)
64ch (at D1)

PTZ

PTZ Control PTZ Control, Speed Control

Video

Compression H.265, H.264
Built-in Analytics PTZ Auto Tracking*, Intrusion Detection (Forbidden Area Detection)*, Object Line Crossing Detection*, Unattended Object Detection*, Missing Object Detection*

Audio

Audio Type 2-way, Line-in, Line-out
Audio Compression G.711 A-law, G.711 u-law

Network

Network Protocol & Service IPv4/v6, TCP, UDP, DHCP Client, HTTP, HTTPS, DNS, DDNS, NTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, SNMP
Ethernet Port 2 x Ethernet (10/100/1000 Base-T), RJ-45 connector
Maximum Outgoing Throughput 160 Mbps

Recording

Scheduled Recording Yes
Event Recording Yes
Manual Recording Yes
Maximum Recording Throughput 320 Mbps

Search & Playback

Playback Control Continuous forward and backward playback with speeds 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x, pause, stop
Synchronized Playback 16 channels
Video Export MP4
Snapshot Export JPEG

Event

Event Trigger [NVR]: Low disk space, Disk full, Disk not found, Failed to write storage, IP address conflict, Network loss.

[Video Device]: Video motion detection, Tampering detection, External device through digital input, Sound detection
Event Response E-mail notification with snapshots, Upload snapshot to FTP server

System

Permission control 128 Remote users, Customizable permissions for user groups
Client PC Operating System Windows 7, Windows 8, Windows 10
Server Operating System Embedded Linux
USB 2-Port USB 2.0, 1-Port USB 3.0
Language English

Integration

Edge Recording Automatically restore the lost videos from the memory card of Z-series camera to ZNR server via proprietary protocol integrations after network connection recovery.
ONVIF Compliant Yes, Profile S, Profile G, Profile T
Web Browser IE 10 or newer, Google Chrome, Microsoft Edge, Firefox

Storage

Storage Bay SATA, Max. 8 Disk(s) (without storage disks)
HDD Size 3.5"
Maximum Recording Capacity 12TB x8
RAID Level No

Interface

Serial Port 1 x RS-485
Audio Interface RCA Jack
Digital Input/Output 16/4
Local Access USB Mouse
Local Display Interface HDMI x 1, VGA x 1

General

Power Source AC 100-240V
Power Consumption 32 W (AC, without HDD)
Weight 4000g (8.80lb)
Dimensions (W x H x D): 442mm x 89mm x 426mm (17.4" x 3.5" x 16.8")
Rack Space: 2U
Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)
Operating Humidity 10% - 90% RH
Remote Access Web Client
Color Black
Warranty 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments * The supported analytics functions depend on the compatible Z-series cameras.

Dimension Diagram

Unit: mm [inch]
