Arecont Vision AV10005DN

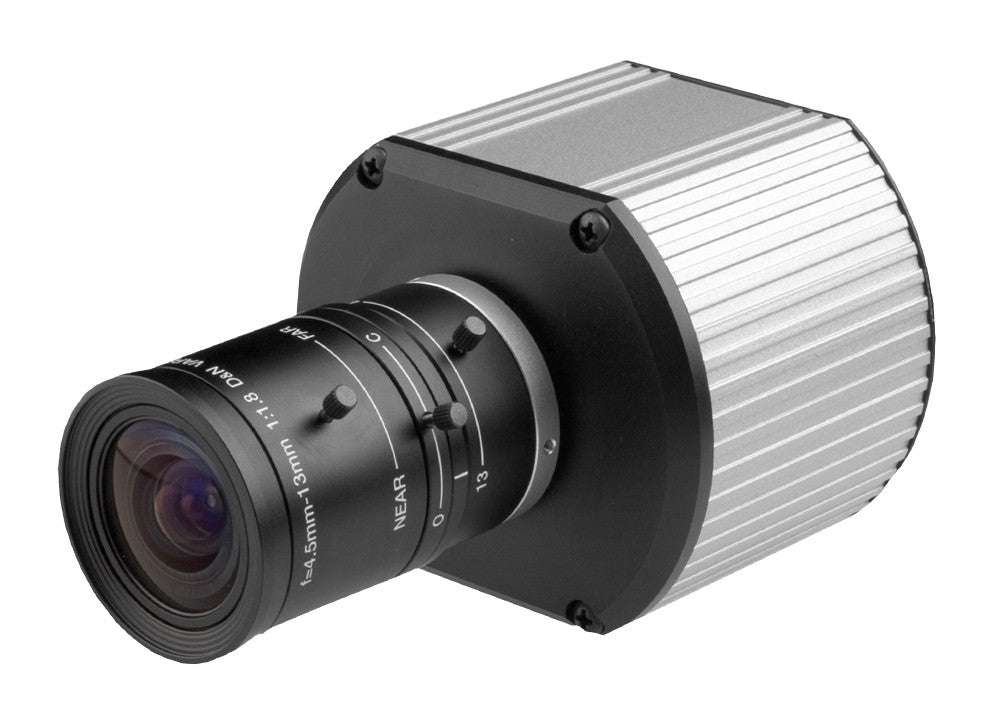

Arecont Vision AV10005DN MegaVideo® IP Network Camera

Arecont Vision

Arecont Vision AV10005DN MegaVideo® IP Network Camera

Sale price$235.00
Discontinued
SKU: AV10005DN

Arecont Vision AV10005DN Features

  • Max Resolution: 3648x2752 (10MP)
  • Image Sensor: 1/2.3" megapixel CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Motorized IR Cut Filter
  • Minimum Illumination: Color (non-binned): 0.6 Lux @ F1.4, Color (binned): 0.15 Lux @ F1.4, Day/Night: 0 Lux, IR sensitive
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Mount: CS-Mount
  • Focal Length: Dependent on selected lens, not included
  • Zoom: ePTZ
  • Iris: Dependent on selected lens, not included
  • Focus: Manual
  • Field of View: Dependent on selected lens, not included
  • Compression Styles: Dual Encoder H.264 (MPEG Part 10) and MJPEG (21 levels of quality)
  • Frame Rate: 6fps @ 3648x2752, 11fps @ 2944x1920, 13fps @ 2560x1600, 18fps @ 2048x1536, 27fps @ 1600x1200, 36fps @ 1280x1024; In Binned Mode: 30fps @ 1920x1080, 25fps @ 1824x1376, 41fps @ 1472x960, 54fps @ 1280x800, 57fps @ 1024x768, 60fps @ 800x600
  • WDR Technology: No
  • Image Settings: Flexoble cropping, Auto Exposure (AE) and Gain Control (AGC)>120dB, Auto backlight compensation, Auto multi-matrix white balance, 50/60Hz selectable flicker control, wlectronic pan, tilt, zoom (PTZ), Electronic image flip - 180 degree rotation, resolution windowing down to 32x32 pixels window, programmable shutter speed to help control motion blur. MoonLight™ mode - extended exposure and proprietary noise cancellation. Programmable resolution, brightness, saturation, gamma, sharpness, tint. Picture-in-Picture: simultaneous delivery of full field of view and zoomed images, bandwidth & storage savings by running at 1/4 resolution.
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: No
  • Alarm/Event Management: On-camera real-time motion detection with 64 detection zones
  • ONVIF: No
  • Security: N/A
  • Users: N/A
  • On-board Storage: No
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 3”W (76 mm) x 2.5”H (63.5 mm) x 2.25”D (57mm) (w/o lens)
  • Weight: 8.6 oz (243 grams) (w/o lens)
  • Operating Temperature: 0°C (32 °F) to +50°C (122 °F)
  • Operating Humidity: 0% to 90% (non-condensing)
  • Power: PoE 802.3af, 12–48V DC & 24V AC via terminal block / 5 Watts max
  • Warranty: 3 years
