Arecont Vision

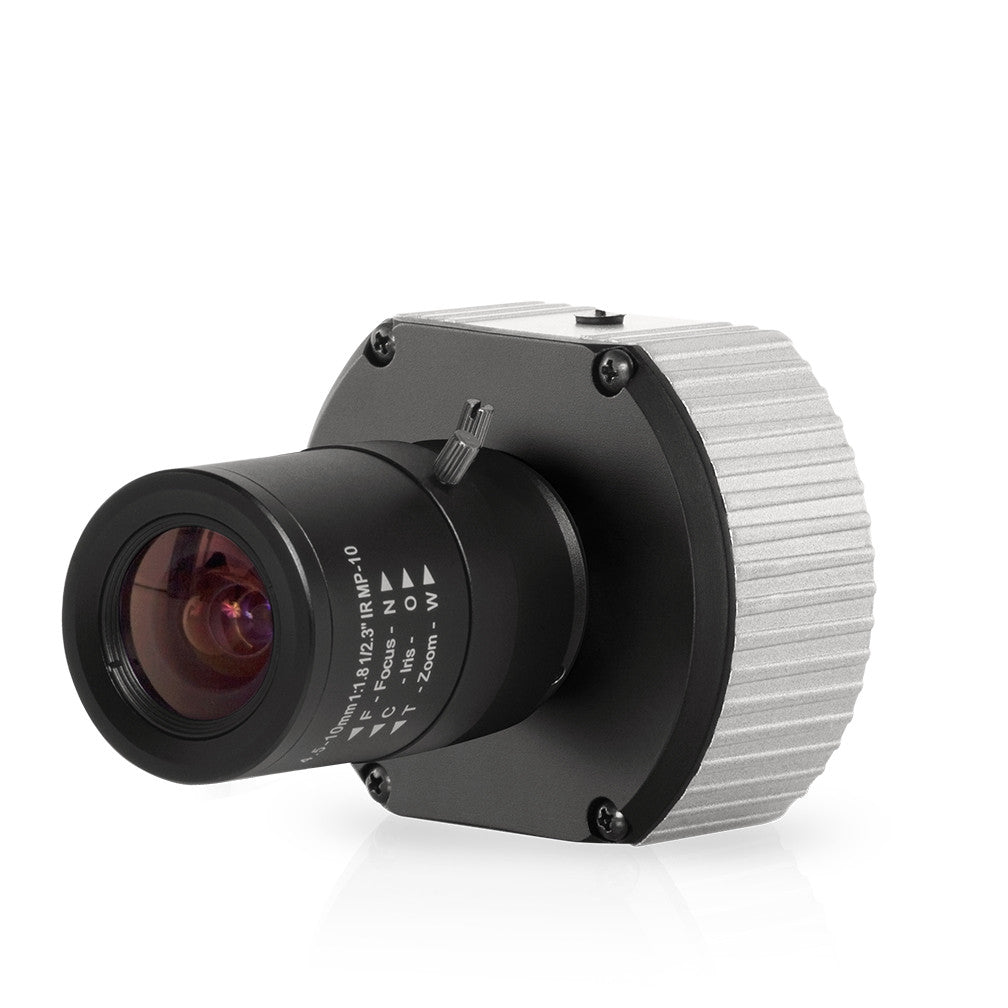

Arecont Vision AV10115DNv1 MegaVideo® Compact Camera
Arecont Vision AV10115DNv1 Features
- Max Resolution: 3648x2752
- Image Sensor: 1/2.3" CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Removable IR Cut Filter
- Minimum Illumination: Color (Non-Binning): 0.42 Lux @ F1.4, Color (Binning): 0.21 Lux @ F1.4, Day/Night: 0 Lux, IR sensitive
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Mount: CS Mount (C to CS lens adapter included with camera)
- Focal Length: Dependent on selected lens, not included
- Zoom: ePTZ
- Iris: Dependent on selected lens, not included
- Focus: Manual
- Field of View: Dependent on selected lens, not included
- Compression Styles: H.264 (MPEG4, Part 10) / Motion JPEG
- Frame Rate: 7fps @ 3648x2752, 12fps @ 2592x1944, 18fps @ 2048x1536, 26fps @ 1920x1080, 37fps @ 1280x1024; Binning Mode: 30fps @ 1920x1080, 25fps @ 1824x1376, 46fps @ 1296x972, 57fps @ 1024x768
- WDR Technology: No
- Image Settings: Binned mode, Flexible cropping, Low-light noise filter control, Bitrate and bandwith limitation control, Backlight compensation, Auto multi-matrix white balance, 50/60Hz selectable flicker control, Electronic pan, tilt, zoom (PTZ), Electronic image flip: 180° rotation, Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264, MoonLight™ Mode: extended exposure and noise cancellation, Programmable resolution, brightness, saturation, gamma, sharpness, tint, Simultaneous delivery of full field-of-view and zoomed images, Bandwidth and storage savings by running at 1/4 resolution
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: On-camera real-time motion detection with 1024 detection zones,
- ONVIF: No
- Security: N/A
- Users: N/A
- On-board Storage: No
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: None
- Dimensions: 3"H (76 mm) x 2.5"W (63.5 mm) x 1.25"D (31.7mm) (w/o lens)
- Weight: 5.8 oz (164 grams) (w/o lens)
- Operating Temperature: -5°C (23 °F) to +50°C (122 °F)
- Operating Humidity: 0% to 90% (non-condensing)
- Power: PoE 802.3af, 12–48V DC & 24V AC via terminal block / 5.4 Watts maximum
- Warranty: 3 Years
- What's Included: MegaVideo Compact Camera, Rubber gasket (preinstall on the camera), CD with AV100 software and user manuals (license key required for recording), C to CS lens adapter, 0.5mm lens spacer ring, 6-position external power & IO plug, 0.05” hex L-Key
