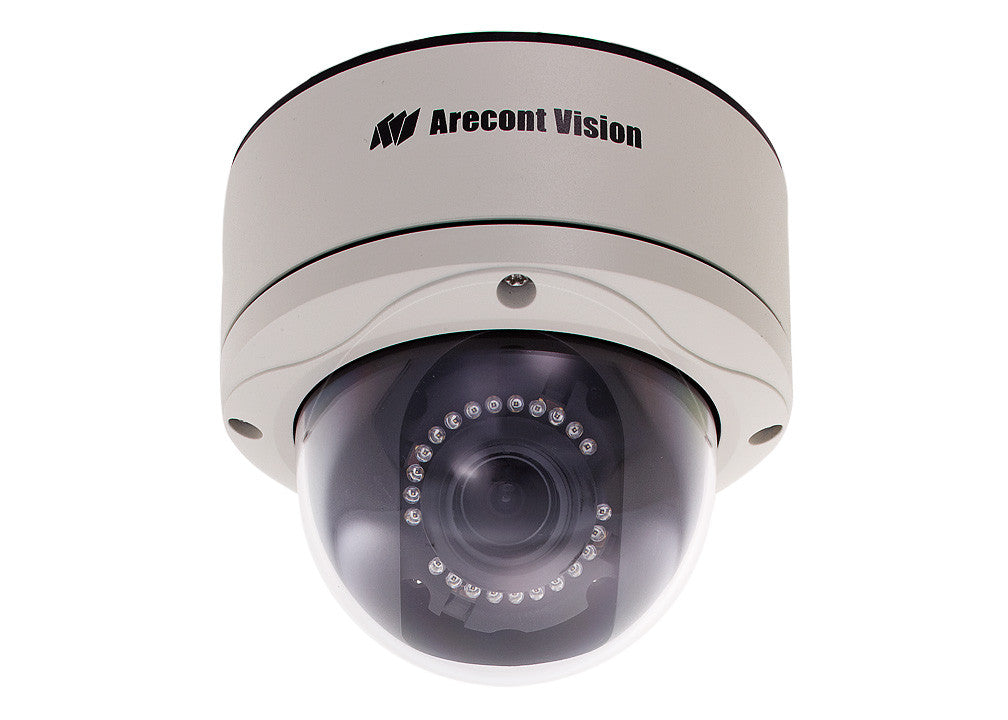

Arecont Vision AV10255AMIR MegaDome Fixed Indoor Network Camera
Arecont Vision AV10255AMIR MegaDome Fixed Indoor Network Camera

Arecont Vision

Arecont Vision AV10255AMIR MegaDome Fixed Indoor Network Camera

$1,150.00
Discontinued
SKU: AV10255AMIR

Contact

Discontinued.

Arecont Vision AV10255AMIR Features

  • Resolution: 3648 x 2752 to 1024 x 768
  • Image Sensor: 10 Megapixel effective CMOS
  • Sensor Size: 1/2.3" optical format 1.67 μm pixel pitch
  • Day/Night: Yes; 0 Lux, IR sensitive
  • Mechanical IR Cut Filter: YES
  • Minimum Illumination: Color (non-binned): 0.42 Lux @ f1.4; Color (binned): 0.21 Lux @ f1.4
  • IR Illuminators: 24 pcs 850nm LEDs
  • IR Illuminator Range: 15 meter IR distance (max) / 40° IR angle
  • Lens Type: 4.7-9mm, F2.8, remote focus, zoom and auto-iris lens
  • Focal Length: 4.7-9mm
  • Zoom: Remote
  • Iris: Auto
  • Focus: Remote
  • Field of View: 78.8° – 37° Horizontal Field of View
  • Compression Styles: H.264 (MPEG-4, Part 10)/Motion JPEG
  • Frame Rate: 7fps @ 3648x2752 to 54fps @ 1024x768
  • Image Settings: Programmable resolution, brightness, saturation, gamma, sharpness, and tint, Electronic pan, tilt, zoom (PTZ) and image flip – 180 degree rotation, MoonLight™ mode – extended exposure and proprietary noise cancellation, On-camera motion detection, Bit rate and bandwidth limitation control
  • Privacy Mask: YES with 1024 detection zones
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: YES
  • ONVIF: Yes
  • Security: On-camera motion detection
  • Users: N/A
  • On-board Storage: NO
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: Die-cast aluminum chassis with 4" polycarbonate dome bubble; IP66 weather proof standard; IP66 rated; Vandal Resistant, IK10 rated.
  • Dimensions: Ø5.5 x 4.9 in (H), bubble only: Ø4.0 x 2.4 in (H); Ø140.3 x 124.6mm (H), bubble only: Ø102 x 61.8mm (H)
  • Weight: 2.25 lbs (1.02kg)
  • Operating Temperature: Without heater:-20°C (-4°F) to +50°C (122°F); With heater:-40°C (-40°F) to +50°C (122°F)
  • Operating Humidity: 0-90% (non-condensing)
  • Power: Power over Ethernet (PoE) 802.3af; Auxiliary power 12-48V DC, 24V AC; 12.6 watts
  • Warranty: 3 Years
  • What's Included: N/A
  • Notes: Optional heater is model AV10255AMIR-H, please contact us for pricing.

Arecont Vision AV10255AMIR MegaDome® 2 Series Overview

The AV10255AMIR MegaDome® 2 series network camera is part of Arecont Vision’s full line of H.264 MegaDome® series cameras. This fully compliant implementation of H.264 (MPEG 4, Part 10) provides full 3648 x 2752 megapixel resolution at full video frame rates of 7fps. The AV10255AMIR also offers 1080P mode at 28fps featuring improved low-light performance. The AV10255AMIR camera line provides an all-in-one solution with integrated 10 megapixel camera, remote focus, remote zoom, auto iris lens, and IP66 and vandal resistant dome enclosure. With the features of binned mode, PSIA compliance, privacy masking, extended motion detection and flexible cropping, the AV10255AMIR is a high sensitivity, PoE (IEEE 802.3af) compliant camera with IR LEDs. Built with Arecont Vision’s massively-parallel MegaVideo® technology, this camera offers over four times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver the high quality megapixel imaging for both indoor and outdoor applications.
