Arecont Vision AV1145DN-3310-W
Arecont Vision AV1145DN-3310-W
Arecont Vision MegaBall® Housing Options: -D Flush Mount or Surface Mount (available in Black or Light Grey), and -W Ball Wall Mount

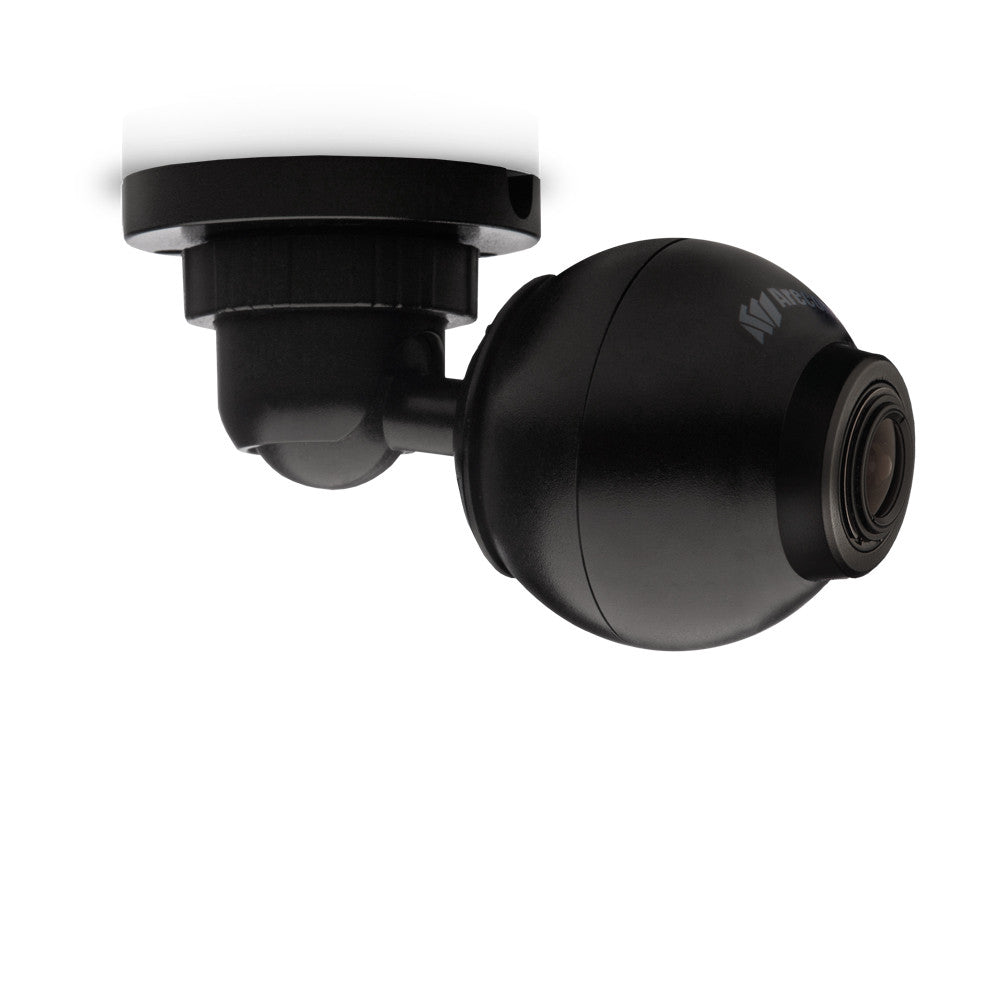

Arecont Vision AV1145DN-3310-W MegaBall® IP Network Camera

Arecont Vision

Arecont Vision AV1145DN-3310-W MegaBall® IP Network Camera

Sale price$460.00
Discontinued
SKU: AV1145DN-3310-W

Discontinued.

Arecont Vision AV1145DN-3310-W Features

  • Max Resolution: 1280 x 1024 (1.3MP)
  • Image Sensor: 1/2.7” optical format
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color (day mode): 0.1 Lux; B/W (night mode): 0 Lux, IR sensitive
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Varifocal
  • Focal Length: 3.3mm–10mm / F1.6
  • Zoom: No
  • Iris: Manual
  • Focus: Manual
  • Field of View: 62°-24° horizontal
  • Compression Styles: H.264 (MPEG-4, Part 10)/Motion JPEG (21 levels of quality)
  • Frame Rate: up to 42fps at 1280x1024
  • WDR Technology: No
  • Image Settings: Casino Mode™ maintains 30fps, Flexible Cropping (resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264), Low light noise filter control, Bit rate and bandwidth limitation control, Backlight compensation and multi-matrix white balance, Electronic pan, tilt, zoom (PTZ) and image flip 180°, 50/60Hz selectable flicker control, Programmable resolution, brightness, saturation, gamma, sharpness, tint, shutter speed
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: On-camera motion detection and privacy mask w/1024 detection zones
  • ONVIF: No
  • Security: N/A
  • Users: N/A
  • On-board Storage: No
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: Ø 3" (76.2mm) x 6.15" H (156.2mm)
  • Weight: 1.2lbs (0.54kg)
  • Operating Temperature: -5°C (23°F) to +50°C (140°F)
  • Operating Humidity: 0% to 90% (non-condensing)
  • Power: PoE 802.3af, Class 2, 12–48V DC & 24V AC via terminal block / 5.0 Watts max
  • Warranty: 3 years
  • What's Included: Camera, CD with AV100 software and user manuals (license key required for recording), Mounting template, Pack of three (3) wood screws and three (3) dry wall anchors, One double-sided hex key (fixed focal lens version only), Security L-Key

Arecont Vision AV1145DN-3310 Overview

The AV1145 MegaBall™ 1.3-megapixel network camera is part of Arecont Vision’s full line of H.264 MegaBall™ cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 1280 x 1024 megapixel resolution at full video frame rates of 42 frames per second (fps). The AV1145 camera line provides an all-in-one indoor 3" ball shape solution with integrated 1.3-megapixel camera, 4mm or 3.3-10mm IR corrected lens, wall mount or dome enclosure options. With the features of PSIA conformance, privacy masking, extended motion detection and flexible cropping, the AV1145 is a high sensitivity, PoE (IEEE 802.3af) compliant day/night camera with light gray dome option. Built with Arecont Vision’s massively-parallel MegaVideo® processing technology, this camera offers more than 4-times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging.
