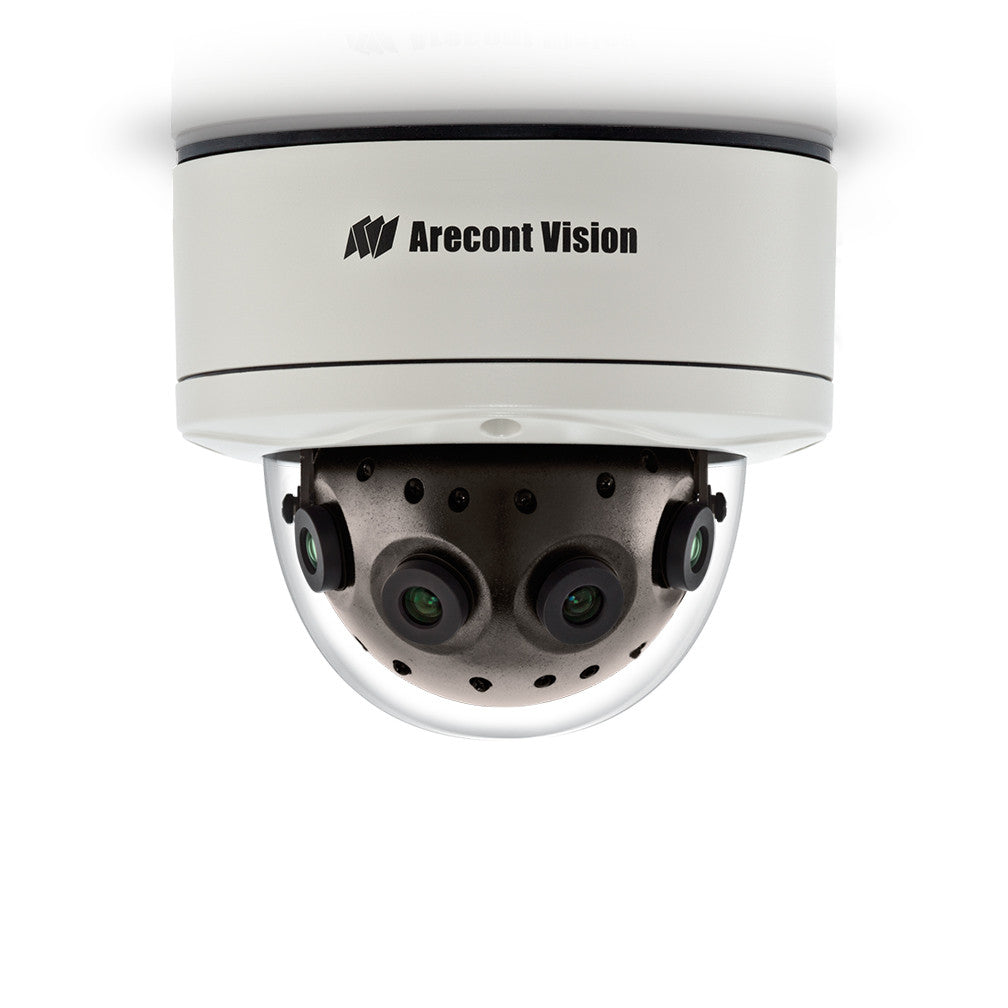

Arecont Vision AV12186DN 12MP 180° SurroundVideo® Camera

Arecont Vision AV12186DN Features

• Resolution: 12MP (4 x 3MP)
• Image Sensor: 1/3.2" CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Automatically removable infrared-cut filter
• Minimum Illumination: Color 0.5 Lux @ F2.0, Color Binning 0.25 Lux @ F2.0, Day/Night 0 Lux, IR sensitive
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: M12 Mount
• Focal Length: 5.4mm / F2.0
• Zoom: ePTZ
• Iris: N/A
• Focus: Manual
• Field of View: 180° view (horizontal), 47° per lens
• Compression Styles: H.264 (MPEG-4, Part 10)/Motion JPEG
• Frame Rate: 5.2fps (8192 x 1536), 16.7fps (4096 x 768)
• WDR Technology: Yes, up to 100dB at full resolution
• Image Settings: Auto adjustment between WDR and LDR modes, Binning Mode, Flexible Cropping (resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264), +/-5° Digital Vertical Alignment to adjust images, Auto multi-matrix white balance, 50/60Hz selectable flicker control, Electronic pan, tilt, zoom (PTZ), Programmable shutter speed to help control motion blur, MoonLight™ Mode: extended exposure and proprietary noise cancellation, Programmable resolution, brightness, saturation, gamma, sharpness, tint, Simultaneous delivery of full field-of-view and zoomed images, Bandwidth and storage savings by running at 1/4 resolution, Bit rate and bandwidth limit control
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: On-camera real-time motion detection and privacy mask with up to 1024 detection zones (per sensor)
• ONVIF: No
• Security: N/A
• Users: N/A
• On-board Storage: No
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 weather proof & IK10 vandal proof
• Dimensions: Ø 5.5" (140mm) x 4.9" H (125mm)
• Weight: 2.8lbs (1.27kg)
• Operating Temperature: -40°C (-40°F) to +50°C (122°F)
• Operating Humidity: 0 - 90% RH (non-condensing)
• Power/Consumption: PoE 802.3af Class 3; 12–48V DC & 24V AC via terminal block / 14W DC
• Warranty: 3 Year
• What's Included: Camera, Mounting template, 1.5mm Hex key, Security L-key, Power cable, I/O cable, pack of 4 wood screws & 4 drywall anchors

Arecont Vision AV12186DN Overview

The AV12186DN SurroundVideo® series network camera is WDR (wide dynamic range), dual encoder (H.264 & MJPEG), 12 Megapixel resolution, 180 degree panoramic Day/Night IP camera, designed to provide an all-in-one solution with integrated four 3 megapixel WDR sensors, four 5.4mm M12 lenses, IK-10 vandal resistant dome and housing, rated IP66 for water and dust protection. The AV12186DN is a PoE (IEEE 802.3af) compliant Day/Night camera, featuring WDR switch control, PSIA compliance, privacy masking, extended motion detection and flexible cropping. Built with Arecont Vision’s proprietary massively-parallel MegaVideo® technology, the AV12186DN has the ability to output multiple image formats allowing the simultaneous viewing of the full resolution field of view and regions of interest for high definition forensic zooming. Binning technique improves low-light performance, increases sensitivity and produces better SNR by combining and averaging pixels. This camera offers over ten times the resolution of standard resolution IP cameras with the ability to output full real time frame rates.
