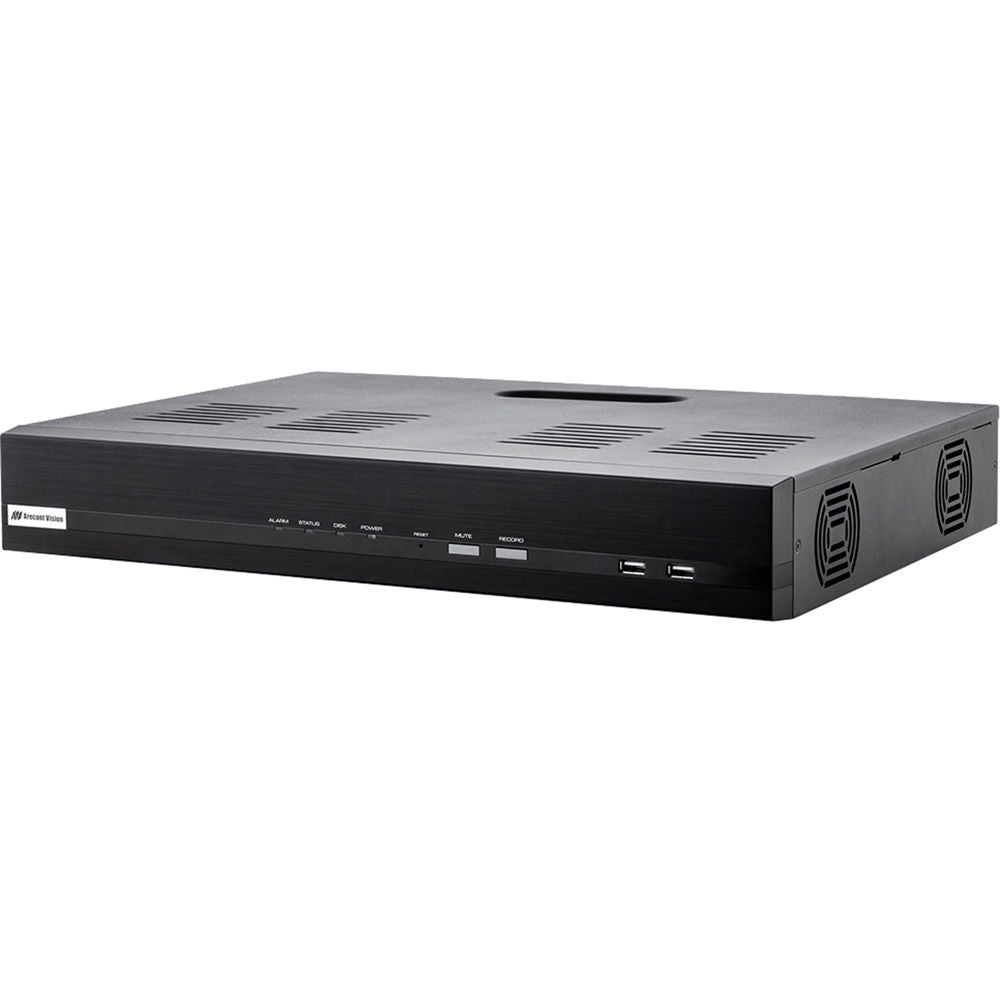

Arecont Vision AV1600 16 Channel PoE Network Video Recorder

Arecont Vision AV1600 Features

• 3 Different Hard Drive Configurations:
  AV1600-0T2: 0 HD pre-installed, 2 open HD bays
  AV1600-4T1: 4TB HD pre-installed (1 x 4TB), 1 open HD bay
  AV1600-8T0: 8TB HD pre-installed (2 x 4TB), 0 open HD bays
• Video Inputs 16 Channels
• Decoding Format H.265/H.264/MJPEG
• Recording Bandwidth 160Mbps
• Resolution 5MP (Up to 8 channels only), 3MP, 1080p, 1.2MP, 720p, D1, CIF, QCIF
• Live View / Playback Capability 1080p x 16@480fps, 3MP x 16@320fps, 5MP x 8@192fps
• 16 independent 100 Mbps PoE network interfaces, Max 20W for single port, Max 200W in total, Up to IEEE 802.3at/20W per channel
• Ideal for Small-to-Medium Size Installations
• Works with Arecont Vision Brand Single and Multi-Sensor Cameras
• Up to 16 Channels (The Number of Sensors in a Camera = The Number of Channels on the NVR)
  Example: 4x Arecont Vision 5MP MicroDome Single Sensor Cameras (4 Channels) + 3x Arecont Vision 12MP SurroundVideo Omni (12 Channels) = 16 Channels
  Example: 8x Arecont Vision 3MP MegaDome 2 Cameras (8 Channels) + 8x Arecont Vision 5MP MegaView 2 (8 Channels) = 16 Channels
• Smart Plug-and-Play makes Camera Setup and Configuration Easy with Auto Discover and Auto Configuration
• 2 x Customer Replaceable SATA Hard Disk Drive Storage Bays for Internal Storage (6TB eaach, up to 12TB)
• Up to 5MP Resolution Recording
• H.265, H.264, MPEG4, and MJPEG Compression
• SNAPstream™ (Smart Noise Adaptation and Processing) Technology Support
• Free NVR Viewer Mobile App for Remote Viewing and Playback (Available on the Apple and Android App Stores)
• Power Status Utility
• Instant Playback

Arecont Vision AV1600 Overview

The Arecont Vision® AV NVR is a stand-alone network video recorder with a built in 8- or 16- channel PoE switch. The AV NVR features a custom designed user interface with user-friendly features such as instant playback, power status monitoring, mobile apps for remote viewing and playback, and plug-and-play support for all Arecont Vision cameras. When coupled with Arecont Vision’s industry leading camera technology, the AV NVR provides a cost-effective and easy-to-use solution for small to medium sized installations.
