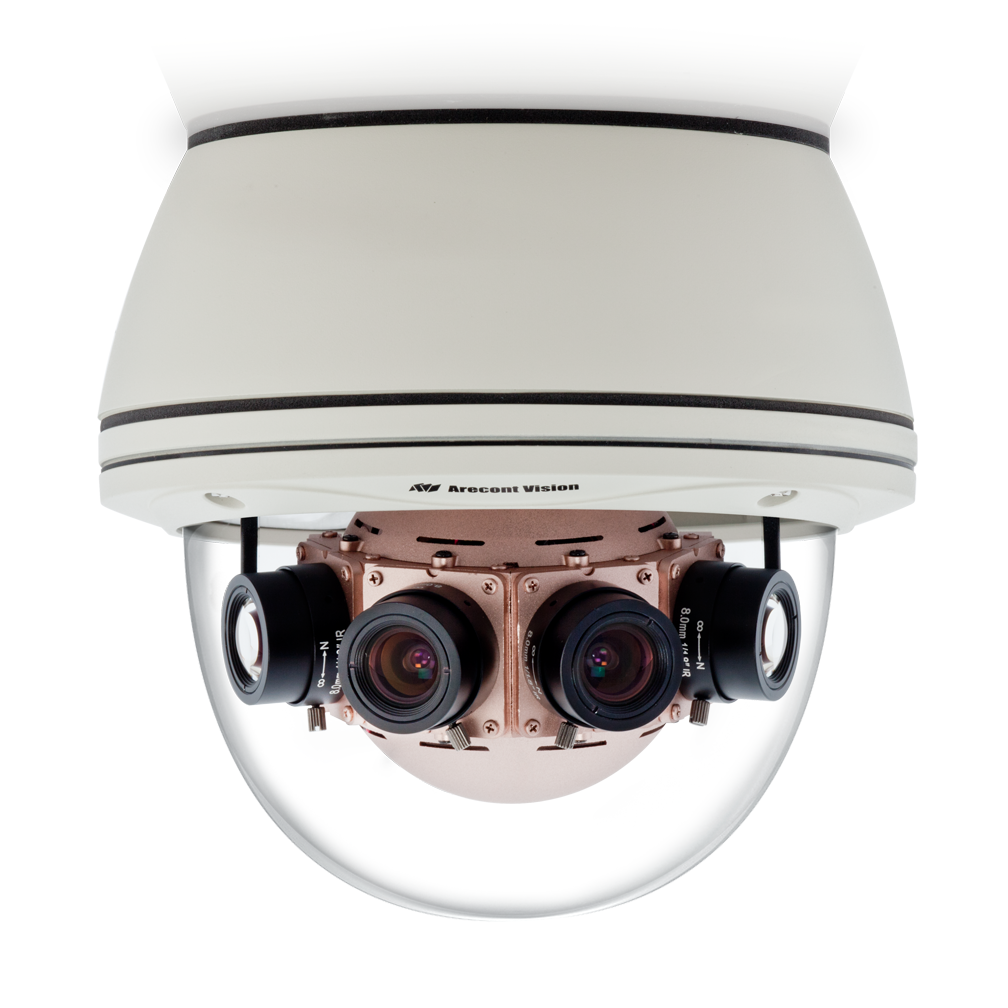

Arecont Vision AV20185DN 20MP 180° SurroundVideo® Camera
Arecont Vision AV20185DN Features
- Resolution: 20MP (4 x 5MP)
- Image Sensor: 1/2.5" CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Automatically removable infrared-cut filter
- Minimum Illumination: Color: 0.1 lux; B/W: 0 lux, IR sensitive
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: CS Mount
- Focal Length: 6.2mm / F1.8
- Zoom: ePTZ
- Iris: N/A
- Focus: Manual
- Field of View: 180° view (horizontal), 47° per lens
- Compression Styles: H.264 (MPEG-4, Part 10)/Motion JPEG
- Frame Rate: 3.5fps @ 10240x1920, 4.2fps @ 10240x1600
- WDR Technology: Yes
- Image Settings: Pixel Binning Mode (20 and 40MP); Flexible Cropping (resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264); Low light noise filter control; Bit rate and bandwidth limitation control; Backlight compensation and auto multi-matrix white balance; 50/60Hz selectable flicker control; Image flip 180°; Programmable resolution, brightness, saturation, gamma, sharpness, tint; Bandwidth and storage savings by running at 1/4 resolution; Simultaneous delivery of full field-of-view and zoomed image; Programmable shutter speed to help control motion blur
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: On-camera real-time motion detection and privacy mask with up to 1024 detection zones (per sensor);
- ONVIF: No
- Security: N/A
- Users: N/A
- On-board Storage: No
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66 weather proof & IK10 vandal proof
- Dimensions: Ø175.3mm (W) x 166.3mm (H) (6.9" x 6.55")
- Weight: 3.81 lbs (1.75kg)
- Operating Temperature: 0°C (32°F) to +50°C (122°F)
- Operating Humidity: 0 - 90% RH (non-condensing)
- Power/Consumption: PoE 802.3af Class 3; 12–48V DC & 24V AC via terminal block / 9W DC
- Warranty: 3 Year
- What's Included: Camera, Mounting template, RJ45 female to female coupler, Hex key, Security L-key, Pack of 4 wood screws & 4 drywall anchors
Arecont Vision AV20185DN Overview
SurroundVideo® panoramic view megapixel IP cameras provide all-in-one solutions for wide area video surveillance. Four sensors and lenses are housed in an outdoor-rated IP66 and IK-10 impact-resistant dome enclosure. The cameras are available in 180° and 360° configurations and resolutions of 8-, 20- and 40-megapixels (MP). A single SurroundVideo® panoramic camera can replace multiple conventional cameras with the ability to zoom into multiple regions of interest. Their return on investment is easily measured any way you view it.
