Arecont Vision AV20585DN

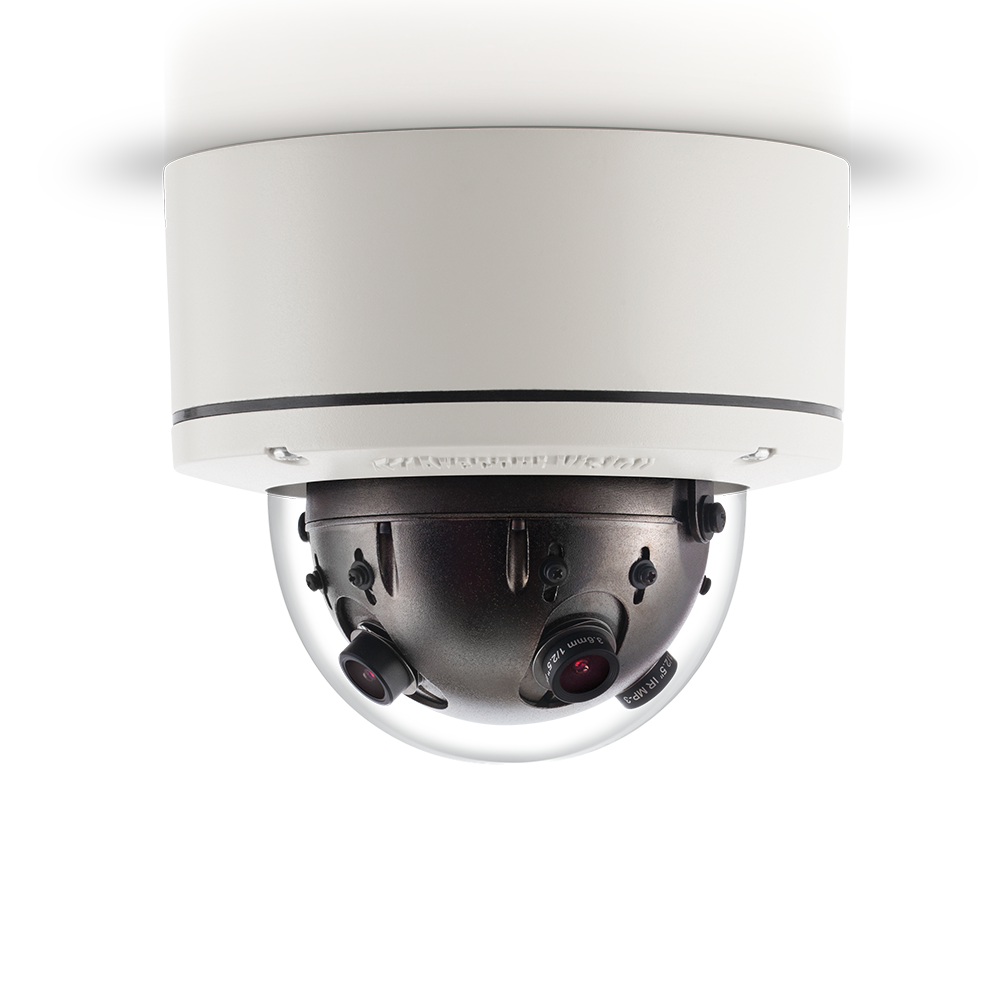

Arecont Vision AV20585DN 20MP 180° SurroundVideo® G5 Mini Dome Camera

Arecont Vision

Arecont Vision AV20585DN 20MP 180° SurroundVideo® G5 Mini Dome Camera

$1,367.00
Discontinued
SKU: ARV-AV20585DN

Contact

Arecont Vision AV20585DN Features

  • Resolution: 20MP = 5MP x 4
  • Image Sensor: 1/2.5" Progressive Scan
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Automatically removable infrared-cut filter
  • Minimum Illumination: Color 0.3 Lux Lux @ F2.0, Color Binning 0.15 Lux @ F2.0, Day/Night 0.03 Lux, IR sensitive
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: M12 Mount
  • Focal Length: 6.7mm / F2.0
  • Zoom: ePTZ
  • Iris: N/A
  • Focus: Manual
  • Field of View: 180° view (horizontal), 47° per lens
  • Compression Styles: H.264 (MPEG-4, Part 10)/Motion JPEG
  • Max Frame Rate: 7fps (10240 x 1920)
  • WDR Technology: Yes, up to 100dB at full resolution
  • Image Settings: Optics, Programmable Shutter Speed, Motion Detection, MoonLight Mode, Flexible Cropping, Backlight Compensation, Flicker Control, Image Alignment, Wide Dynamic Range, Noise Reduction, Efficiency, Sharpness, Programmable resolution, brightness, saturation, gamma, tint, Electronic pan, tilt, zoom (PTZ), Simultaneous delivery of full field-of-view and zoomed images
  • Privacy Mask: Yes, Real-time, privacy mask, 1024 detection zones per sensor
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: On-camera real-time motion detection and privacy mask with up to 1024 detection zones (per sensor)
  • ONVIF: Yes
  • Security: N/A
  • Users: N/A
  • On-board Storage: No
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 weather proof & IK10 vandal proof
  • Dimensions: Ø 5.77" (146.7mm) x 5" H (128mm)
  • Weight: 3.0lbs (1.36kg)
  • Operating Temperature: -40°C (-40°F) to +60°C (140°F)
  • Operating Humidity: 0 - 90% RH (non-condensing)
  • Power/Consumption: PoE 802.3af Class 3; 18–48V DC and 24V AC; 12.1 Watts Max DC Power
  • Warranty: 3 Year
  • What's Included: Arecont Vision SurroundVideo G5 Mini camera & Dome Cover, Mounting Plate, Grommet with Through Hole, Grommet without Through Hole, Insertion Tool, #6-32 1.0” Wood/ Metal Sheet Screw, #6-32 1.0” Drywall/ Masonry Mounting Anchors, #8-32 0.5” Machine Screw, Security L-key, Mounting Template, I/O cable, AC & DC auxiliary power cable & CD with Manual and Software

Arecont Vision AV20585DN Overview

The SurroundVideo® G5 Mini is an H.264 all-in-one total PoE panoramic IP camera solution available in 12 megapixel (MP) or 20MP resolutions and 180° or 360° configurations. Wide Dynamic Range (WDR) is optional on 12MP models, featuring a dynamic range of up to 100dB at full resolution. With a dual encoder (H.264 and MJPEG), an impact-resistant dome, and a size roughly 50% smaller than previous SurroundVideo models, the 360° Panoramic SurroundVideo G5 Mini delivers excellent performance and versatility. Additionally, the SurroundVideo G5 Mini has faster frame rates than ever before. A SurroundVideo camera can replace multiple fixed or PTZ cameras by recording the entire panoramic field of view with the ability to zoom into multiple regions of interest—a return on investment that’s easily measured.
