Arecont Vision AV2146-3310-W
Arecont Vision AV2146-3310-W

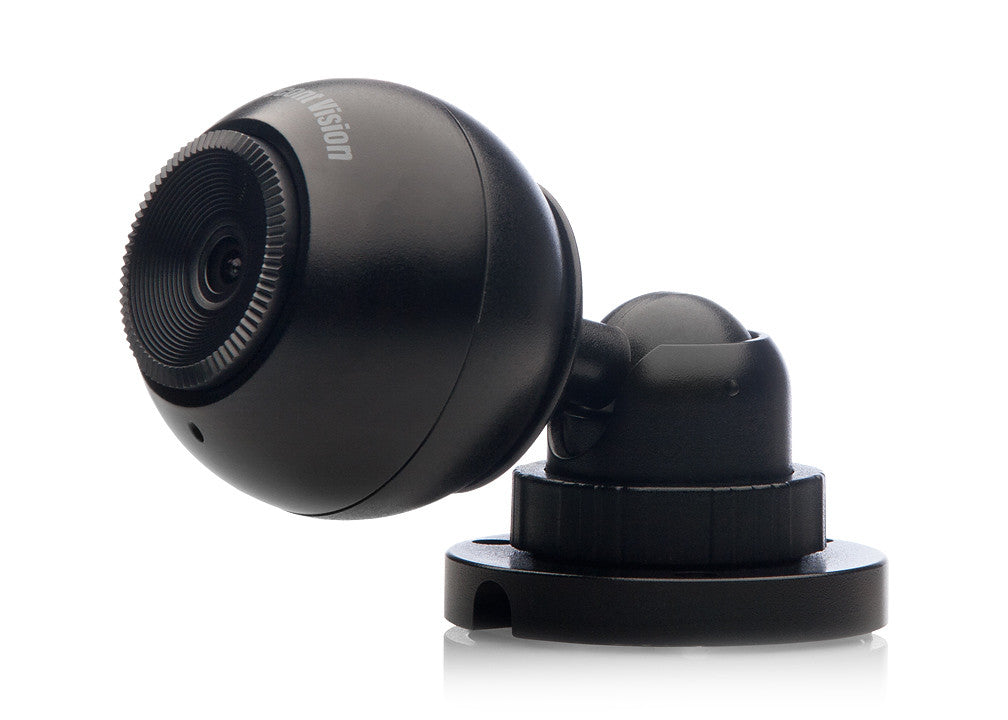

Arecont Vision MegaBall® Housing Options: -D Flush Mount or Surface Mount (available in Black or Light Grey), and -W Ball Wall Mount
Arecont Vision AV2146DN-3310-W MegaBall® IP Network Camera

Arecont Vision

Arecont Vision AV2146DN-3310-W MegaBall® IP Network Camera

$510.00
Discontinued
SKU: AV2146DN-3310-W

Contact

Discontinued.

Arecont Vision AV2146DN-3310-W Features

  • Max Resolution: 1920 x 1080 (2.07 MP)
  • Image Sensor: 1/3.2" Megapixel CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color (day mode): 0.3 Lux; B/W (night mode): 0 Lux, IR sensitive
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Varifocal
  • Focal Length: 3.3mm–10mm / F1.6
  • Zoom: No
  • Iris: N/A
  • Focus: Manual
  • Field of View: 68°-26° horizon
  • Compression Styles: H.264 (MPEG-4, Part 10)/Motion JPEG (21 levels of quality)
  • Frame Rate: up to 31fps @ 1920 x 1080
  • WDR Technology: Yes, up to 100dB
  • Image Settings: Auto adjustment between WDR and LDR models, Flexible Cropping (resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264), Low light noise filter control, Bit rate and bandwidth limitation control, Backlight compensation and multi-matrix white balance, Electronic pan, tilt, zoom (PTZ) and image flip 180°, 50/60Hz selectable flicker control, Programmable resolution, brightness, saturation, gamma, sharpness, tint, shutter speed
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: On-camera motion detection and privacy mask w/1024 detection zones
  • ONVIF: No
  • Security: N/A
  • Users: N/A
  • On-board Storage: No
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: Ø 3" (76.2mm) x 6.15" H (156.2mm)
  • Weight: 1.2lbs (0.54kg)
  • Operating Temperature: -5°C (23°F) to +50°C (140°F)
  • Operating Humidity: 0% to 90% (non-condensing)
  • Power: PoE 802.3af, Class 2, 12–48V DC & 24V AC via terminal block / 5.0 Watts max
  • Warranty: 3 years
  • What's Included: Camera, CD with AV100 software and user manuals (license key required for recording), Mounting template, Pack of three (3) wood screws and three (3) dry wall anchors, One double-sided hex key (fixed focal lens version only), Security L-Key

Arecont Vision AV2146DN-3310 Overview

The AV2146 MegaBall™ full HD 1080p WDR network camera is part of Arecont Vision’s full line of H.264 MegaBall™ cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 1920 x 1080 megapixel resolution at full video frame rates of 30 frames per second (fps). The AV2146 dome camera line provides an all-in-one indoor 3" ball shape solution with integrated 1080p WDR full HD camera, 4mm or 3.3-10mm IR corrected lens options. With the features of PSIA conformance, privacy masking, extended motion detection and flexible cropping, the AV2146 is a high sensitivity, PoE (IEEE 802.3af) compliant, day/night light gray dome camera. Built with Arecont Vision’s massively-parallel MegaVideo® processing technology, this camera offers more than 6-times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging.
