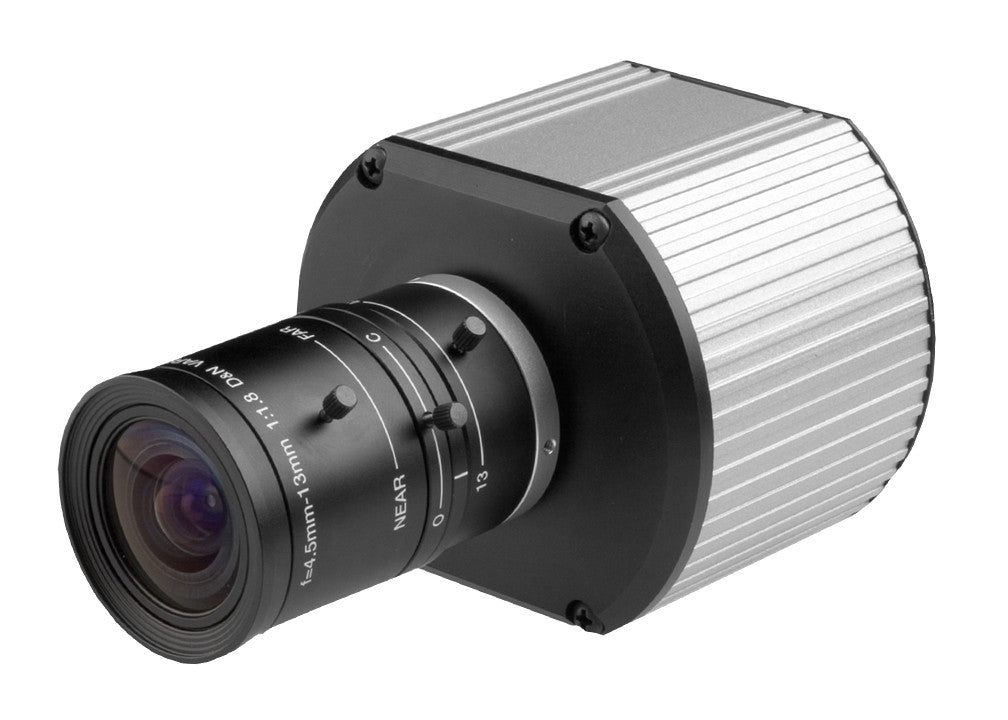

Arecont Vision AV3100 MegaVideo Series Fixed Indoor Network Camera
Discontinued.
Arecont Vision AV3100 MegaVideo® Series Network Camera Features
- Resolution: 2048 x 1536
- Image Sensor: 3 Megapixel CMOS
- Day/Night: No
- Mechanical IR Cut Filter: No, Only on the AV3100DN
- Minimum Illumination: Color: 0.1 Lux @ F1.4; Day/Night: 0 Lux, IR sensitive
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Options: MPL4-10, MPL8-10, MPL4.0 MPL6.0, MPL8.0 LENS4-13, LENS4-10AI
- Focal Length: Provided with lens option
- Zoom: Forensic
- Iris: Manual
- Focus: Manual
- Field of View: N/A
- Compression Styles: Motion JPEG with 21 levels of quality
- Frame Rate: 15fps @ 2048x1536 to 32fps @ 1280x1024
- Image Settings: Auto backlight compensation, Auto multi-matrix white balance, 50/60Hz selectable flicker control, wlectronic pan, tilt, zoom (PTZ), Electronic image flip - 180 degree rotation, resolution windowing down to 32x32 pixels window, programmable shutter speed to help control motion blur. MoonLight™ mode - extended exposure and proprietary noise cancellation. Programmable resolution, brightness, saturation, gamma, sharpness, tint. Picture-in-Picture: simultaneous delivery of full field of view and zoomed images, bandwidth & storage savings by running at 1/4 resolution.
- Privacy Mask: No
- Built-in Microphone: No
- Audio Capabilities: No
- Alarm/Event Management: No
- ONVIF: No
- Users: N/A
- On-board Storage: No
- Indoor/Outdoor: Indoor
- Dimensions: 3"W (76 mm) x 2.5"H (63.5 mm) x 2.25"D (57mm) (w/o lens)
- Weight: 8.6 oz (243 grams) (w/o lens)
- Operating Temperature: 0°C (32 °F) to +50°C (122 °F)
- Operating Humidity: 0% to 90% (non condensing)
- Power: Power over Ethernet (PoE): PoE 802.3af; DC input: auxiliary 15V-48V DC; Power consumption 3 Watts maximum; Optional DC AI connection (AV1300 - AI)
- Warranty: 3 Years
Arecont Vision AV3100 MegaVideo® Series Network Camera Overview
AV3 100 Series network camera delivers full motion progressive scan 2048 x 1536 video at 15 fps featuring massively-parallel MegaVideo® image processing architecture capable of sustaining over 6 billion operations per second.
