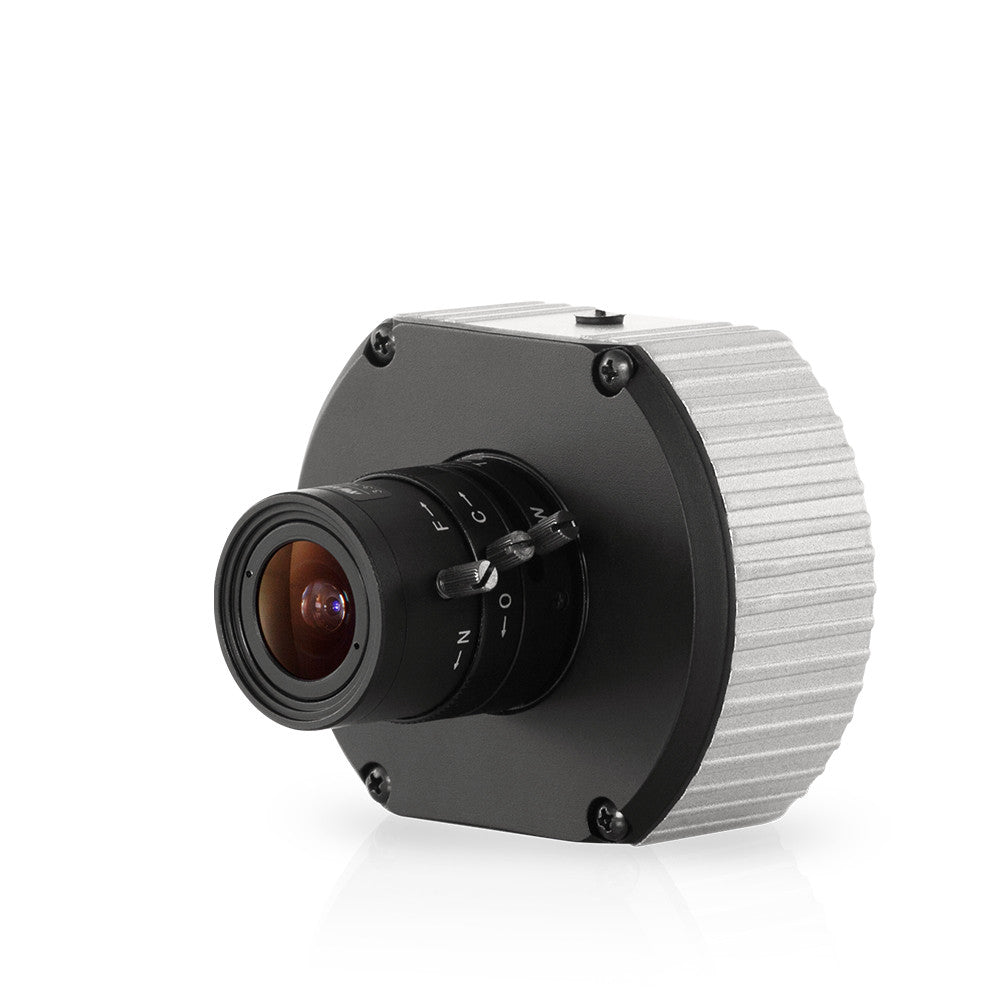

Arecont Vision AV3116DNv1 MegaVideo® Compact Camera
Arecont Vision AV3116DNv1 Features
- Max Resolution: 2048x1536 (3MP)
- Image Sensor: 1/3.2" CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Removable IR Cut Filter
- Minimum Illumination: Color (non-binned): 0.3 Lux @ F1.4, Color (binned): 0.15 Lux @ F1.4, Day/Night: 0 Lux, IR sensitive
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Mount: CS Mount (C to CS lens adapter included with camera)
- Focal Length: Dependent on selected lens, not included
- Zoom: ePTZ
- Iris: Dependent on selected lens, not included
- Focus: Manual
- Field of View: Dependent on selected lens, not included
- Compression Styles: H.264 (MPEG4, Part 10) / Motion JPEG
- Frame Rate: 21fps @ 2048x1536, 31fps @ 1600x1200, 30fps @ 1920x1080, 41fps @ 1280x1024; Binned Mode: 21fps @ 1024x768, 27fps @ 800x600, 31fps @ 860x540, 32fps @ 640x512
- WDR Technology: Yes, up to 100dB
- Image Settings: Binned Mode, Flexible cropping, Auto backlight compensation, Auto multi-matrix white balance, 50/60Hz selectable flicker control, Electronic pan, tilt, zoom (PTZ), Electronic image flip - 180 degree rotation, Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264, Programmable shutter speed to help control motion blur, MoonLight™ mode - extended exposure and proprietary noise cancellation, Programmable resolution, brightness, saturation, gamma, sharpness, tint, Simultaneous delivery of full field of view and zoomed images, Bandwidth & storage savings by running at 1/4 resolution, Bit rate and bandwith limitation control
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: On-camera real-time motion detection with 1024 detection zones,
- ONVIF: Yes
- Security: N/A
- Users: N/A
- On-board Storage: No
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: None
- Dimensions: 3"H (76 mm) x 2.5"W (63.5 mm) x 1.25"D (31.7mm) (w/o lens)
- Weight: 5.8 oz (164 grams) (w/o lens)
- Operating Temperature: -5°C (23 °F) to +50°C (122 °F)
- Operating Humidity: 0% to 90% (non-condensing)
- Power: PoE 802.3af, 12–48V DC & 24V AC via terminal block / 5.43 Watts maximum
- Warranty: 3 Year
- What's Included: MegaVideo Compact Camera, Rubber gasket (preinstall on the camera), CD with AV100 software and user manuals (license key required for recording), C to CS lens adapter, 0.5mm lens spacer ring, 6-position external power & IO plug, 0.05” hex L-Key
Arecont Vision AV3116DNv1 Overview
The AV3116DN compact series camera is WDR (wide dynamic range), dual encoder (H.264 & MJPEG), 3.0 Megapixel resolution, IP addressable camera, designed to deliver full motion high definition progressive scan digital video across local area networks in a compact package. With the features of WDR switch control, PSIA compliance, privacy masking, extended motion detection and flexible cropping, the AV3116DN is a high sensitivity, PoE (IEEE 802.3af) compliant camera with color, Day/Night. Built with Arecont Vision’s proprietary massively-parallel MegaVideo® technology, the AV3116DN has the ability to output multiple image formats allowing the simultaneous viewing of the full resolution field of view and regions of interest for high definition forensic zooming. Binning technique improves low-light performance, increases sensitivity and produces better SNR by combining and averaging pixels. This camera offers over ten times the resolution of standard resolution IP cameras with the ability to output full real time frame rates.
