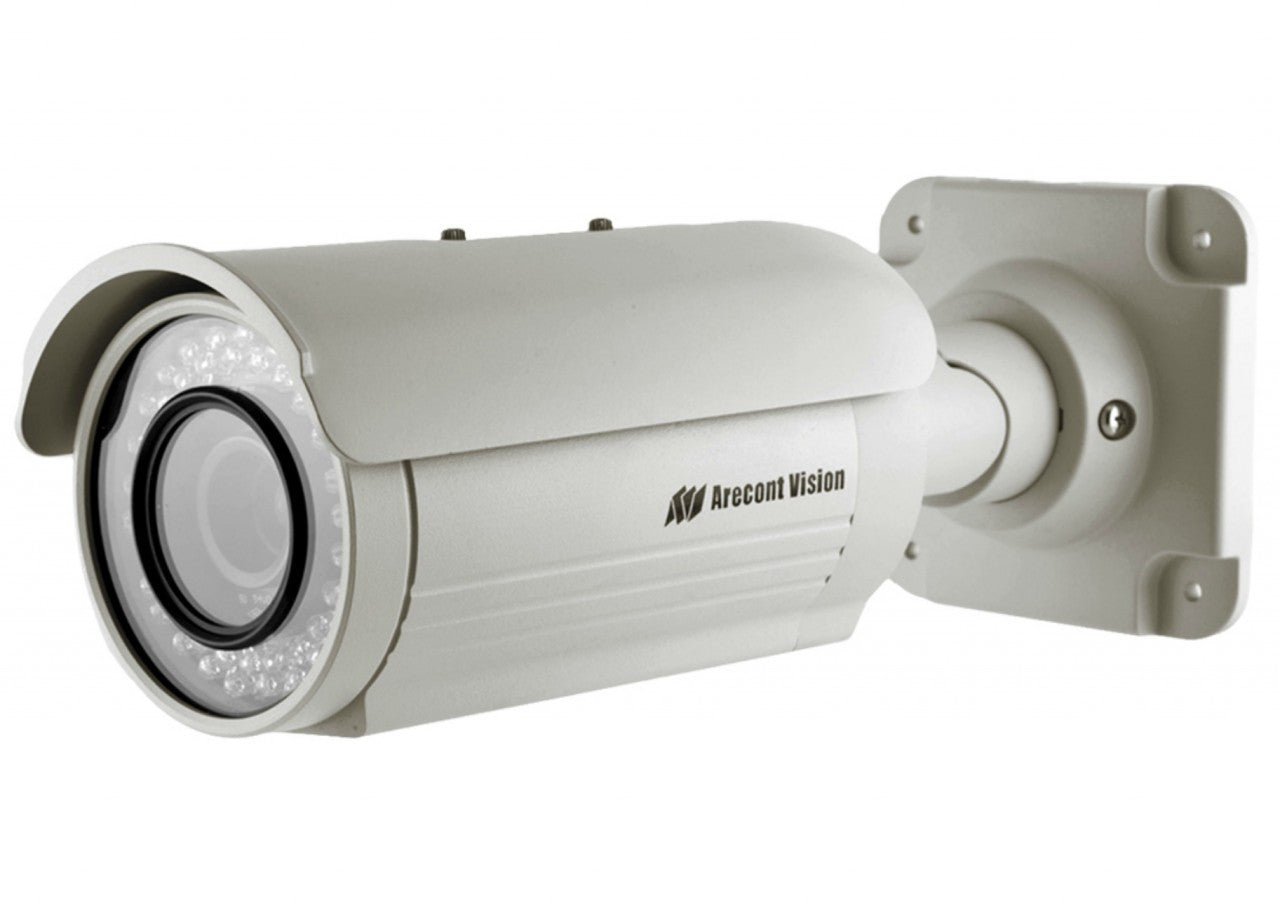

Arecont Vision AV3125IR MegaView™ Camera

Arecont Vision AV3125IR MegaView™ Camera

• Resolution: 1920(H) x 1080(V)
• Image Sensor: 3 megapixel CMOS
• Day/Night: No
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color(non-binned): 0.3 Lux @ F1.4, Color(binned): 0.15 Lux @ F1.4, Day/Night: 0 Lux, IR sensitive
• IR Illuminators: Yes, 48 pcs 850nm LEDs
• IR Illuminator Range: 25 meters
• Lens Type: Megapixel Varifocal Lens
• Focal Length: 4.5-10mm
• Zoom: External Adjustment
• Iris: External Adjustment
• Focus: External Adjustment
• Compression Styles: H.264 (MPEG Part 10) Compression Standard
• Frame Rate: 21 fps
• Image Settings: Auto backlight compensation, Auto multi-matrix white balance, 50/60Hz selectable flicker control, Electronic pan, tilt, zoom (PTZ), Electronic image flip - 180 degree rotation, Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264, Programmable shutter speed to help control motion blur, MoonLight™ mode - extended exposure and proprietary noise cancellation, Programmable resolution, brightness, saturation, gamma, sharpness, tint, Picture-in-Picture: simultaneous delivery of full field of view and zoomed images, Bandwidth & storage savings by running at 1/4 resolution
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: N/A
• Alarm/Event Management: On-camera real-time motion detection with 1024 detection zones
• ONVIF: No
• Security: Privacy mask, Flexible cropping, Auto Exposure (AE) and Gain Control (AGC) >120dB
• Users: N/A
• On-board Storage: No
• Indoor/Outdoor: Yes
• Housing/Enclosure Rating: IP66 and vandal resistant housing
• Dimensions: 4”H (102mm) x 4.3”W (111mm) x 11.5”D (293mm)
• Weight: 3.74lbs (1.69kg)
• Operating Temperature: -40°C (-40 °F) to + 50°C (122 °F)
• Operating Humidity: 0% to 90% (non-condensing)
• Power: PoE 802.3af for camera, Auxiliary power 12-48V DC, 24V AC for camera, 5.5 Watts maximum
• Warranty: 1 Year
• Notes: Day/Night Lens provided in AV3125DN
