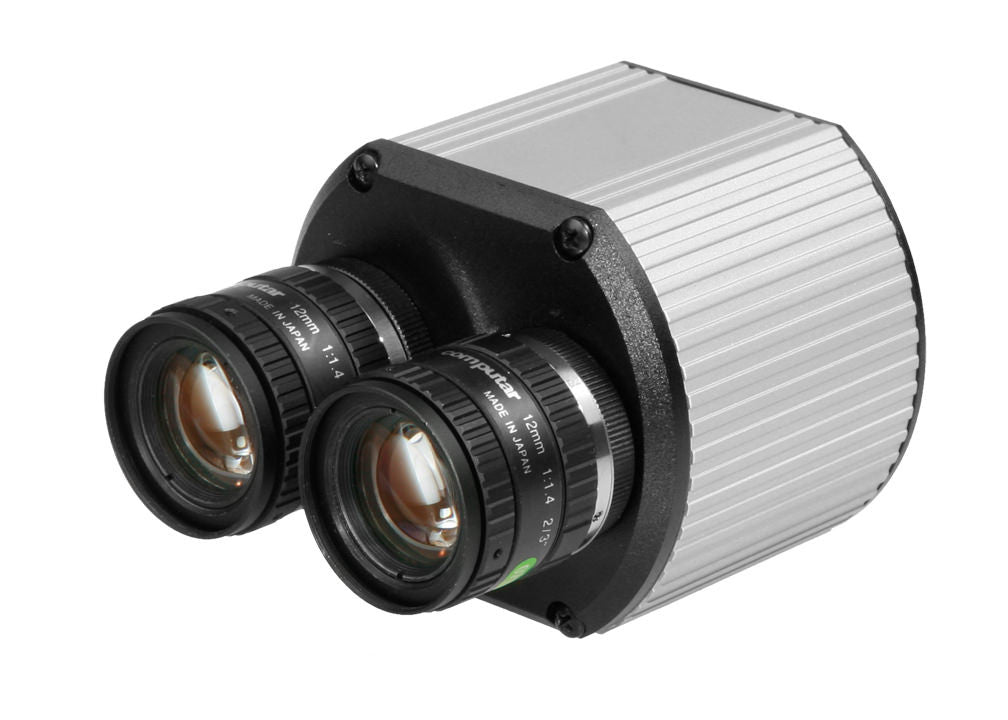

Arecont Vision AV3135 MegaVideo® IP Network Camera

Arecont Vision AV3135 Features

• Max Resolution: 2048x1536 (3MP Color) & 1280x1024 (1.3MP B/W)
• Image Sensor: 1/2" CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: Color: 0.2 Lux @ F1.4, B/W: 0 Lux, IR sensitive
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Mount: CS Mount
• Focal Length: Dependent on selected lens, not included
• Zoom: ePTZ
• Iris: Dependent on selected lens, not included
• Focus: Manual
• Field of View: Dependent on selected lens, not included
• Compression Styles: H.264 (MPEG4, Part 10) / Motion JPEG
• Max Frame Rate: 15 fps @ 2048x1536, 20 fps @ 1920x1200, 22 fps @ 1920x1080, 24 fps @ 1600x1200, 32 fps @ 1280x1024
• WDR Technology: No
• Image Settings: Auto Exposure (AE) and Gain Control (AGC) >120dB, Auto backlight compensation, Auto multi-matrix white balance, 50/60Hz selectable flicker control, Electronic pan, tilt, zoom (PTZ), Electronic image rotation - 180˚ flip, Resolution Windowing Down to 32x32 Pixels Window, Programmable shutter to minimize motion blurring for low-light mode, MoonLight™ mode - extended exposure and proprietary noise cancellation, Programmable resolution, brightness, saturation, gamma, sharpness, tint, Picture-in-Picture: simultaneous delivery of full field of view and zoomed Images, Bandwidth & storage savings by running at 1/4 resolution
• Privacy Mask: No
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: On-camera motion detection with 64 detection zones
• ONVIF: No
• Security: N/A
• Users: N/A
• On-board Storage: No
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: 3"H (76 mm) x 2.5"W (63.5 mm) x 2.25"D (31.7mm) (w/o lens)
• Weight: 8.6 oz (243 grams) (w/o lens)
• Operating Temperature: -5°C (23 °F) to +50°C (122 °F)
• Operating Humidity: 0% to 90% (non-condensing)
• Power: PoE 802.3af, 12–48V DC & 24V AC via terminal block / 4 Watts maximum
• Warranty: 3 Years

Arecont Vision AV3135 Overview

AV3135 network camera is a unique dual sensor Day/Night camera solution and is a part of Arecont Vision’s full line of H.264 megapixel cameras. This full motion progressive scan camera delivers up to 15fps in color (3MP) mode and 32fps in B&W (1.3MP) mode. Using massively-parallel MegaVideo image processing architecture, AV3135 is capable of sustaining over 80 billion operations per second with unparalleled resolution performance and value. Part of the MegaVideo line of cameras, it offers bandwidth and storage efficiency of 10X greater on average over traditional megapixel counterparts.
