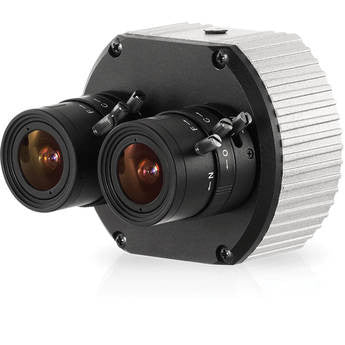

Arecont Vision AV3236DN MegaVideo® Compact Camera
Arecont Vision AV3236DN Features
- Max Resolution: 2048x1536 (3MP Color) & 1280x960 (1.2MP B/W)
- Image Sensor: 1/2.5" CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Removable IR Cut Filter
- Minimum Illumination: Color: 0.2 Lux @ F1.4, Day/Night: 0 Lux, IR sensitive
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Mount: CS Mount (C to CS lens adapter included with camera)
- Focal Length: Dependent on selected lens, not included
- Zoom: ePTZ
- Iris: Dependent on selected lens, not included
- Focus: Manual
- Field of View: Dependent on selected lens, not included
- Compression Styles: H.264 (MPEG4, Part 10) / Motion JPEG
- Max Frame Rate: 18fps @ 2048x1536 (3MP sensor); 40fps @ 1280x960 (1.2MP)
- WDR Technology: Yes (only in 3MP color sensor)
- Image Settings: Flexible cropping, Low-light noise filter control, Bitrate and bandwith limitation control, Backlight compensation, Auto multi-matrix white balance, 50/60Hz selectable flicker control, Electronic pan, tilt, zoom (PTZ), Electronic image flip: 180° rotation, Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264, MoonLight™ Mode: extended exposure and noise cancellation, Programmable resolution, brightness, saturation, gamma, sharpness, tint, Simultaneous delivery of full field-of-view and zoomed images, Bandwidth and storage savings by running at 1/4 resolution, Bit rate and bandwith limitation control
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: None
- Alarm/Event Management: On-camera real-time motion detection with 1024 detection zones,
- ONVIF: No
- Security: N/A
- Users: N/A
- On-board Storage: No
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: None
- Dimensions: 3"H (76 mm) x 2.5"W (63.5 mm) x 1.25"D (31.7mm) (w/o lens)
- Weight: 5.8 oz (164 grams) (w/o lens)
- Operating Temperature: -5°C (23 °F) to +50°C (122 °F)
- Operating Humidity: 0% to 90% (non-condensing)
- Power: PoE 802.3af, 12–48V DC & 24V AC via terminal block / 5.59 Watts maximum
- Warranty: 3 Years
- What's Included: MegaVideo Compact Camera, 4 Position External Plug, Manual, Warranty, Installation Software
Arecont Vision AV3236DN Overview
AV3236DN is a unique dual sensor Day/Night camera solution and is a part of Arecont Vision’s full line of H.264 megapixel cameras. It can be programmed to use the 3MP WDR color sensor in daylight conditions and 1.2MP monochrome sensor in low light, or it can stream video from both sensors simultaneously. In low light or no light, the optimized monochromatic 1.2-megapixel sensor reveals the details. More advanced than typical Day/Night technology, details in the dark are brought to light with clarity. Arecont Vision MegaVideo Compact Dual Sensor Cameras provide around the clock protection. For challenging daytime lighting conditions, the Wide Dynamic Range (WDR) 3-megapixel sensor delivers the best balance of light and dark areas in the scene. Arecont Vision MegaVideo Compact Dual Sensor Cameras deliver the best of both worlds.
