Arecont Vision AV3455DN-S
Arecont Vision MicroDome Series

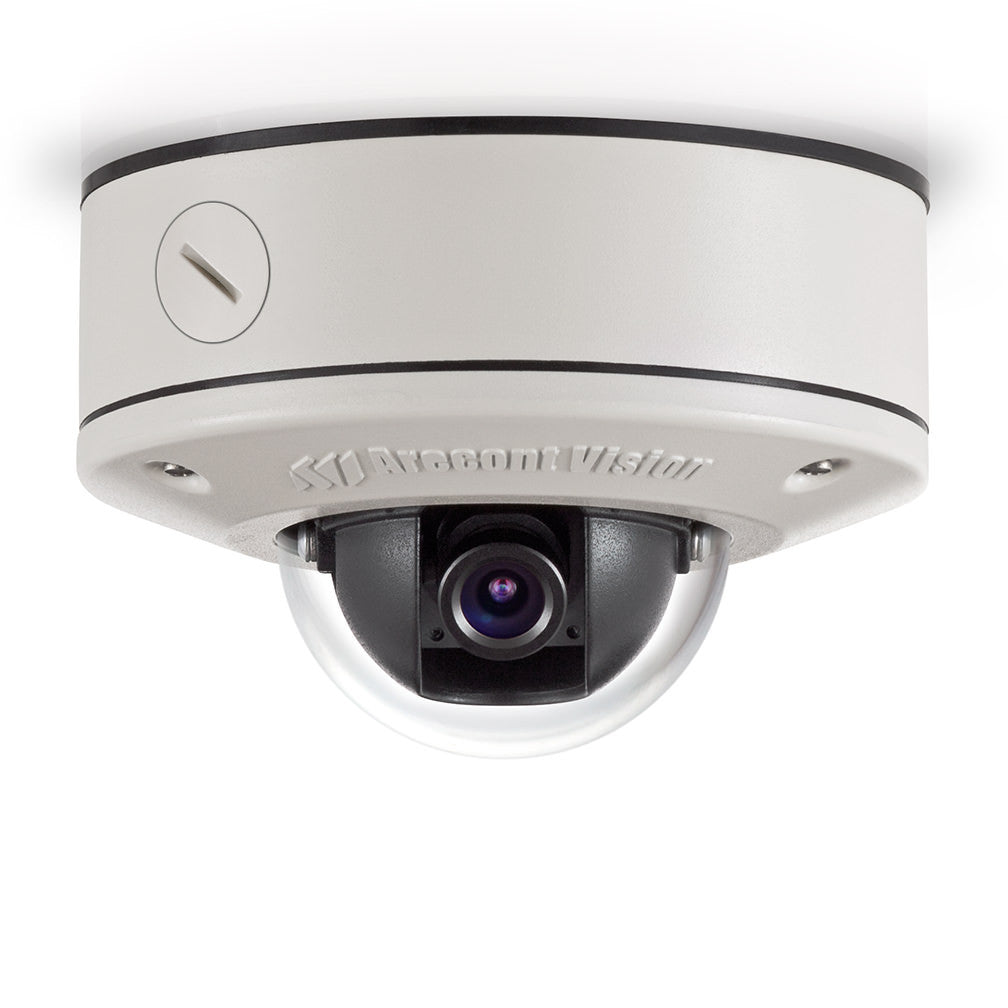

Arecont Vision AV3455DN-S MicroDome® IP Network Camera

Arecont Vision

Arecont Vision AV3455DN-S MicroDome® IP Network Camera

$0.00
Discontinued
Lens Options:Default Title

Contact

Arecont Vision AV3455DN-S Features

  • Max Resolution: 2048 x 1536 (3MP)
  • Image Sensor: 1/2.5" megapixel CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color: 0.3 Lux @ F1.6, Binning Mode: 0.15 Lux, Day/Night: 0 Lux, IR sensitive
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Mount: Board Mount (M12)
  • Focal Length: 4mm / F1.6
  • Zoom: ePTZ
  • Iris: N/A
  • Focus: Manual
  • Field of View: 66° (horizontal)
  • Compression Styles: Dual Encoder H.264 (MPEG Part 10) and MJPEG (21 levels of quality)
  • Frame Rate: up to 21fps @ 2048 x 1536
  • WDR Technology: No
  • Image Settings: Pixel Binning Mode, MoonLight™ Mode: extended exposure and proprietary noise cancellation, Flexible Cropping (resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264), Low light noise filter control, Bit rate and bandwidth limitation control, Backlight compensation and multi-matrix white balance, 50/60Hz selectable flicker control, Electronic pan, tilt, zoom (PTZ) and image flip 180°, Programmable resolution, brightness, saturation, gamma, sharpness, tint
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: No
  • Alarm/Event Management: Motion Detection and privacy mask with 1024 detection zones
  • ONVIF: No
  • Security: N/A
  • Users: N/A
  • On-board Storage: No
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IK-10 Impact-resistant and tamper-resistant housing, IP66 Weather-proof
  • Dimensions: Ø 4" (100mm) x 2.6" H (66mm)
  • Weight: 0.7lbs (0.3kg)
  • Operating Temperature: -40°C (-40°F) to +50°C (122 °F)
  • Operating Humidity: 0% to 90% (non-condensing)
  • Power: PoE 802.3af Class 3 / 5.59 Watts max
  • Warranty: 3 Years
  • What's Included: Camera, Ceiling template, 6x Mounting Screws (#6x1” for wood or sheet metal), 6x Mounting Anchors, 3/8” NPT Male to 1/2” NPT Female Adapter, Network Patch Cable, 3x Security Torx Dome Cover Fasteners, Arecont Vision CD: Manual, Warranty, & Installation Software
  • The AV3455DN-S-NL can be purchased by selecting the No Lens (-NL) option above

Arecont Vision AV3455DN-S Overview

MicroDome®offers all of the great features of existing Arecont Vision megapixel camera technology like superior image quality and the industry’s fastest frame rates, and now in a much smaller, more discreet housing. With an integrated mechanical day/night switcher and pixel binning in 3 and 5 megapixel, the MicroDome™ has excellent low-light capabilities. With an option for true Wide Dynamic Range of up to 100dB at full resolution there are no lighting conditions too tough for the MicroDome™. The MicroDome Series Cameras all come as either a Flush Mount (-F) version or a Surface Mount (-S) version. Both housings are IK10 vandal-proof rated; the -S versions are also IP66 weather-proof rated.
