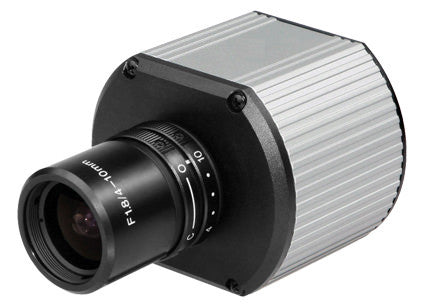

Arecont Vision AV5105DN MegaVideo® IP Network Camera

Arecont Vision AV5105DN Features

• Max Resolution: 2592x1944 (5MP)
• Image Sensor: 1/2.5" megapixel CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Motorized IR Cut Filter
• Minimum Illumination: Color: 0.3 Lux @ F1.4, Day/Night: 0 Lux, IR sensitive
• IR Illuminators: No
• IR Illuminator Range: N/A
• Focal Length: Dependent on selected lens, not included
• Zoom: ePTZ
• Iris: Dependent on selected lens, not included
• Focus: Manual
• Field of View: Dependent on selected lens, not included
• Compression Styles: Dual Encoder H.264 (MPEG Part 10) and MJPEG (21 levels of quality)
• Frame Rate: 9fps @ 2592x1944, 12fps @ 2560x1600, 15fps @ 2048x1536, 24fps @ 1600x1200, 30fps @ 1280x1024
  WDR Technology: No
• Image Settings: Auto Exposure (AE) and Gain Control (AGC)>120dB, Auto backlight compensation, Auto multi-matrix white balance, 50/60Hz selectable flicker control, wlectronic pan, tilt, zoom (PTZ), Electronic image flip - 180 degree rotation, resolution windowing down to 32x32 pixels window, programmable shutter speed to help control motion blur. MoonLight™ mode - extended exposure and proprietary noise cancellation. Programmable resolution, brightness, saturation, gamma, sharpness, tint. Picture-in-Picture: simultaneous delivery of full field of view and zoomed images, bandwidth & storage savings by running at 1/4 resolution.
• Privacy Mask: No
• Built-in Microphone: No
• Audio Capabilities: No
• Alarm/Event Management: On-camera real-time motion detection with 64 detection zones
• ONVIF: No
• Security: N/A
• Users: N/A
• On-board Storage: No
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: 3”W (76 mm) x 2.5”H (63.5 mm) x 2.25”D (57mm) (w/o lens)
• Weight: 8.6 oz (243 grams) (w/o lens)
• Operating Temperature: 0°C (32 °F) to +50°C (122 °F)
• Operating Humidity: 0% to 90% (non-condensing)
• Power: PoE 802.3af, 12–48V DC & 24V AC via terminal block / 4.5 Watts max
• Warranty: 3 years
