Arecont Vision AV5115DNv1

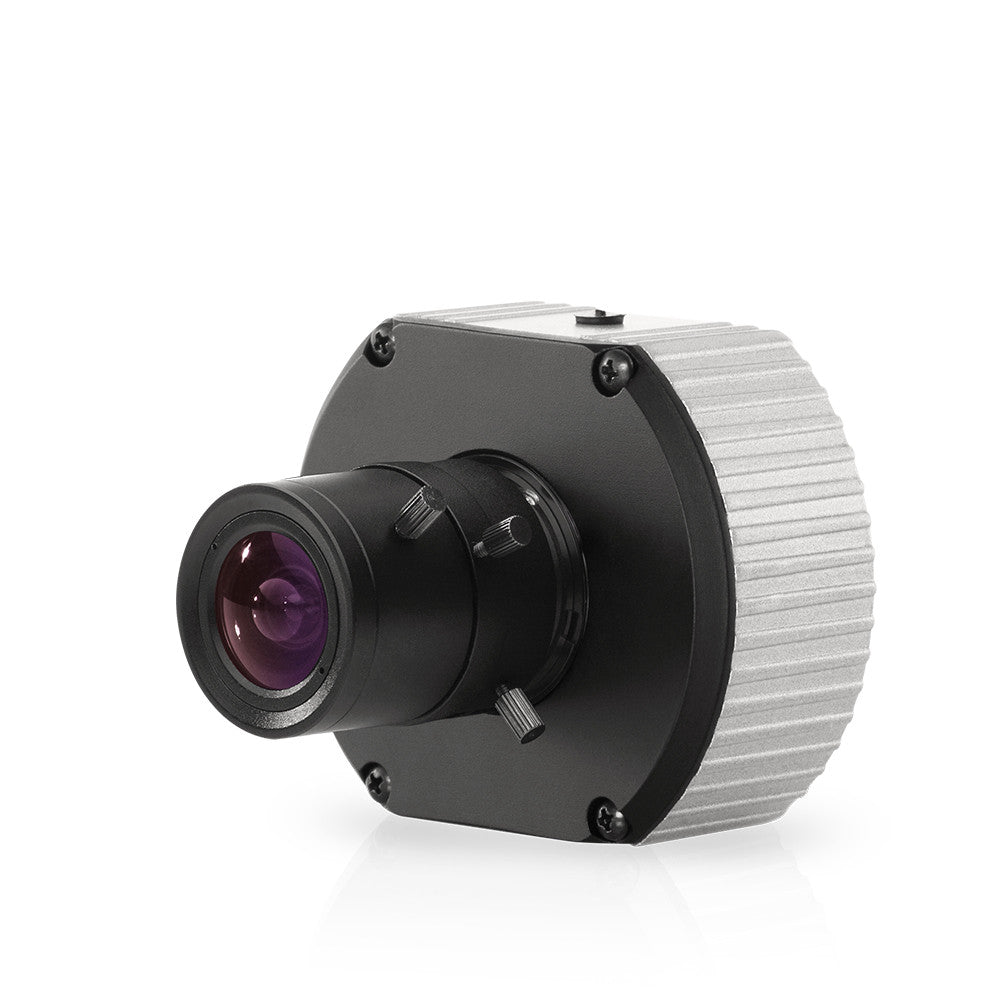

Arecont Vision AV5115DNv1 MegaVideo® Compact Camera

Arecont Vision

Arecont Vision AV5115DNv1 MegaVideo® Compact Camera

Sale price$640.00
SKU: AV5115DNv1


Arecont Vision AV5115DNv1 Features

  • Max Resolution: 2592x19446 (5MP)
  • Image Sensor: 1/2.5" CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Removable IR Cut Filter
  • Minimum Illumination: Color (non-binned): 0.3 Lux @ F1.4, Color (binned): 0.15 Lux @ F1.4, Day/Night: 0 Lux, IR sensitive
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Mount: CS Mount (C to CS lens adapter included with camera)
  • Focal Length: Dependent on selected lens, not included
  • Zoom: ePTZ
  • Iris: Dependent on selected lens, not included
  • Focus: Manual
  • Field of View: Dependent on selected lens, not included
  • Compression Styles: H.264 (MPEG4, Part 10) / Motion JPEG
  • Frame Rate: 14fps @ 2592x1944, 16fps @ 2560x1600, 21fps @ 2048x1536, 31fps @ 1600x1200, 29fps @ 1920x1080, 41fps @ 1280x1024; In Binned Mode: 34fps @ 1286x972, 41fps @ 1280x800, 46fps @ 1024x768, 64fps @ 800x600, 64fps @ 860x540, 64fps @ 640x512
  • WDR Technology: Yes, 70.1dB
  • Image Settings: Binned mode, Flexible cropping, Low-light noise filter control, Bitrate and bandwith limitation control, Backlight compensation, Auto multi-matrix white balance, 50/60Hz selectable flicker control, Electronic pan, tilt, zoom (PTZ), Electronic image flip: 180° rotation, Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264, MoonLight™ Mode: extended exposure and noise cancellation, Programmable resolution, brightness, saturation, gamma, sharpness, tint, Simultaneous delivery of full field-of-view and zoomed images, Bandwidth and storage savings by running at 1/4 resolution
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: On-camera real-time motion detection with 1024 detection zones,
  • ONVIF: No
  • Security: N/A
  • Users: N/A
  • On-board Storage: No
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: 3"H (76 mm) x 2.5"W (63.5 mm) x 1.25"D (31.7mm) (w/o lens)
  • Weight: 5.8 oz (164 grams) (w/o lens)
  • Operating Temperature: -5°C (23 °F) to +50°C (122 °F)
  • Operating Humidity: 0% to 90% (non-condensing)
  • Power: PoE 802.3af, 12–48V DC & 24V AC via terminal block / 5.59 Watts maximum
  • Warranty: 3 Years
  • What's Included: MegaVideo Compact Camera, Rubber gasket (preinstall on the camera), CD with AV100 software and user manuals (license key required for recording), C to CS lens adapter, 0.5mm lens spacer ring, 6-position external power & IO plug, 0.05” hex L-Key
