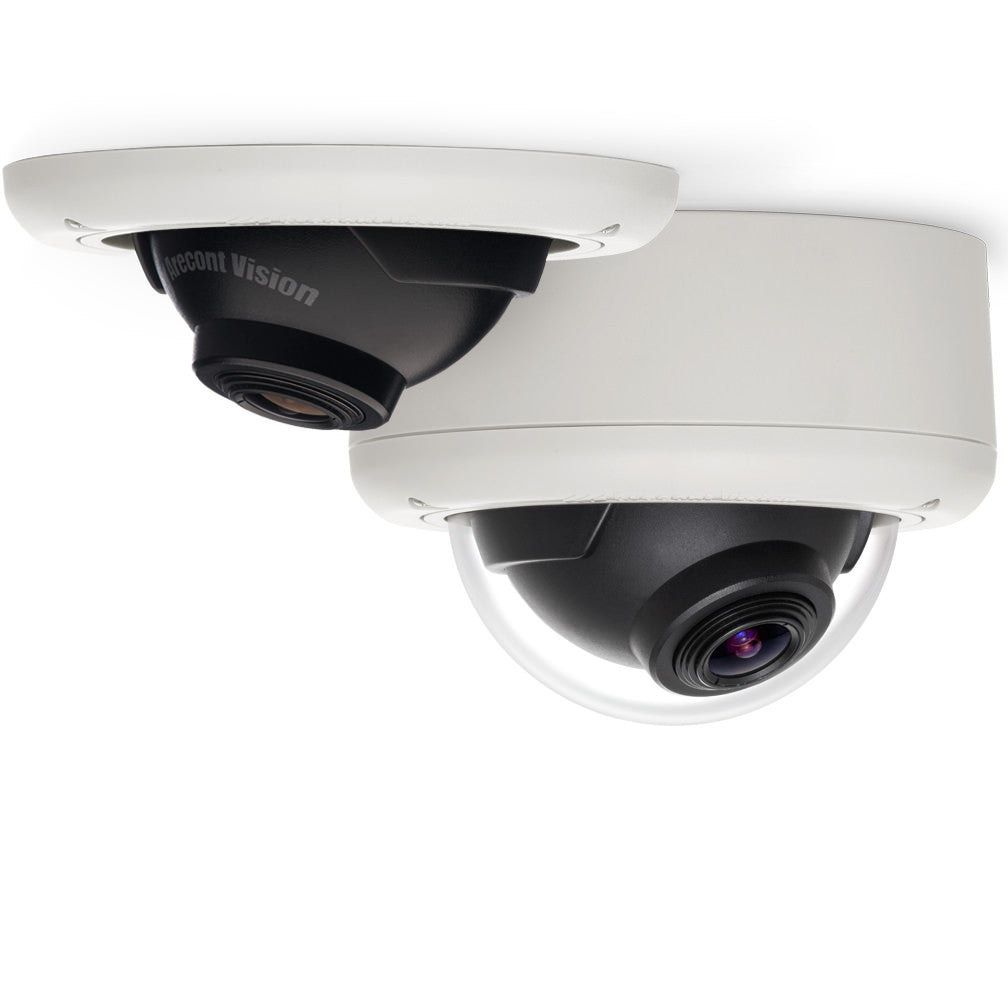

Arecont Vision AV5145DN-3310-DA-LG MegaBall® IP Network Camera

Arecont Vision AV5145DN-3310-DA-LG Features

• Resolution: 2592 x 1944
• Image Sensor: 1/2.5” CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: True Day/Night with Automatic Removable IR Cut Filter
• Minimum Illumination: Color (day mode): 0.3 lux; Color Binning (day mode): 0.15 lux; B/W (night mode): 0 Lux, IR sensitive
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Varifocal
• Focal Length: 3.3mm–10mm / F1.6
• Zoom: No
• Iris: Auto
• Focus: Auto
• Field of View: 92°-36°
• Compression Styles: H.264 (MPEG-4, Part 10)/Motion JPEG (21 levels of quality)
• Frame Rate: 14fps (2592 x 1944)
• Image Settings: Pixel Binning Mode (3MP and 5MP), Flexible cropping and low-light noise filter control, shutter speed: 1ms – 500ms, backlight compensation and multi-matrix white balance, 50/60Hz selectable flicker control. Electronic pan, tilt, zoom (PTZ) and image flip – 180° rotation. MoonLight™ mode – extended exposure and proprietary noise cancellation. Programmable resolution, brightness, saturation, gamma, sharpness, tint, bitrate and bandwidth limitation control.
• Privacy Mask: No
• Built-in Microphone: Yes
• Audio Capabilities: Supports two-way audio via integrated microphone / line output
• Alarm/Event Management: On-camera motion detection and privacy mask w/1024 detection zones
• ONVIF: Yes
• Security: Software Dependent
• Users: N/A
• On-board Storage: No
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: Plastic surface/in-ceiling dome w/polycarbonite bubble
• Dimensions: Ø 5.1" (130mm) x 1.74" H (44mm) (–D models in-ceiling); Ø 5.1" (130mm) x 3.85" H (98mm) (–D models, surface w/bubble)
• Weight: 1.2lbs (0.54kg)
• Operating Temperature: -5°C (23°F) to +50°C (140°F)
• Operating Humidity: 0% to 90% (non-condensing)
• Power: General purpose opto-isolated input and output; Power over Ethernet (PoE): PoE 802.3af for camera; Auxiliary power 12–48V DC, 24V AC; Power consumption: 5.1 watts
• Warranty: 3 years
