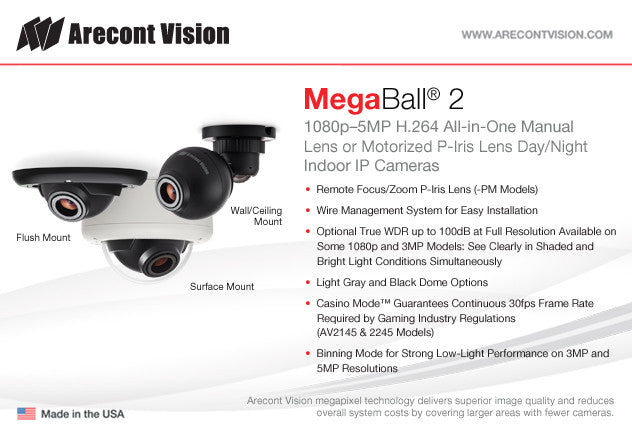

Arecont Vision AV5245PM-D-LG MegaBall® 2 IP Network Camera

Arecont Vision AV5245PM-D-LG Features

• Max Resolution: 2592 x 1944
• Image Sensor: 1/2.5" CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.3 Lux; Color Binning: 0.15 Lux; B/W: 0 Lux, IR Sensitive
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Motorized Varifocal
• Focal Length: 3.4mm–10mm / F1.3
• Zoom: Remote, ePTZ
• Iris: P-iris
• Focus: Remote
• Field of View: 102°–35° horizontal
• Compression Styles: H.264 (MPEG-4, Part 10)/Motion JPEG (21 levels of quality)
• Frame Rate: up to 14fps @ 2592 x 1944
• WDR Technology: No
• Image Settings: Programmable shutter speed to help control motion blur, Pixel Binning Mode, Flexible Cropping (resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264), Low light noise filter control, Bit rate and bandwidth limitation control, Backlight compensation and multi-matrix white balance, 50/60Hz selectable flicker control, Electronic pan, tilt, zoom (PTZ) and image flip 180°, Programmable resolution, brightness, saturation, gamma, sharpness, tint
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: No
• Alarm/Event Management: On-camera motion detection and privacy mask w/1024 detection zones
• ONVIF: No
• Security: N/A
• Users: N/A
• On-board Storage: No
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø 5.1" (130mm) x 3.85" H (98mm)
• Weight: 1.2 lb (0.54 kg)
• Operating Temperature: -5°C (-23°F) to +50°C (122°F)
• Operating Humidity: 0% to 90% (non-condensing)
• Power/Consumption: PoE 802.3af, Class 2, 12–48V DC & 24V AC via terminal block / 6.3 Watts max
• Warranty: 3 years
• What's Included: Camera, in-ceiling mount, surface mount (preassembled on dome), O-ring (reassembled on bezel), dome cover, mounting template, CD with AV100 software and user manuals (license key required for recording), pack of three (3) screws and three (3) anchors
• PLEASE NOTE: Black housing is no longer available

Arecont Vision AV5245PM Features

The AV5245 MegaBall® 2 series network camera is part of Arecont Vision’s full line of H.264 MegaBall® cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 2592 x 1944 megapixel resolution at full video frame rates of 14 frames per second (fps). The AV5245 camera line provides an all-in-one indoor 3" ball shape solution with integrated 5 megapixel camera, remote focus, remote zoom, P-iris IR corrected lens and wall mount or dome enclosure options. With the features of PSIA conformance, binning mode, privacy masking, extended motion detection and flexible cropping, the AV5245 is a high sensitivity, PoE (IEEE 802.3af) compliant day/night camera. Built with Arecont Vision’s massively-parallel MegaVideo® processing technology, this camera offers more than 16-times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging for indoor applications.
