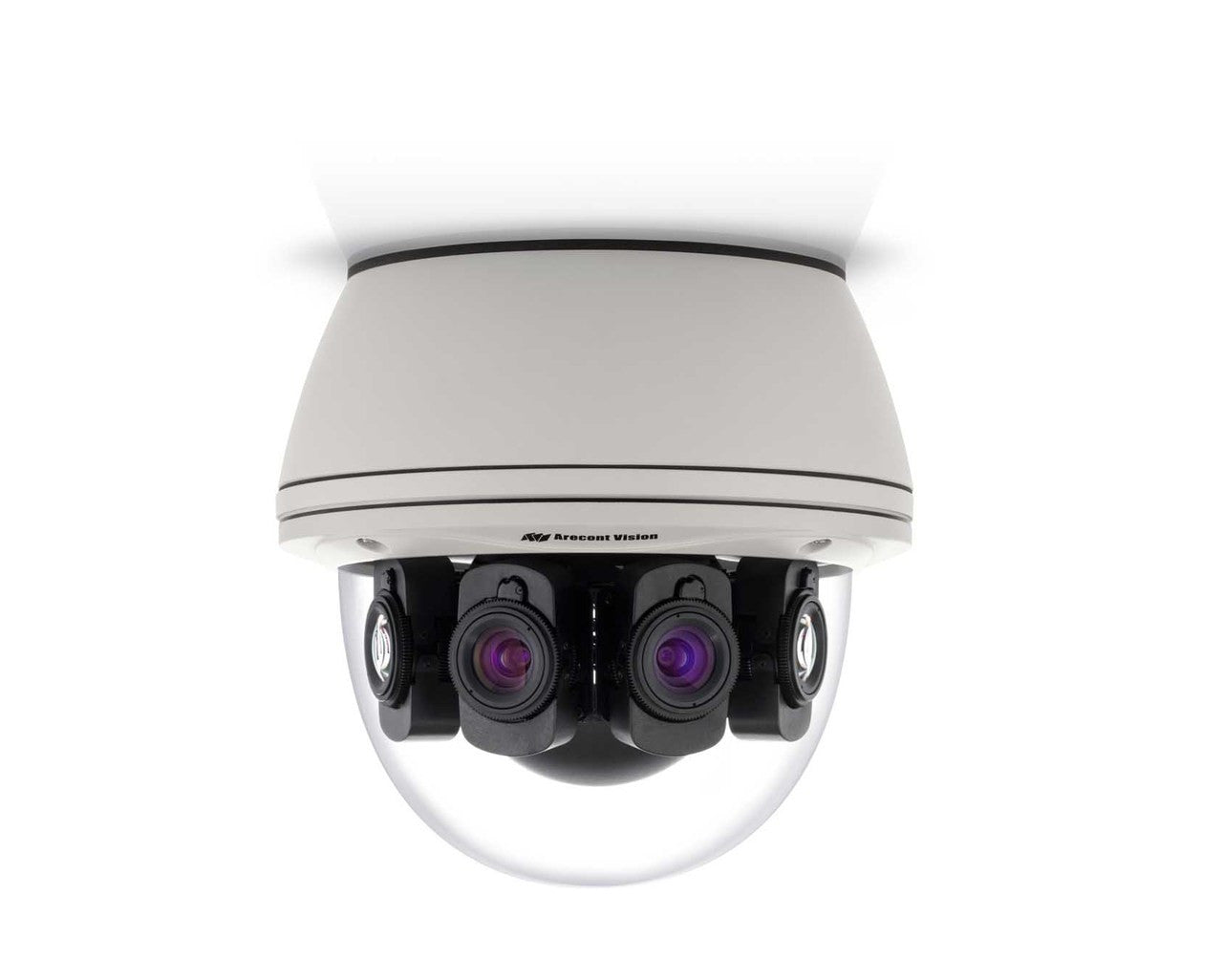

Arecont Vision AV5585PM SurroundVideo® Panoramic Network Camera

Arecont Vision AV5585PM Features

• 5MP Resolution
• Four (4) x 5.6mm MP P-iris Lenses
• 180˚ Panoramic View
• Remote Focus
• STELLAR™ Low Light Technology
• True Day/Night
• Indoor/Outdoor, IP66 Rated
• IK10 Vandal Resistant
• Power Over Ethernet

Arecont Vision AV5585PM Overview

Panoramic Overview

SurroundVideo® G5 cameras provide an all-in-one solution for capturing wide area video surveillance while maximizing the field-of-view and reducing the total number of cameras required. For added flexibility, users can view the camera’s four (4) sensors individually or as a smooth transition of all images blended together for a full 180° panoramic view. The camera is factory aligned with a slight image overlap to ensure you never miss a thing. For an optimal image, each sensor can be individually adjusted for the best exposure ratio per sensor (AV12586PM WDR model).

Resolution

The SurroundVideo® G5 multi-megapixel camera series delivers 5-, 12-, or 20-megapixel resolutions.

Lenses

The SurroundVideo® G5 multi-sensor, multi-megapixel dome camera pushes the boundaries of next generation technology, providing users with four (4) integrated, Remote Focus P-iris lenses for an incredible 180° panoramic experience in a single indoor/outdoor housing.

Rugged Design

SurroundVideo® G5 is designed for demanding environments. Subjected and certified to rigorous dust and water tests, the IP66 rating, and its extended operating temperature range make it ideal for outdoor applications. The IK-10 rated, rugged dome housing is perfect for deterring vandals since it can withstand the equivalent of 55 kg (120 lbs) of force.

Ease of Installation

The SurroundVideo® G5 camera features four (4) factory-installed Remote Focus P-iris lenses, ensuring the best possible depth of field and image clarity for precise performance from each individual sensor. Once mounted, the operator can quickly focus the camera remotely, eliminating the need to adjust the camera on-site. No more hassle individually installing multiple cameras to cover a wide area, manually focusing lenses, or risk missing critical information from a 180° scene.

Challenging Lighting Conditions

The series combines a day/night mechanical IR cut filter for the highest image quality at any time of day. For challenging low-light applications, the 5MP STELLAR™, “Spatio Temporal Low Light Architecture” model offers best-in-class light sensitivity capturing details in extreme low-light. The 12MP SurroundVideo® G5 camera (AV12586PM) features Wide Dynamic Range (WDR) to produce clear images in harsh lighting conditions.

Interoperability

The camera's interface allows for an intuitive, fast, and easy configuration. The SurroundVideo® G5 models (AV12585PM, AV12586PM, and AV20585PM) are ONVIF Profile S (Open Network Video Interface Forum) compliant, providing interoperability between network video products regardless of manufacturer.
