Arecont Vision AV800 8 Channel PoE Network Video Recorder

Arecont Vision AV800 Features

• 3 Different Hard Drive Configurations:
  AV800-0T2: 0 HD pre-installed, 2 open HD bays
  AV800-2T1: 2TB HD pre-installed, 1 open HD bay
  AV800-4T0: 4TB HD pre-installed (2 x 2TB), 0 open HD bays
• Inputs 8 Channels
• Decoding Format H.265/H.264/MJPEG
• Recording Bandwidth 160Mbps
• Resolution 10MP (Up to 5 channels only), 4K (Up to 5 channels only), 5MP, 3MP, 1080p, 1.2MP, 720p, D1, CIF, QCIF, Support SurroundVideo 40MP Camera, 4K Resolution cameras, 5MP (Up to 8 channels only), 3MP, 1080p, 1.2MP, 720p, D1, CIF, QCIF
• Live View / Playback Capability 1080p x 8@240fps, 3MP x 8@240fps, 5MP x 8@192fps, 4K x 5@120fps, 10MP x 5@96fps
• PoE 8 independent 100 Mbps PoE network interfaces, Max 20W for single port, Max 200W in total, Up to IEEE 802.3at/20W per channel
• Ideal for Small-Size Installations
• Works with Arecont Vision Brand Single and Multi-Sensor Cameras

• Up to 8 Channels (The Number of Sensors in a Camera = The Number of Channels on the NVR)

  Example: 4x Arecont Vision 5 Megapixel (MP) MicroDome® Single Sensor Cameras (4 Channels) + 1x Arecont Vision 12MP SurroundVideo® Omni (4 Channels) = 8 Channels
  Example: 6x Arecont Vision 3MP MegaDome® 2 Cameras (6 Channels) + 2x Arecont Vision 5MP MegaView® 2 (2 Channels) = 8 Channels
• Smart Plug-and-Play makes Camera Setup and Configuration Easy with Auto Discover and Auto Configuration
• 2 x Customer Replaceable SATA Hard Disk Drive Storage Bays for Internal Storage (6TB eaach, up to 12TB)
• Up to 10MP Resolution Recording – Including 4K Resolution and 40MP Panoramic Cameras
• H.265, H.264, MPEG4, and MJPEG Compression
• SNAPstream™ (Smart Noise Adaptation and Processing) Technology Support
• Free NVR Viewer Mobile App for Remote Viewing and Playback (Available on the Apple and Android App Stores)
• Power Status Utility
• Instant Playback

Arecont Vision AV800 Overview

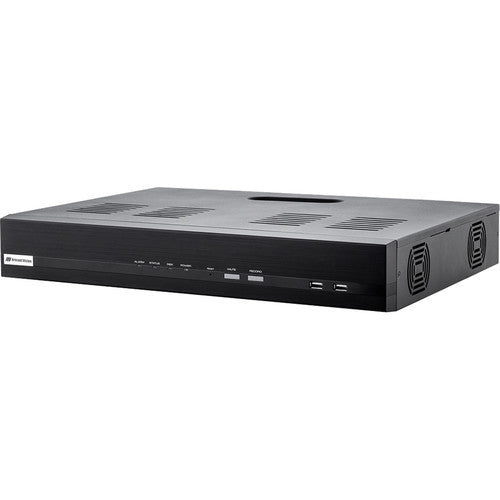

The Arecont Vision® AV NVR is a stand-alone network video recorder with a built in 8- or 16- channel PoE switch. The AV NVR features a custom designed user interface with user-friendly features such as instant playback, power status monitoring, mobile apps for remote viewing and playback, and plug-and-play support for all Arecont Vision cameras. When coupled with Arecont Vision’s industry leading camera technology, the AV NVR provides a cost-effective and easy-to-use solution for small to medium sized installations.
