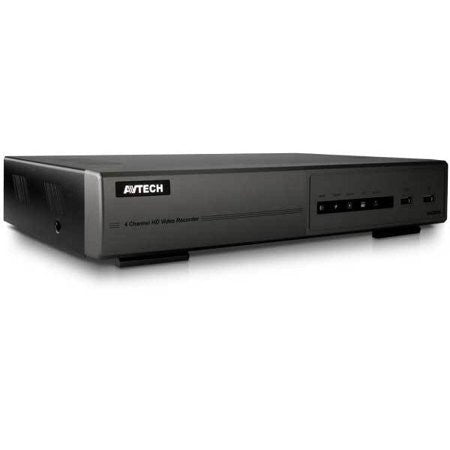

AVTECH AVH304 4CH Push Video HD Network Video Recorder

AVTECH

AVTECH AVH304 4CH Push Video HD Network Video Recorder

$99.00
Discontinued
SKU: AVH304

Contact

Replaced by the DGH1104

AVTECH AVH304 Features:

  • Camera Compatibility: Fully compatible with AVTECH cameras, please see Compatibility List
  • Maximum Number of Cameras/Channels: 4
  • PoE Ports: 4 PoE Ports on rear of unit, Max Power per PoE Port: 30W, Total Max PoE Power Out: 120W
  • Throughput: Up to 120 IPS @ 1280 x 1024, 32 Mbps
  • Compression Styles: H.264
  • Video Export Formats: Export video clips in AVI
  • Display Layout: 1 & 4
  • Event Notification: Email / Push Video
  • Alarm Triggers: Video motion detection
  • Scheduled Recording: Yes, Record video with user defined schedule
  • Event Recording: Yes, Record video when the alarm event is triggered, including the pre-event buffered video clip
  • Manual Recording: Yes, Instant recording upon mouse click
  • Recording Frame Rate: Up to 120 IPS @ 1280 x 1024, 32 Mbps
  • Remote Access with PC Based Web Browser: Yes, Internet Explorer on Windows operating system or EagleEyes on iOS & Android mobile devices
  • PTZ Controls: Yes, Pan, tilt and zoom controls; speed control
  • Playback Features: Search video recordings by time or channel.
  • Hard Drive Bays: One
  • Max TB per HD Bay: 4TB
  • USB Ports: Two on the front panel: one for video backup to USB flash drive, and another for NVR control via a USB mouse
  • Ethernet Ports: 4, POE 1~4port 10/100Mbps with POE & Internet (WAN) port 1000Mbps
  • Display Port(s): 1 HDMI Port
  • Dimensions (W x H x D): 345 (L) x 225 (W) x 68.3 (H)
  • Weight: N/A
  • Operating Temperature: 10℃ ~ 40℃ (50℉~104℉)
  • Power Source / Consumption: DC 48V / 1.25A,
  • Warranty: 2 Years
AVTECH AVH304 Overview:
This NVR features powerful mobile surveillance, especially the ending of active event notifications with video playback to iPhone, iPad and other Android mobile devices. When it works with AVTECH ETS cameras and our free mobile app, EagleEyes, is installed, you'll be able to receive notifications right after event occurrence within 5 seconds. This NVR helps users upgrad your CCTV system to high-definition IP surveillance systems with one cable solution. To extend the storage, an e-SATA interface is built in for external disk array connection. To have the best monitoring and recording images, this NVR supports full HD image display and real-time record per channel.

One Ethernet Cable Solution (POE, Power-over-Ethernet): Camera power supply & video transmission over one Ethernet cable to eliminate the needs of power adapters for your cameras during the whole HD surveillance system setup

Push Video - Active Event Notification (When Used with ETS IP Camera Series): Push Video support to send an event notification to your iPad, iPhone and Android mobile device immediately once the specified event type is triggered, and play video recording once you confirm the receipt.

HD Video Recording: 4CH 1.3MP real-time recording brings users clear images while video recording and playback

Multi-platform Remote Access: Fully compatible with iPhone & iPad, and Internet Explorer on Windows operating system, AVTECH free CMS program on both Windows and Mac OS

Free DDNS Service: Free DDNS service to configure your device to Internet easily

External Disk Array Support for More Video Storage: eSATA interface built-in to connect a disk array (up to 4-bay disk array with RAID 0 and 1) for more video storage

Full HD HDMI Video Output: 1920*1080 Full HD video output service, giving the best image quality on LCD / LED monitors

Smart Recording: High video resolution switch for events to optimize the recording efficiency of the hard disk
