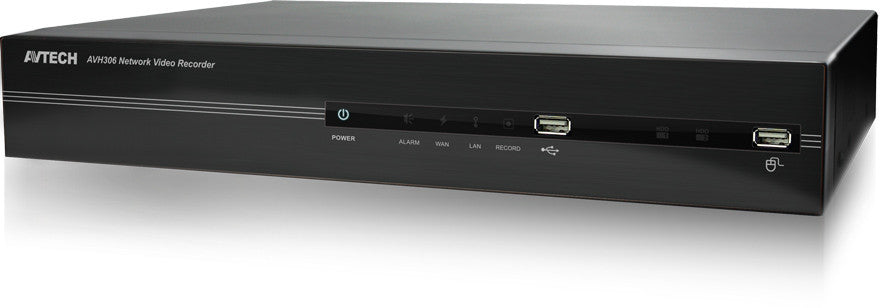

AVTECH AVH306 6CH HD Network Video Recorder
AVTECH AVH306 6CH HD Network Video Recorder
AVTECH AVH306 6CH HD Network Video Recorder
AVTECH AVH306 6CH HD Network Video Recorder
AVTECH AVH306 6CH HD Network Video Recorder


AVTECH AVH306 6CH HD Network Video Recorder

Sale price$0.00


AVTECH AVH306 Features

  • Camera Compatibility: Compatible with nearly every mainstream IP camera in the market
  • Maximum Number of Cameras/Channels: 6 Cameras/Channels
  • Recording Throughput: Up to 180 fps @ 720P, 32 Mbps
  • Compression Styles: H.264 / MPEG4 / MJPEG
  • Video Export Formats: AVI
  • Display Layout: Full Screen or Grid Layout
  • Alarm Triggers: Video motion detection; External device through digital input; Video loss and recovery; Network loss and recovery
  • Scheduled Recording: Yes, Record video with user defined schedule
  • Event Recording: Yes, Record video when the alarm event is triggered, including the pre-event buffered video clip
  • Manual Recording: Yes, Instant recording upon mouse click
  • Recording Frame Rate: Up to 180 fps
  • Remote Access with PC Based Web Browser: Yes, Fully compatibility on iPhone & iPad, and Internet Explorer® on Windows® operating system
  • PTZ Controls: No
  • Playback Features: Pre-Alarm Recording
  • Hard Drive Bays: Up to two 3TB hard drives
  • Max TB per HD Bay: 3TB

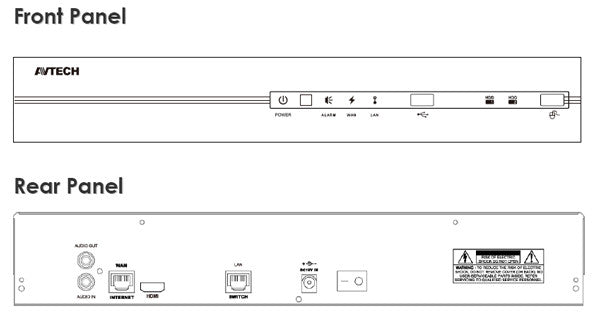

  • USB Ports: Two on the front panel: one for video backup to USB flash drive, and another for NVR control via a USB mouse
  • Ethernet Ports: LAN port, internet port
  • Display Port(s): 1 HDMI port

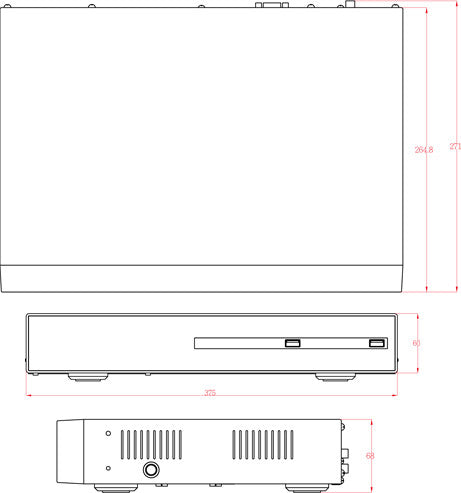

  • Dimensions: 375(W) × 68 ( H ) × 265 ( D )
  • Weight: N/A
  • Operating Temperature: 10℃ ~ 40℃ (50℉~104℉)
  • Operating Humidity: N/A
  • Power Source / Consumption: DC 19V / 2.1A
  • Warranty: 2 Years
  • Please note: Pre-installed hard drive not included but can be purchased separately. Please contact us for more information.

AVTECH AVH306 Overview

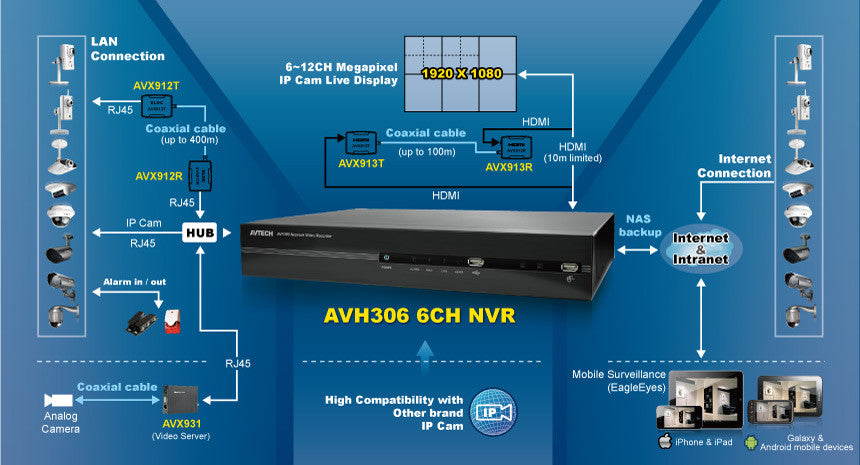

This NVR is suitable for introducing high-definition IP surveillance solution, and for upgrading your CCTV system to IP system without re-cabling. This NVR could be used as a control center to control and monitor up to 6 network cameras (ONVIF supported) connected to this NVR locally or remotely, and also get the ability of image storage for evidentiary recording and data backup. To have the best monitoring and recording images, this NVR supports full HD image display and real-time recording.
