AVTECH AVH312PV 12CH HD Network Video Recorder with Push Video

$400.00
Discontinued
SKU: AVH312PV

Contact

Discontinued; replaced by the AVH312

AVTECH AVH312PV Features

  • Push Video: Yes, get event video call in 5 sec. for an alarm event
  • Camera Compatibility: Compatible with nearly every mainstream IP camera in the market
  • Maximum Number of Cameras/Channels: 12 Cameras/Channels
  • Recording Throughput 6CH Mode: Up to 180 IPS @ 720 x 480, 32 Mbps / Up to 180 IPS @ 1280 x 720, 32 Mbps / Up to 90 IPS @ 1920 x 1080, 32 Mbps
  • Recording Throughput 12CH Mode: Up to 360 IPS @ 720 x 480, 32 Mbps / Up to 120 IPS @ 1280 x 720, 32 Mbps
  • Compression Styles: H.264 / MPEG4 / MJPEG
  • Video Export Formats: AVI
  • Display Layout: Full Screen or Grid Layout
  • Alarm Triggers: Video motion detection; External device through digital input; Video loss and recovery; Network loss and recovery
  • Scheduled Recording: Yes, Record video with user defined schedule
  • Event Recording: Yes, Record video when the alarm event is triggered, including the pre-event buffered video clip
  • Manual Recording: Yes, Instant recording upon mouse click
  • Remote Access with PC Based Web Browser: Yes, Fully compatibility on iPhone & iPad, and Internet Explorer® on Windows® operating system
  • PTZ Controls: Yes
  • Hard Drive Bays: Up to two 3TB hard drives
  • Max TB per HD Bay: 3TB

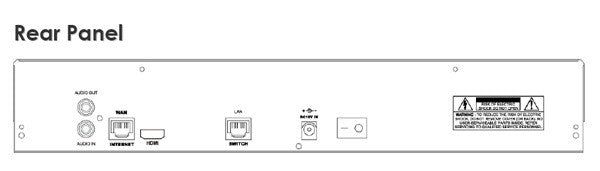

  • USB Ports: Two on the front panel: one for video backup to USB flash drive, and another for NVR control via a USB mouse
  • Ethernet Ports: LAN port, internet port
  • Display Port(s): 1 HDMI port

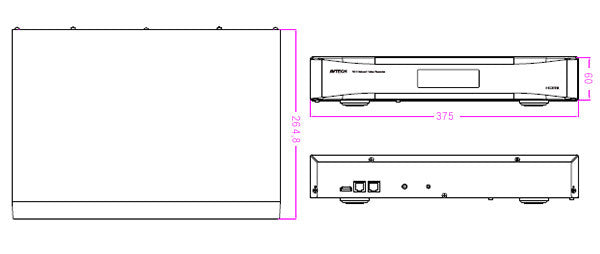

  • Dimensions: 375(W) × 68(H) × 264.8(D)
  • Weight: N/A
  • Operating Temperature: 10℃ ~ 40℃ (50℉~104℉)
  • Operating Humidity: N/A
  • Power Source / Consumption: DC 19V / 2.1A
  • Warranty: 2 Years
  • Notes: Recording @ 1280 x 1024 or higher is only allowed for CH1

AVTECH AVH312PV Overview

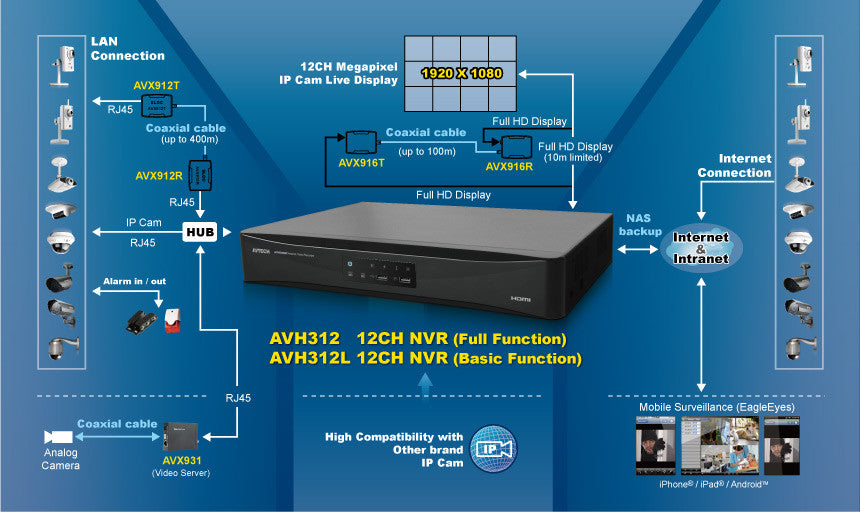

This NVR could be used as a control center to control and monitor up to 12 network cameras (ONVIF supported) connected to this NVR locally or remotely, and also get the ability of image storage for evidentiary recording and data backup. To extend the storage, an e-SATA interface is built in for external disk array connection. To have the best monitoring and recording images, this NVR supports full HD image display and real-time record per channel.
