AVTECH AVH316

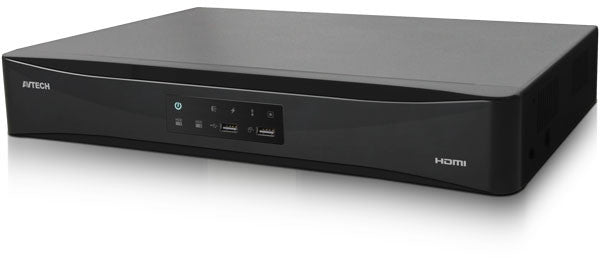

AVTECH AVH316 16CH 1080p Push Video Network Video Recorder

AVTECH

AVTECH AVH316 16CH 1080p Push Video Network Video Recorder

$370.00
Discontinued
SKU: AVH316

Contact

Discontinued, replaced by the AVH317.

AVTECH AVH316 Features

  • Camera Compatibility: Compatible with nearly every mainstream IP camera in the market
  • Maximum Number of Cameras/Channels: 16 Cameras/Channels
  • Recording Throughput: 240 IPS @ 1280 x 720, up to 48Mbps; 120 IPS @ 1920 x 1080, up to 48Mbps
  • Compression Styles: H.264
  • Video Input: One LAN port (up to 16 IP cameras)
  • Event Notification: Push Status / Video Mail / Message Mail
  • Push Video: No
  • Display Layout: 16 Channel
  • Scheduled Recording: Yes, Record video with user defined schedule
  • Event Recording: Yes, Record video when the alarm event is triggered, including the pre-event buffered video clip
  • Manual Recording: Yes, Instant recording upon mouse click
  • Pre-Alarm Recording: Yes
  • Quick Search: Time / Event
  • Remote Access: EagleEyes on iOS & Android mobile devices, Internet Explorer on Windows operating system, or AVTECH's self-developed program, Video Viewer
  • PTZ Controls: No
  • Hard Drive Bays: 2 bays
  • Max TB per HD Bay: 4TB
  • USB Ports: Two USB 2.0 ports
  • Ethernet Ports: 1 x Internet (LAN) port
  • Display Port(s): 1 x HDMI port & 1 x VGA
  • Security: Multiple user access levels with password
  • Dimensions: 375(W) × 68 ( H ) × 265 ( D )
  • Weight: N/A
  • Operating Temperature: 10℃ ~ 40℃ (50℉~104℉)
  • Operating Humidity: N/A
  • Power Source / Consumption: DC 12V (3A) / 9.6W (without a hard disk connected)
  • Warranty: 2 Years
  • Please note: Pre-installed hard drive not included but can be purchased separately. Please contact us for more information.

AVTECH AVH316 Overview

This NVR is suitable for introducing high-definition IP surveillance solution, and for upgrading your CCTV system to IP system without re-cabling. This NVR could be used as a control center to control and monitor up to 16 network cameras (ONVIF supported) connected to this NVR locally or remotely, and also supports image storage for evidentiary recording and data backup up to two 4TB HDDs. With eSATA built-in to connect disk array gives you more video storage then ever. To have the best monitoring and recording images, this NVR supports HD image display. It is fully compatible with iphone, ipad and Internet Explorer on Windows operating system for multi-platform remote access.
