AVTECH AVH516 Dimensions

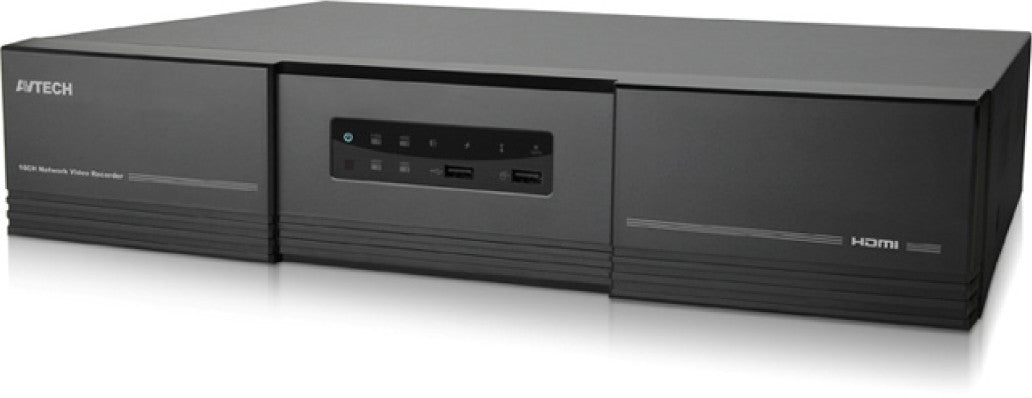

AVTECH AVH516 16 Channel 1080p NVR


AVTECH AVH516 16 Channel 1080p NVR

Sale price$415.00

Discontinued; replaced by the AVH517.

AVTECH AVH516 Features:

  • Camera Compatibility: Fully compatible with AVTECH cameras & compatible with nearly every mainstream IP camera in the market, 2MP resolution or less
  • Maximum Number of Cameras/Channels: 16
  • Push: Yes, does Push Video & Push Status
  • Throughput: Up to 480 IPS @ 1920 x 1080, Up to 120Mbps
  • Compression Styles: H.264
  • Video Export Formats: Export video clips in AVI
  • Event Notification: Push Status / Video Mail / Message Mail
  • Alarm Triggers: Video motion detection
  • Scheduled Recording: Yes, Record video with user defined schedule
  • Event Recording: Yes, Record video when the alarm event is triggered, including the pre-event buffered video clip
  • Manual Recording: Yes, Instant recording upon mouse click
  • Recording Frame Rate: Up to 480 IPS @ 1920 x 1080, Up to 120Mbps
  • Remote Access with PC Based Web Browser: Yes, Internet Explorer on Windows operating system, EagleEyes on iOS & Android mobile devices, and Video Viewer on Windows and Mac operating system
  • PTZ Controls: Yes, Pan, tilt and zoom controls; speed control
  • Playback Features: Search video recordings by time or channel
  • Hard Drive Bays: 3
  • Max TB per HD Bay: 4TB
  • USB Ports: Two USB 2.0 ports
  • Display Port: 1 HDMI Port for Video Output

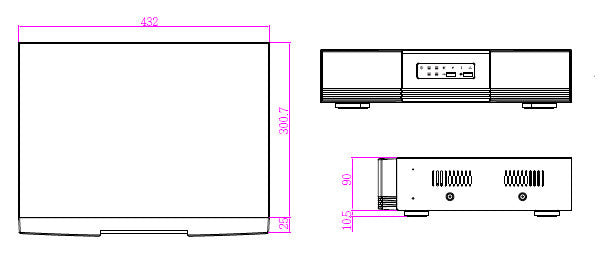

  • Dimensions (W x H x D): 432(W) × 90(H) × 326(D)
  • Weight: N/A
  • Operating Temperature: 10℃ ~ 40℃ (50℉~104℉)
  • Power Source / Consumption: DC12V / 3.42A
  • Warranty: 2 Years

AVTECH AVH516 Features:

This NVR is suitable for introducing high-definition IP surveillance solution, and for upgrading your CCTV system to IP system without re-cabling. This NVR could be used as a control center to control and monitor up to 16 network cameras (ONVIF supported) connected to this NVR locally or remotely, and also supports image storage for evidentiary recording and data backup up to 3HDD. With eSATA built-in to connect disk array gives you more video storage then ever. To have the best monitoring and recording images, this NVR supports full HD image display and real-time recording. It is fully compatible with iPhone, iPad and Internet Explorer on Windows operating system for multi-platform remote access.
