Replaced by the AVH2116

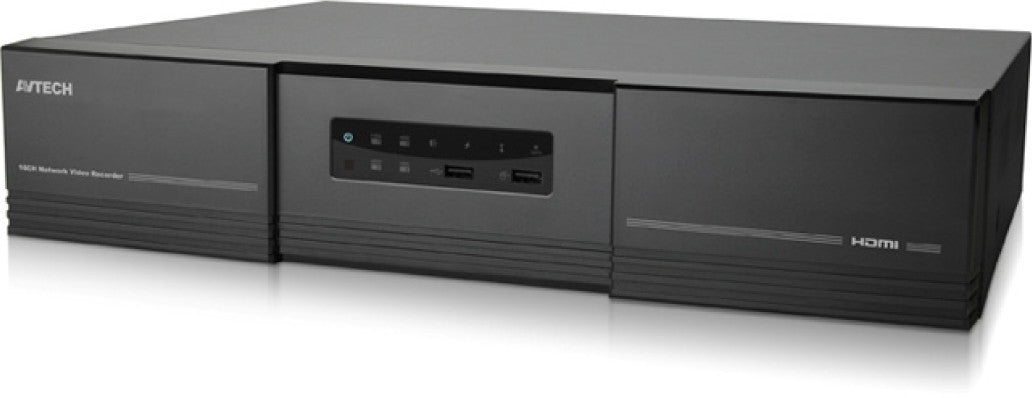

AVTECH AVH517 Features
- Camera Compatibility: Fully compatible with AVTECH cameras & compatible with nearly every mainstream IP camera in the market, 5MP resolution or less
- Maximum Number of Cameras/Channels: 16
- Push: Yes, does Push Video & Push Status
- Recording Throughput: Up to 480 IPS @ 2592 x 1944 (5MP), Up to 300Mbps
- Compression Styles: H.265 only
- Scheduled Recording: Yes, Record video with user defined schedule
- Event Recording: Yes, Record video when the alarm event is triggered, including the pre-event buffered video clip
- Manual Recording: Yes, Instant recording upon mouse click
- Remote Access: Internet Explorer on Windows operating system,;CMS Lite & 32CH CMS software for Windows operating system; EagleEyes on iOS & Android mobile devices
- PTZ Controls: N/A
- Playback Features: Quick Search video recordings by time or event
- Hard Drive Bays: 5
- Max TB per HD Bay: 6TB
- USB Ports: USB 3.0 x 1 / USB 2.0 x 2
- Display Port: HDMI x 2 / VGA x 1

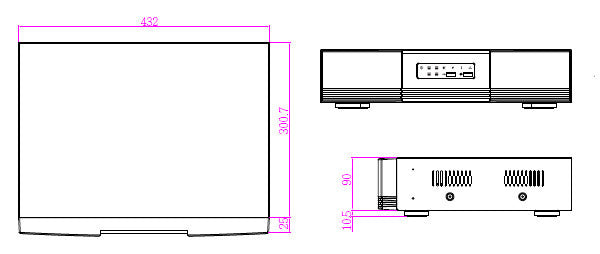

- Dimensions (W x H x D): 432(W) × 90(H) × 326(D)
- Weight: 4kg (8.81 lb)
- Operating Temperature: 10℃ ~ 40℃ (50℉~104℉)
- Power Source / Consumption: DC19V / 4.7A
- Warranty: 2 Years
