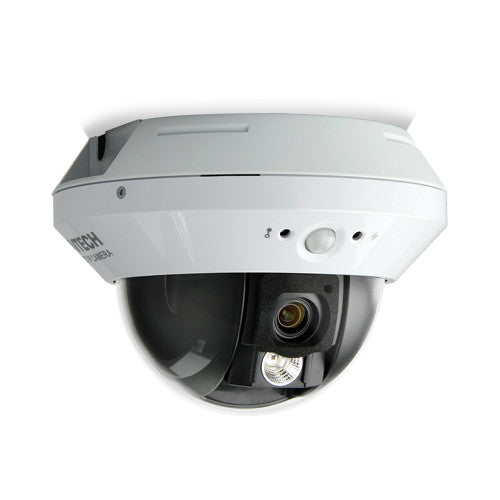

AVTECH AVM303 1.3MP Motorized Pan Dome Network Camera

Discontinued; replaced by the AVM521C.

AVTECH AVM303 Features

• Resolution: 1280 x 1024 / 1280 x 720 / 640 x 480 / 320 x 240
• Image Sensor: 1/4" CMOS image sensor
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.1 Lux / F1.5, 0 Lux (LED ON)
• IR Illuminators: Yes
• IR Illuminator Range: 15 meters
• Focal Length: f3.8mm / F1.5
• Zoom: Digital PTZ
• Iris: AES
• Focus: Auto
• Field of View: 80.4° (Diagonal) / 65.4° (Horizontal) / 49.1° (Vertical)
• Compression Styles: H.264 (Main Profile) / MJPEG
• Frame Rate: 30fps
• Image Settings: PIR Sensor, IR Shift, White Balance, AGC, IRIS Mode, External Alarm I/O,
• Privacy Mask: No
• Built-in Microphone: No
• Audio Capabilities: Mono line in & out
• Alarm/Event Management: External Alarm Input & Output, Motion Detection, Event Notification via FTP / Email / SMS, Real-Time Clock
• ONVIF: Yes
• Security: Multiple user access levels with password, IP address filtering, Digest authentication
• Users: 10
• On-board Storage: Yes, microSD Card Slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: 130mm (W) x 93.6mm (H)
• Weight: .683kg (1.5lb)
• Operating Temperature: 0℃~40℃
• Operating Humidity: N/A
• Power: 8.25W Max (PoE) ; 8.25W Max (PoN) ; 6.6W Max (DC Adapter, not included)
• Warranty: 2 Years
• What's Included: camera, screws & wall plugs, quick set up guide, CD manual
