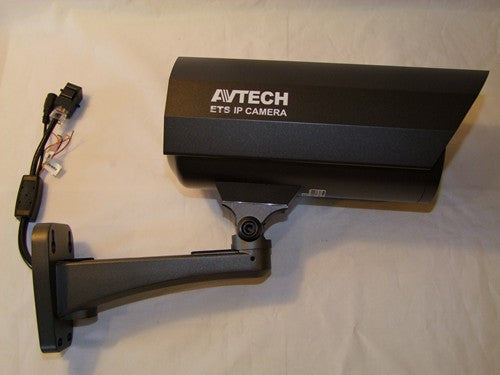

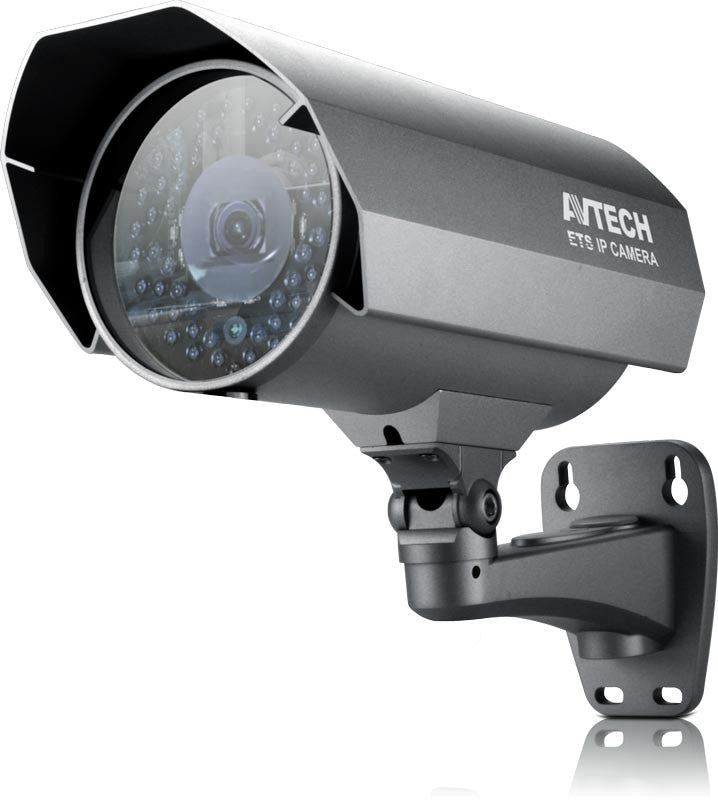

AVTECH AVM365A Fixed Outdoor Network Camera

Discontinued; replaced by the AVM553.

AVTECH AVM365A Features

• Resolution: SXGA (1280 x 1024); 720P ( 1280 x 720); VGA (640 x 480); QVGA (320 x 240)
• Image Sensor: 1/4" SONY HR
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.1 Lux / F1.5, 0 Lux (LED ON)
• IR Illuminators: Yes, 56 IR LED
• IR Illuminator Range: Up to 25 meters
• Focal Length: f3.8mm / F1.5
• Zoom: Digital Pan / Tilt / Zoom
• Iris: AES
• Focus: Auto
• Field of View: 62.7° (Diagonal)
• Compression Styles: H.264 / MPEG4 / MJPEG
• Frame Rate: NTSC:30, PAL:25
• Image Settings: White Balance, AGC, Iris Mode, Real Time Clock, Digital Pan/Tilt/Zoom
• Privacy Mask: No
• Built-in Microphone: No
• Audio Capabilities: N/A
• Push Video: No

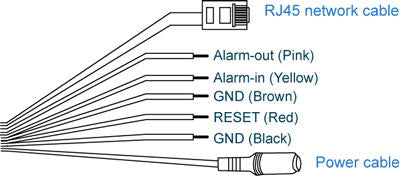

• Alarm/Event Management: Video Motion Detection with FTP/Email Alerts/SMS, External Alarm Device Connection
• ONVIF: Yes
• Security: Multiple user access levels with password; IP address filtering; Digest authentication
• Users: 10
• On-board Storage: No
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP67

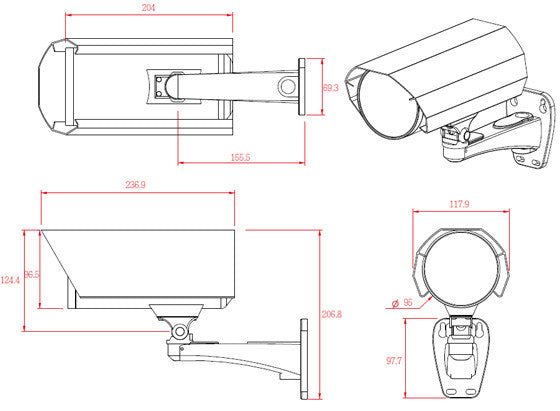

• Dimensions: 287.4mm(L) x 117.9mm(W) x 212.63mm(H)
• Weight: N/A
• Operating Temperature: -20℃~40℃
• Operating Humidity: N/A
• Power: 12V / 1.5A; PoE(IEEE 802.3af)
• Warranty: 2 Years

AVTECH AVM365A Overview

Need a quick solution for outdoor day & night monitoring? AVM365A might be the one you need. This megapixel camera, AVM365A, is an indoor-use IR camera with 56 IR LEDs, and its IR projection distance could reach up to 25 meters for dark area monitoring, suitable for places like shops or offices. It also supports HD image display, allowing users to have clear and sharp monitoring pictures. It's also capable of connecting external alarm devices, such as a buzzer or magnetic contacts, for function scalability. What's more, POE (power-over-ethernet) is also possible for this camera. For data storage, in addition to use with AVTECH NVRs, this camera also supports ONVIF standard to use with other brand's NVR and simplify system integration. Smart Recording when paired with AVTECH NVR, ETS IP cameras can switch to high-res recording after external or built-in alarm triggers, which is a more accurate way to identify events. Smart recoding helps minimize file size effectively on the NVR site while keeping high quality evidence as well.
