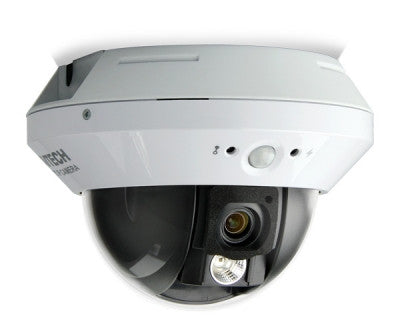

AVTECH AVM521A WDR Dome Network Camera
AVTECH AVM521A WDR Dome Network Camera


AVTECH AVM521A WDR Dome Network Camera

Sale price$170.00

Replaced by the AVM521C.

AVTECH AVM521A Features

  • Resolution: 1080P to CIF
  • Image Sensor: 1/2.9" HD CMOS image sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.1 Lux / F1.5, 0 Lux (LED ON)
  • IR Illuminators: Yes
  • IR Illuminator Range: 15 meters
  • Focal Length: f3.8mm / F1.5
  • Zoom: N/A
  • Iris: AES
  • Focus: Auto
  • Field of View: 83.2° (Diagonal) / 73.2° (Horizontal) / 42.8° (Vertical)
  • Compression Styles: H.264 / MJPEG
  • Frame Rate: 30/25fps
  • Image Settings: White Balance, Motion Detection, IR Shift, PIR Sensor, IRIS Mode, White Balance, AGC
  • Privacy Mask: No
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Motion Detection, Real-Time Clock, Mobile Surveillance, External Alarm Input & Output, Line In/Line Out, Event Notification FTP / Email / SMS
  • ONVIF: Yes
  • Security: Multiple user access levels with password, IP address filtering, Digest authentication
  • Users: 10
  • On-board Storage: Yes, Micro SD Card Slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 130mm (W) x 29mm (H)
  • Weight: N/A
  • Operating Temperature: 0℃~40℃
  • Operating Humidity: N/A
  • Power: 12V / 1A, PoE (IEEE 802.3af)
  • Warranty: 2 Years

AVTECH AVM521A Overview

Need a quick solution for indoor day & night monitoring? AVM521A might be the one you need. AVM521A is 2 megapixel indoor-use IR dome camera with WDR support to increase image recognizability in overexposure and dark areas, and IR LED for dark area monitoring, suitable for places like factories or warehouses. It's also capable of connecting external alarm devices, such as a buzzer or magnetic contacts, for function scalability. What's more, POE (power-over-ethernet) is also possible for this camera. For data storage, in addition to use with AVTECH NVRs, this camera also supports micro SD card and ONVIF standard to use with other brand's NVR and simplify system integration.
