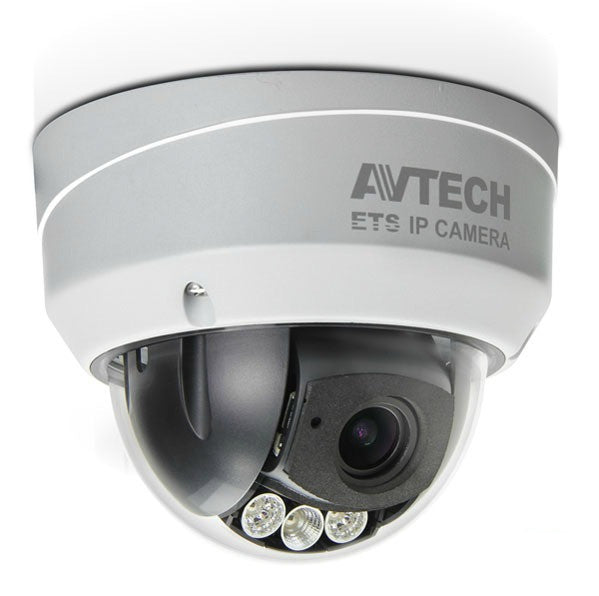

AVTECH AVM542B 2MP WDR Dome Network Camera

AVTECH AVM542B Features

• Resolution: 1080P to CIF
• Image Sensor: 1/2.8" CMOS image sensor
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.1 Lux / F1.4, 0 Lux (LED ON)
• IR Illuminators: Yes
• IR Illuminator Range: 30 meters (50 meters in IR Enhanced Mode)
• Focal Length: f2.8 ~ 12mm / F1.4 ~ F2.8
• Zoom: Digital PTZ
• Iris: AES
• Focus: Auto
• Field of View: Wide: 103° (Horizontal) / 54° (Vertical) / 122° (Diagonal); Tele: 31° (Horizontal) / 17° (Vertical) / 36° (Diagonal)
• Compression Styles: H.264 / MJPEG
• Frame Rate: 30/25fps
• Image Settings: IR Shift, Smart Light Control, White Balance, AGC, IRIS Mode, WDR
• Privacy Mask: No
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: Motion Detection, Event Notification via FTP / Email / SMS, External Alarm Input & Output, Line In/Line Out, Mobile Surveillance, Real-Time Clock
• ONVIF: Yes
• Security: Multiple user access levels with password, IP address filtering, Digest authentication
• Users: 10
• On-board Storage: Yes, Micro SD Card Slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66, IK10
• Dimensions: 130mm (W) x 29mm (H)
• Weight: 3.53 lb (1.5 kg)
• Operating Temperature: -14F ~ 122F (-25℃ ~ 50℃)
• Operating Humidity: 90% or less relative humidity
• Power: 12.5W Max (PoE) ; 12.5W Max (PoN) ; 10.19W (DC Adapter, not included)
• Warranty: 2 Years

AVTECH AVM542B Features

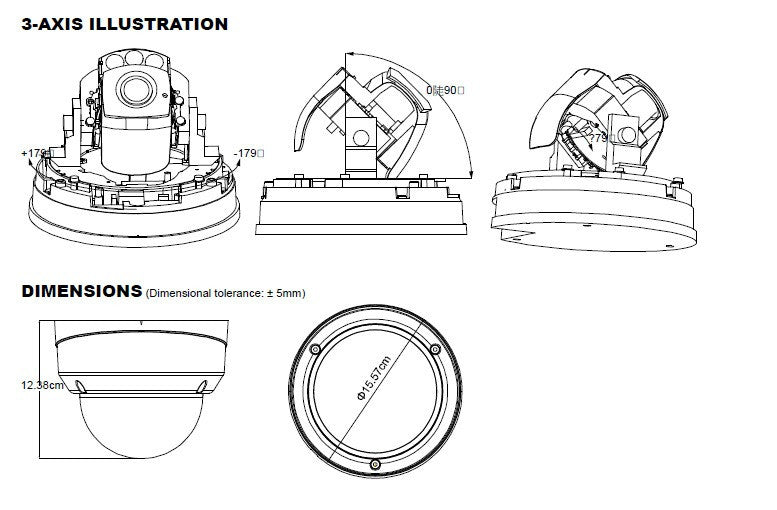

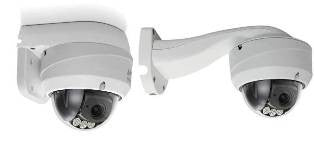

AVM542 is 2 megapixel outdoor-use IR dome camera with 3-axis mechanism for flexible ceiling and wall-mount installation. With tamper-resistant case, it prevents your camera from tampering or deliberate demage by thieves. Besides, AVM542 supports WDR to increase image recognizability in overexposure and dark areas, and IR LED for dark area monitoring, suitable for places like factories or warehouses. It's also capable of connecting external alarm devices, such as a buzzer or magnetic contacts, for function scalability. What's more, POE (power-over-ethernet) is also possible for this camera. For data storage, in addition to use with AVTECH NVRs, this camera also supports micro SD card and ONVIF standard to use with other brand's NVR and simplify system integration. This camera supports all kinds of N.O. / N.C. type alarm sensors; for example, active infrared sensor, smoke detector, magnetic contacts and so forth to extend the flexibility of IP surveillance.
