AVTECH AVM552B

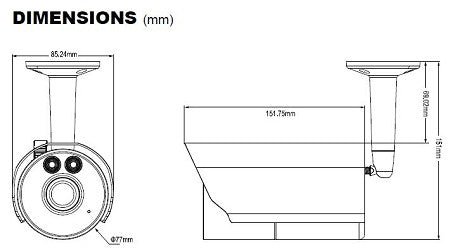

AVTECH AVM552B Dimensions

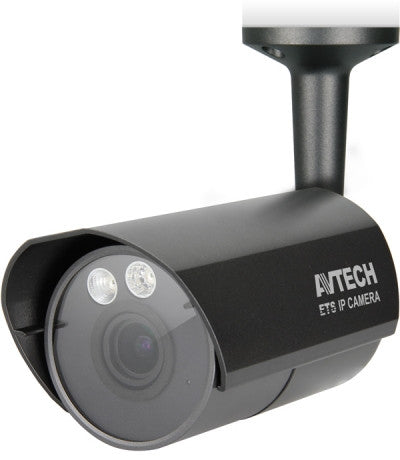

AVTECH AVM552B WDR Bullet Network Camera

AVTECH

AVTECH AVM552B WDR Bullet Network Camera

$210.00
Discontinued
SKU: AVM552B

Contact

Discontinued; replaced by the AVM553.

AVTECH AVM552B Features

  • Resolution: 1080P to CIF
  • Image Sensor: 1/2.9" HD CMOS image sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (LED ON)
  • IR Illuminators: Yes
  • IR Illuminator Range: Up to 25 meters, IR Enhanced Mode: up to 35 meters
  • Focal Length: f2.8 ~ 12mm / F1.4 ~ F2.8
  • Zoom: N/A
  • Iris: AES
  • Focus: Auto
  • Field of View: Wide: 97.4° (Horizontal) / 58.1° (Vertical) / 111.7° (Diagonal), Tele: 27.1° (Horizontal) / 15.2° (Vertical) / 31.1°(Diagonal)
  • Compression Styles: H.264 / MJPEG
  • Frame Rate: 30/25fps
  • Image Settings: White Balance, Motion Detection, IR Shift, PIR Sensor, IRIS Mode, White Balance, AGC, WDR
  • Privacy Mask: No
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Motion Detection, Real-Time Clock, Mobile Surveillance, External Alarm Input & Output, Line In/Line Out, Event Notification FTP / Email / SMS
  • ONVIF: Yes
  • Security: Multiple user access levels with password, IP address filtering, Digest authentication
  • Users: 10
  • On-board Storage: Yes, Micro SD Card Slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66
  • Dimensions: 151.75mm x 85.24mm
  • Weight: N/A
  • Operating Temperature: -20℃~40℃
  • Operating Humidity: N/A
  • Power: 12V / 1A PoE (IEEE 802.3af)
  • Warranty: 2 Years

AVTECH AVM552B Overview

Need a clear night solution for outdoor day & night monitoring? AVM552B might be the one you need. AVM552B is 2 megapixel vari-focal IP camera with WDR support and built-in IR LEDs. Its IR projection distance could reach up to 35 meters for dark area monitoring, suitable for places like factories or warehouses. It's also capable of connecting external alarm devices, such as a buzzer or magnetic contacts, for function scalability. What's more, POE (power-over-ethernet) is also possible for this camera. For data storage, in addition to use with AVTECH NVRs, this camera also supports Micro SD card and ONVIF standard to use with other brand's NVR and simplify system integration. This camera supports all kinds of N.O. / N.C. type alarm sensors; for example, active infrared sensor, smoke detector, magnetic contacts and so forth to extend the flexibility of IP surveillance
