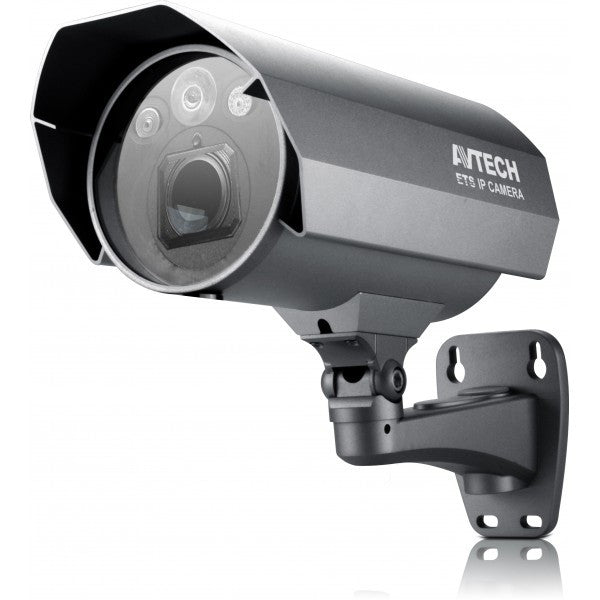

AVTECH AVM561J 2MP Varifocal Network Bullet Camera
AVTECH AVM561J 2MP Varifocal Network Bullet Camera


AVTECH AVM561J 2MP Varifocal Network Bullet Camera

Sale price$305.00

Replaced by the AVM553

AVTECH AVM561J Features

  • Resolution: 1080P to CIF
  • Image Sensor: 1/2.9" HD CMOS image sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.1 Lux / F2.0 (wide)~F2.8(Tele), 0 Lux (LED ON)
  • IR Illuminators: Yes
  • IR Illuminator Range: Default mode: up to 40M / IR enhanced mode: up to 60M
  • Lens Type:
  • Focal Length: f6.0 ~ 60 mm, F2.0 ~ 2.8
  • Zoom: 10x Optical Zoom
  • Iris: AES
  • Focus: Autofocus
  • Field of View: 47.3° (Horizontal) x 27.5° (Vertical) x 53.5° (Diagonal) 10X: 5.3° (Horizontal) x 3.0° (Vertical) x 6.1° (Diagonal)
  • Compression Styles: H.264 / MJPEG
  • Frame Rate: 30/25fps
  • Image Settings: White Balance, AGC, RTC (real-time clock), WDR Wide Dynamic Range,
  • Privacy Mask: No
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Motion Detection, FTP / Email / SMS
  • ONVIF: Yes
  • Security: Multiple user access levels with password, IP address filtering, Digest authentication
  • Users: 10
  • On-board Storage: No
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP67
  • Dimensions (W) x (L) x (H): 117.9mm x 236.9mm x 124.4mm
  • Weight: 1.8 kg
  • Operating Temperature: -20℃~40℃
  • Operating Humidity: N/A
  • Power: 11.25W Max (PoE) ; 11.25W Max (PoN) ; 9W Max (AC Adapter), 12V / 1.5A
  • Warranty: 2 Years

AVTECH AVM561 Overview

AVM561 is 2 megapixel 10X Zoom Vari-focal camera with WDR support and IR LEDs. Its IR projection distance could reach up to 60 meters, suitable for comprehensive surveillance of spacious areas. It's also capable of connecting external alarm devices, such as a buzzer or magnetic contacts, for function scalability. What's more, POE (power-over-ethernet) is also possible for this camera. For data storage, in addition to use with AVTECH NVRs, this camera also supports ONVIF standard to use with other brand's NVR and simplify system integration. This camera supports all kinds of N.O. / N.C. type alarm sensors; for example, active infrared sensor, smoke detector, magnetic contacts and so forth to extend the flexibility of IP surveillance.
