AVTECH AVM565A Features


  • Resolution: 1080P (1920 x 1080) to CIF (352 x 288)
  • Image Sensor: 1/2.9" SONY CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 1 Lux / F2.0, 0 Lux (LED ON)
  • IR Illuminators: Yes
  • IR Illuminator Range: Up to 40 meters
  • Focal Length: f6.0 ~ 60mm / F2.0 ~ 2.8
  • Zoom: 10X Optical Zoom
  • Iris: AES
  • Focus: Auto
  • Field of View: 1X: 47.3° (Horizontal) x 27.5° (Vertical) x 53.5° (Diagonal), 10X: 5.3° (Horizontal) x 3.0° (Vertical) x 6.1° (Diagonal)
  • Compression Styles: H.264 / MPEG4
  • Frame Rate: NTSC:30, PAL:25
  • Image Settings: White Balance, AGC, Iris Mode, RTC (real-time clock)
  • Privacy Mask: No
  • Built-in Microphone: No
  • Audio Capabilities: N/A

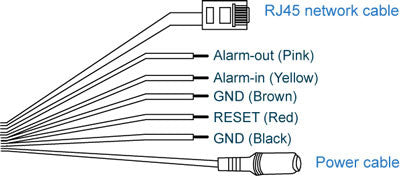

  • Alarm/Event Management: Video Motion Detection with FTP/Email Alerts/SMS, External Alarm Device Connection
  • ONVIF: Yes
  • Security: Multiple user access levels with password; IP address filtering; Digest authentication
  • Users: 10
  • On-board Storage: Yes, Micro SD Card Slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP67

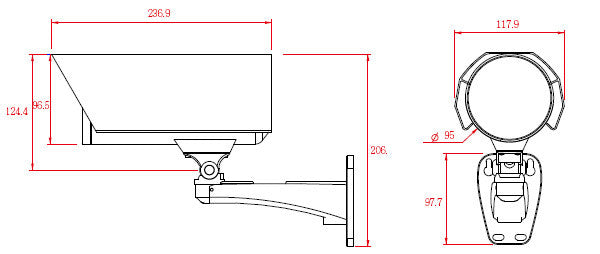

  • Dimensions: 236.9mm (L) x 117.9mm (W) x 96.5mm (H)
  • Weight: N/A
  • Operating Temperature: -10℃~40℃
  • Operating Humidity: N/A
  • Power: 12V / 1.5A; PoE(IEEE 802.3af)
  • Warranty: 2 Years
  • What's Included: Network Camera, Quick Setup Guide
  • Notes: Power Supply Not Included, PoE only

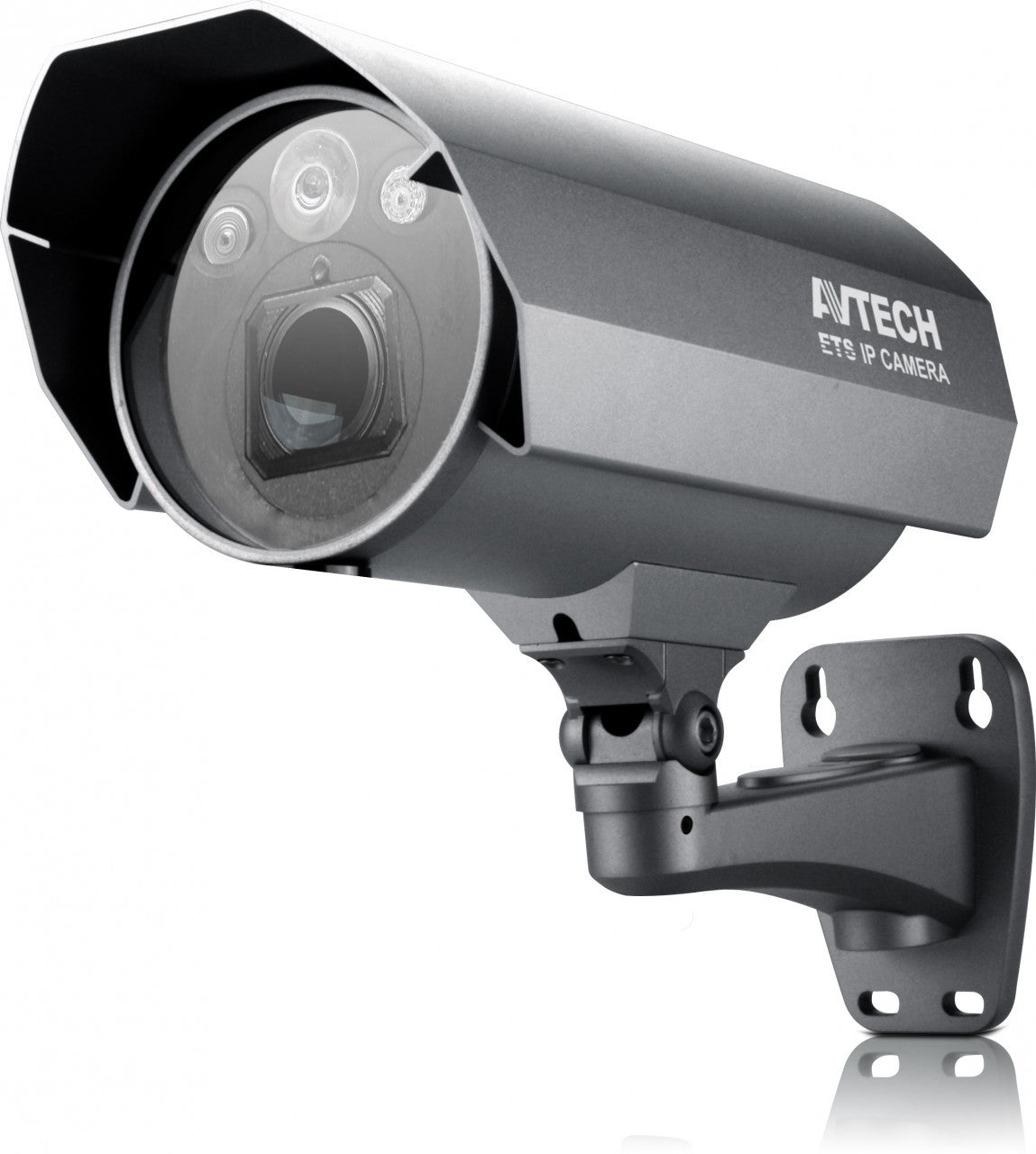

AVTECH AVM565A Overview

Need a clear solution for outdoor day & night monitoring? AVM565A might be the one you need. This two megapixel camera, AVM565A, is an ourdoor-use IR camera with Solid Light, and supports HD image display, allowing users to have clear and sharp monitoring pictures. Its IR projection distance could reach up to 60 meters for dark area monitoring, suitable for places like factories or warehouses. It's also capable of connecting external alarm devices, such as a buzzer or magnetic contacts, for function scalability. What's more, POE (power-over-ethernet) is also possible for this camera. For data storage, in addition to use with AVTECH NVRs, this camera also supports ONVIF standard to use with other brand's NVR and simplify system integration. This camera supports all kinds of N.O. / N.C. type alarm sensors; for example, active infrared sensor, smoke detector, magnetic contacts and so forth to extend the flexibility of IP surveillance.
