AVTECH AVM571 2MP WDR IP Speed Dome Network Camera
AVTECH AVM571 2MP WDR IP Speed Dome Network Camera
AVTECH AVM571 2MP WDR IP Speed Dome Network Camera


AVTECH AVM571 2MP WDR IP Speed Dome Network Camera

Sale price$450.00


AVTECH AVM571 Features

  • Resolution: 1080P to CIF
  • Image Sensor: 1/2.9" Sony CMOS image sensor
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.1 Lux / F2.0
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Focal Length: f6.0 ~ 60.0mm / F2.0 (Wide) ~ F2.8 (Tele)
  • Zoom: 10x optical zoom & 16x digital zoom
  • Zoom Speed: Approx. 3s(Tele~Wide)
  • Pan Range: 360° endless
  • Max. Pan Speed: 120º/s
  • Tilt Range: Tilt: 220°
  • Max. Tilt Speed: 90º/s
  • Number of Presets: Up to 16 preset points
  • Iris: Auto Iris
  • Focus: Auto
  • Field of View: 1X: 47.3° / 10X: 5.3° (Horizontal), 1X: 27.5° / 10X: 3.0° (Vertical), 1X: 53.5° / 10X: 6.1°(Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 FPS
  • Image Settings: Wide Dynamic Range (WDR), White Balance, Back Light Compensation, Color Adjustement (Brightness, Contrast, Saturation and Hue), Preset Points, Sequence Groups, S/N Ratio, White Balance,
  • Privacy Mask: No
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Motion Detection, FTP / Email / SMS
  • ONVIF: Yes
  • Security: Multiple user access levels with password, IP address filtering
  • Users: 10
  • On-board Storage: No
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP67

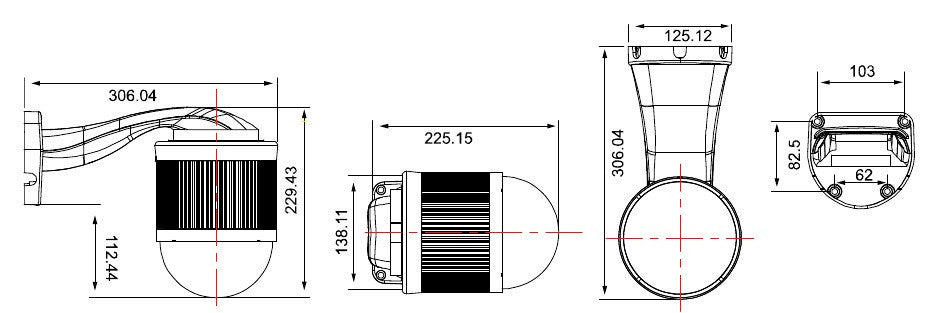

  • Dimensions: 206(H) x 147(D) (without bracket)
  • Weight: 2.3 kg
  • Operating Temperature: -20℃~40℃
  • Operating Humidity: 85%
  • Power: 11.25W (PoE) ; 11.25W (PoN) ; 9W (DC Adapter)
  • Warranty: 2 Years
  • What's Included: PTZ Network Camera, Quick Start, CD-ROM Disc, RJ45 Cable Extender Adapter
  • Notes: The optional bracket package includes wall mounting screws, cap, long M6 Nylok screws, short m6 Nylok screws, M4 screw, Spirit Level, Wall Plugs, Bracket Screw, Mounting Base Screw, Hex Screw Nuts. We recommend the Planet PoE-163 as the proper PoE injector.

AVTECH AVM571 Overview

Need a wide-viewing solution for wide-area monitoring? AVM571 is the one you need. AVM571 is a PTZ camera with 10X optical zoom lens and 16X digital zoom and auto focus to help you widen your surveillance area. You can set the camera on patrol to several points regularly, or move to any place you like and zoom in up to 10X ratio to see things clearly. On the other hand, WDR is your best support for night time surveillance. It can increase image recognizability in overexposure and dark areas. You can also configure the auto tracking function to monitor one place and activate the camera to move with the moving object automatically to collect the full evidence. For remote viewing, you could use Internet Explorer on Windows and MAC OS, or install our mobile app, EagleEyes, on popular mobile platforms (iOS, Android). In the mean time, Push Video can help you monitor anytime anywhere. For video storage, this camera supports ONVIF standard to use with other brand's NVR and simplify system integration.
