AVTECH AVM583

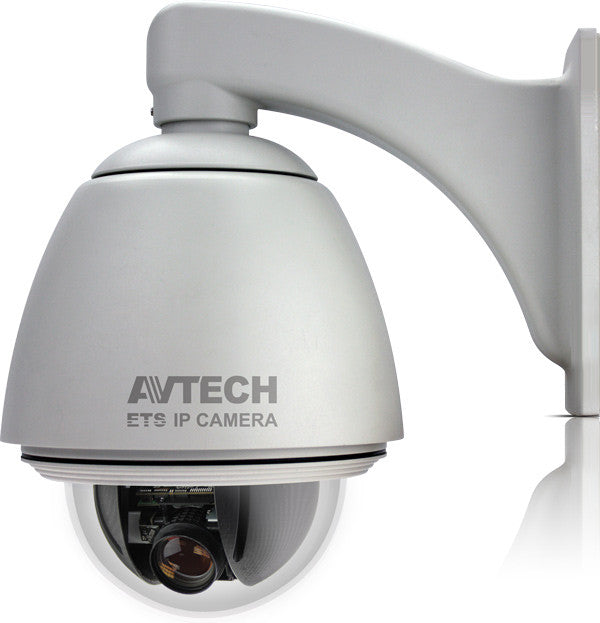

AVTECH AVM583 20x Zoom PTZ IP Camera

AVTECH

AVTECH AVM583 20x Zoom PTZ IP Camera

Sale price$850.00
Discontinued
SKU: AVM583

Discontinued.

AVTECH AVM583 Features

  • Resolution: 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 288
  • Image Sensor: 1/2.8" Sony CMOS image sensor
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.1 Lux / F1.6
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Focal Length: f4.7 ~ 94mm / F1.6 (Wide) ~ 3.5(Tele), auto focus
  • Zoom: 20X Optical Zoom
  • Zoom Speed: Approx. 3s(Tele~Wide)
  • Pan Range: 360° endless
  • Max. Pan Speed: 120º/s
  • Tilt Range: 180°
  • Max. Tilt Speed: 100º/s
  • Number of Presets: Up to 16 preset points
  • Iris: N/A
  • Focus: Auto
  • Field of View: 1X: 60.8° (Horizontal) / 35.3° (Vertical) / 68.3° (Diagonal) / 20X: 3.4° (Horizontal) / 1.9° (Vertical) / 3.8° (Diagonal)
  • Compression Styles: H.264 (Main Profile) / MJPEG
  • Frame Rate: 30 FPS in all resolutions
  • Image Settings: Wide Dynamic Range (WDR), White Balance, AGC, IRIS Mode, Sharpness
  • Privacy Mask: No
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Motion Detection, FTP / Email / SMS
  • ONVIF: Yes
  • Security: Multiple user access levels with password, IP address filtering
  • Users: 10
  • On-board Storage: Yes, MicroSD card support (up to 64GB) for video storage
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 weatherproof
  • Dimensions: 300(H) x 220(D) (without bracket)
  • Weight: N/A
  • Operating Temperature: -20℃~40℃
  • Operating Humidity: 85%
  • Power: PoE / PoN: 11.5W; DC Adapter: 9.6W
  • Warranty: 2 Years
  • What's Included: AVM583 PTZ Network Camera with Mount, Quick Start, CD-ROM Disc
  • Notes: The optional bracket package includes wall mounting screws, cap, long M6 Nylok screws, short m6 Nylok screws, M4 screw, Spirit Level, Wall Plugs, Bracket Screw, Mounting Base Screw, Hex Screw Nuts. We recommend the Planet PoE-163 as the proper PoE injector.

AVTECH AVM583 Overview

Need a wide-viewing solution for wide-area monitoring? AVM583 is the one you need. AVM583 is a PTZ camera with 20X optical zoom lens and 16X digital zoom and auto focus to help you widen your surveillance area. You can set the camera on patrol to several points regularly, or move to any place you like and zoom in up to 20X ratio to see things clearly. On the other hand, WDR is your best support for night time surveillance. It can increase image recognizability in overexposure and dark areas. For remote viewing, you could use Internet Explorer on Windows and MAC OS, or install our mobile app, EagleEyes, on popular mobile platforms (iOS and Android). In the mean time, Push Video can help you monitor anytime anywhere. For video storage, this camera supports ONVIF standard to use with other brand's NVR and simplify system integration.
Remote Surveillance
Fully compatible with iOS and Android devices, and Internet Explorer on Windows operating system. Push Video available on your iOS and Android devices when used with Push Video NVR series.
WDR to increase image recognizability in overexposure and dark areas.
PTZ control for seamless monitoring
Capable of 360° pan rotation continuously and 180° tilt movement, allowing quick and smooth action of the camera lens, Auto Tracking to follow moving objects, Hot Point support to quickly move the camera to the specified point remotely, Up to 16 preset points & four sequence groups programmable for multiple points monitoring, and Auto Scan.
PoE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs.
Zoom lens of f4.7 ~ 94mm with 20x optical zoom, 16x digital zoom and auto focus, suitable for various monitoring environments.
MicroSD card support (up to 64GB) for video storage.
External Alarm I/O device connection.
ONVIF standard supported to simplify system integration.
