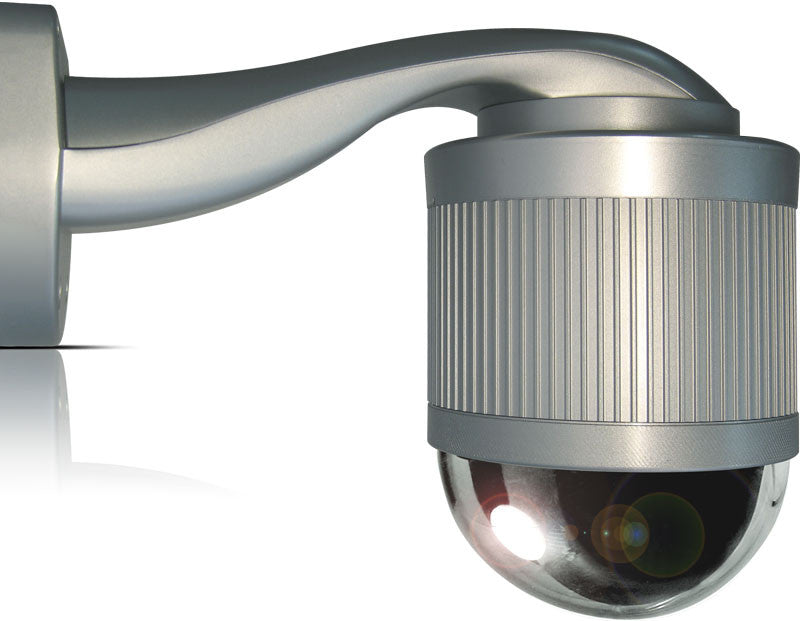

AVTECH AVN244ZVAN PTZ Dome Network Camera

AVTECH AVN244ZVAN Features

DISCONTINUED & Replaced by the AVM571

• Resolution: D1 (720 x 576)
• Image Sensor: 1/4" Sony Color Super HAD CCD
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 0.3 Lux / F1.6
• IR Illuminators: No
• IR Illuminator Range: N/A
• Focal Length: f3.9 ~ 85.9mm
• Zoom: 22X Optical Zoom
• Iris: N/A
• Focus: Auto
• Field of View: 4º~ 60º
• Compression Styles: H.264 / MPEG4 / MJPEG
• Frame Rate: NTSC:30 / PAL:25
• Image Settings: White Balance, Back Light Compensation, Color Adjustement (Brightness, Contrast, Saturation and Hue), Preset Points, Sequence Groups, S/N Ratio, White Balance,
• Privacy Mask: No
• Built-in Microphone: No
• Audio Capabilities: N/A
• Alarm/Event Management: Motion Detection, FTP / Email / SMS
• ONVIF: Yes
• Security: Multiple user access levels with password, IP address filtering
• Users: 10
• On-board Storage: No
• Indoor/Outdoor: Outdoor/Inddor
• Housing/Enclosure Rating: IP66

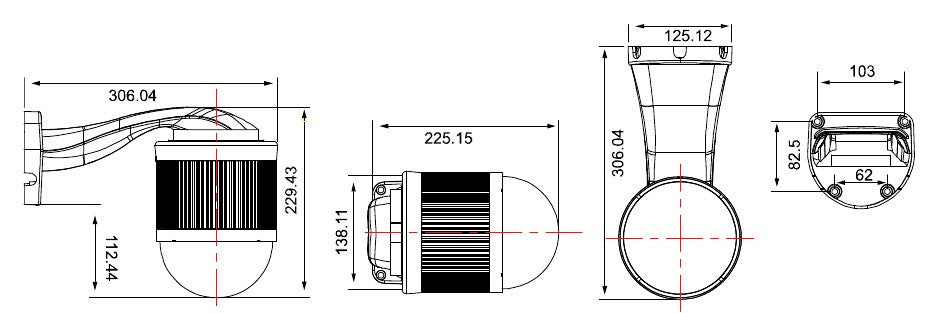

• Dimensions: 138.11mm (W) x 225.15mm (H)
• Weight: N/A
• Operating Temperature: -20℃~40℃
• Operating Humidity: 85%
• Power: DC12V, 1.5A
• Warranty: 2 Years
• What's Included: PTZ Network Camera, Quick Start, CD-ROM Disc, RJ45 Cable Extender Adapter
• Notes: The optional bracket package includes wall mounting screws, cap, long M6 Nylok screws, short m6 Nylok screws, M4 screw, Spirit Level, Wall Plugs, Bracket Screw, Mounting Base Screw, Hex Screw Nuts

AVTECH AVN244ZVAN Overview

Need a wide-viewing solution for wide-area monitoring? AVN244A might be the one you need. AVN244A is a PTZ camera with 22X zoom lens to help you widen your surveillance area. You can set the camera on patrol to several points regularly, or move to any place you like and zoom in up to 22X ratio to see things clearly. You can also configure the auto tracking function to monitor one place and activate the camera to move with the moving object automatically to collect the full evidence. For remote viewing, you could use 5 commonly-seen web browsers (Internet Explorer, Mozilla Firefox, Google Chrome, Safari, & Opera) on Windows and MAC OS, or install our mobile app, EagleEyes, on 5 popular mobile platforms (iOS, BlackBerry, Android, Windows Mobile & Symbian). For video storage, this camera supports ONVIF standard to use with other brand's NVR and simplify system integration.
