AVTECH AVN284A Widen Outdoor Monitoring PTZ Network Camera
AVTECH AVN284A Widen Outdoor Monitoring PTZ Network Camera
AVTECH AVN284A Widen Outdoor Monitoring PTZ Network Camera
AVTECH AVN284A Widen Outdoor Monitoring PTZ Network Camera

AVTECH

AVTECH AVN284A Widen Outdoor Monitoring PTZ Network Camera

Sale price$0.00
Discontinued
SKU: AVN284

Contact

AVTECH AVN284A Features

Discontinued & Replaced by the AVM571

  • Resolution: High Resolution
  • Image Sensor: 1/4" Sony Color Super HAD CCD
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.3 Lux / F1.6
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-Focal
  • Focal Length: f3.9 ~ 85.9mm
  • Zoom: 22X Optical Zoom, Approx, 7s (Tele ~ Wide)
  • Pan Range & Speed: 360º/s
  • Tilt Range & Speed: 90º/s
  • Focus: Auto
  • Field of View: 4º~ 60º
  • Compression Styles: H.264 / MPEG4 / MJPEG
  • Frame Rate: NTSC:30 / PAL:25
  • Image Settings: White Balance, BLC, Color Adjustment (Brightness, Contrast, Saturation and Hue)
  • Privacy Mask: No
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Motion Detection, FTP / Email / SMS
  • ONVIF: Yes
  • Security: Multiple user access levels with password, IP address filtering
  • Users: 10
  • On-board Storage: No
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66

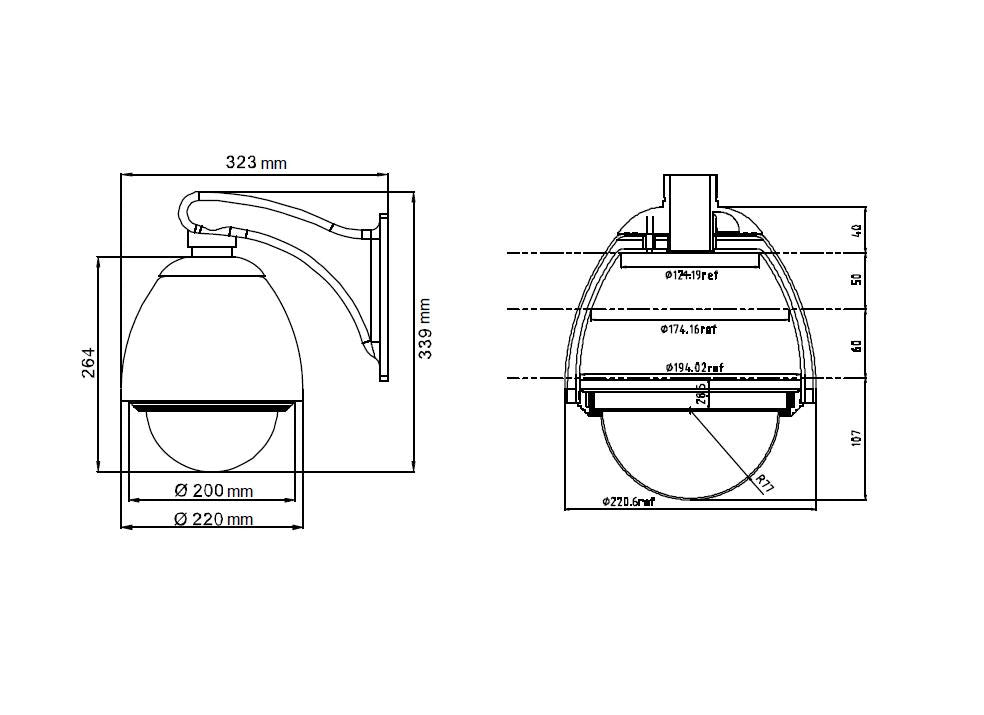

  • Dimensions: 323(W) x 339(H) (bracket included)
  • Weight: 1.6 kg
  • Operating Temperature: -20°C ~ 50°C (14°F ~ 122 °F) / Fan: 40°C on, 30°C off
  • Operating Humidity: N/A
  • Power: DC12V / 3A (max)
  • Warranty: 2 Years Warranty

AVTECH AVN284 Overview

Need a wide-viewing solution for outdoor monitoring? AVN284A might be the one you need. AVN284A is a PTZ camera with 22X zoom lens to help you widen your surveillance area. You can set the camera on patrol to several points regularly, or move to any place you like and zoom in up to 22X ratio to see things clearly. You can also configure the auto tracking function to monitor one place and activate the camera to move with the moving object automatically to collect the full evidence. For online viewing, you could use 5 commonly-seen web browsers (Internet Explorer, Mozilla Firefox, Google Chrome, Safari, & Opera) on Windows and MAC OS, or install our mobile app, EagleEyes, on 5 popular mobile platforms (iOS, BlackBerry, Android, Windows Mobile & Symbian). For video storage, this camera supports ONVIF standard to use with other brand's NVR and simplify system integration. Mobile surveillance via many popular mobile platforms, such as iPhone, BlackBerry, Win Mobile & Android, are supported to fulfill various user demands. Our self-developed mobile solution 'EagleEye', can be installed for surveillance, anywhere & anytime on your mobile phone.
