Replaced by the DGD1008 or the DGD1009.

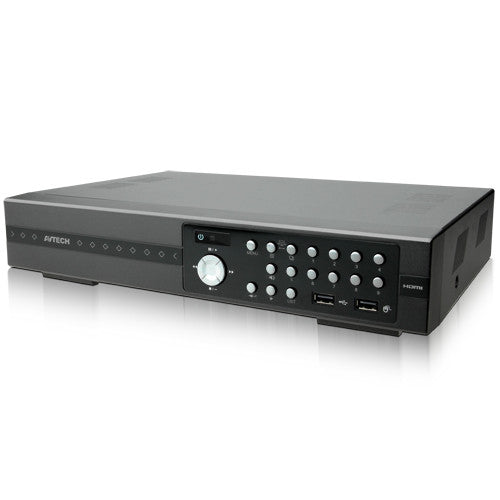

AVTECH AVZ308 Features
- Camera Compatibility: TVI / CVI / Analog HD / 960H / IP Cameras (recommend AVTECH IP cameras for full capability)
- Maximum Number of Cameras/Channels: 8 quadbrid channels + 1 more IP channel (8 analog channels, 9 IP channels)
-
Recording Rate:
Analog Mode Up to 120 IPS @ 1920 x 1080 (8 channels) Up to 240 IPS @ 1280 x 720 (8 channels)
IP Mode UP to 270 IPS @ 1920 x 1080 (9 channels) -
Video Resolution:
Analog Mode 1080P / 720P / QHD / 960H / Frame / Field / CIF
IP Mode: Live & Playback: 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240; Record**: 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720/ 640 x 480 / 320 x 240
** To see 5MP video playback, you need to backup the footage and play on PC. - Compression Styles: H.264
- Event Notification: Push Video (all 9 channels) / Push Status / FTP / E-Mail
- Recording Mode: Manual / Timer / Motion / Alarm / Remote
- Pre-Alarm Recording: Yes
- Quick Search: Time / Motion / Alarm search mode
- Remote Access: EagleEyes on iOS & Android mobile devices
- Compatible Operating System: Windows & MAC
- Compatible Program Web Browser: Internet Explorer, Google Chrome & Safari; CMS Lite: 24CH central management software for Windows OS; QuickTime: For both Windows and MAC operating systems
- Ethernet: 10/100 Base-T
- Hard Drive Bays: 2 bays
- Max TB per HD Bay: 10TB (not included in base model)
- Dimensions: 345mm(W) x 68.3mm(H) x 225mm(D)
- Weight: 2.17 kg (4.7 lb)
- Operating Temperature: 10℃ ~ 40℃ (50℉~104℉)
- Operating Humidity: 10% ~ 85%
- Power: DC12V / 3A
- Warranty: 2 years
- Please note: This unit has 1 LAN port. If connecting a switch for network cameras we recommend adding a switch with 2 uplink ports to connect to the DVR and to the network.We recommend the Planet GSD-1008HP.
