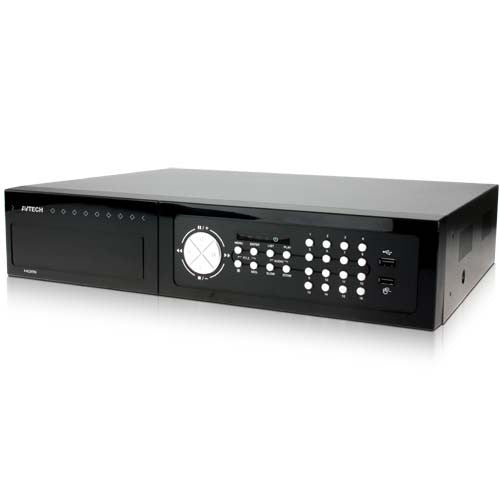

AVTECH AVZ416 16 Channel IP/TVI/CVI/HD/960H Pentabrid NVR/DVR

AVTECH AVZ416 Features

• Camera Compatibility: TVI / CVI / Analog HD / 960H / IP Cameras (recommend AVTECH IP cameras for full capability)
• Maximum Number of Cameras/Channels: 16 quadbrid channels + 12 IP channel
• Recording Rate: Analog Mode: Up to 240 IPS @ 1920 x 1080 (8 channels); IP Mode: UP to 270 IPS @ 1920 x 1080 (9 channels)
• Video Resolution: Analog Mode: 1080P / 720P / QHD / 960H / Frame / Field / CIF; IP Mode 2592 x 1944** / 2048 x 1536** / 1920 x 1080 / 1280 x 720/ 640 x 480 / 320 x 240 (For 3MP / 5MP video recording, the local live display and playback only support sub stream display D1 by default)
• Compression Styles: H.264
• Event Notification: Push Video (16 channels) / Push Status / FTP / E-Mail
• Recording Mode: Manual / Timer / Motion / Alarm / Remote
• Pre-Alarm Recording: Yes
• Quick Search: Time / Motion / Alarm search mode
• Remote Access: EagleEyes on iOS & Android mobile devices
• Compatible Operating System: Windows & MAC
• Compatible Program Web Browser: Internet Explorer, Google Chrome & Safari; CMS Lite: 32CH central management software for Windows OS; QuickTime: For both Windows and MAC operating systems
• Ethernet: 10/100 Base-T
• Hard Drive Bays: 3 bays
• Max TB per HD Bay: 6TB (not included)
• Dimensions: 432(W) × 90(H) × 326(D)
• Weight: 4 kg (8.81 lb)
• Operating Temperature: 10℃ ~ 40℃ (50℉~104℉)
• Operating Humidity: 10% ~ 85%
• Power: 19V / 3.42A
• Warranty: 2 years
