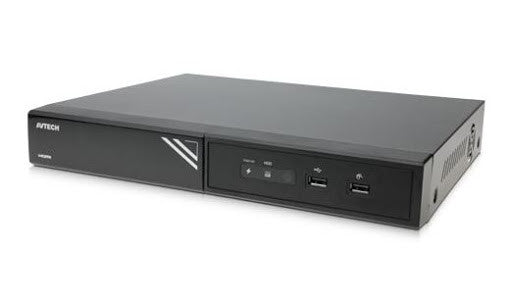

AVTECH DGD1005 4CH 5MP Pentabrid IP/HD/TVI/CVI/960H DVR

Features

• Video Compression Format: H.265
• Video Signal: Analog HD / TVI / CVI / 960H / IP
• Video Input: 4 channels total, 2 of which can be used as IP channels
• Video Output: BNC, VGA, HDMI
• Video Resolution:
  Analog Mode 5MP / 5MLITE / 4MP / 4MLITE / FHD (1080P) / HD / 960H / Frame / CIF
  IP Mode 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
  Supports 5MP @ 6FPS on all channels
• Max. Recording Rate:
  Analog Model: Up to 24 IPS @ 5MP, Up to 32 IPS @ 4MP, Up to 60 IPS @ FHD (1080P)
  IP Mode (2 channels): Up to 30 IPS @ 2592 x 1944 (5MP), Up to 50 IPS @ 2048 x 1536 (3MP), Up to 60 IPS @ 1920 x 1080
• Hard Drive Bays: 1 bay
• Max TB per HD Bay: 10TB
• Recording Mode: Manual / Timer / Motion / Alarm / Remote
• Pre-alarm Recording: Yes
• Playback Channel: 4CH
• Quick Search: Time / Motion Alarm search mode
• Motion Detection Area: 16 × 12 grids per channel
• Event Notification: Push Video (1CH) / Push Status / FTP / E-Mail
• Zoom: 2x digital zoom
• User Level: 4 user levels for different access privilege
• Operating Temperature: 10ºC ~ 40ºC (50ºF ~104ºF)
• Operating Humidity: 10% ~ 85%
• Dimensions (mm): 260 (L) x 235.7 (W) x 48(H)
• Net Weight: 1.2 kg (2.8 lb)
• Warranty: 2 years
