AVTECH DGD1009

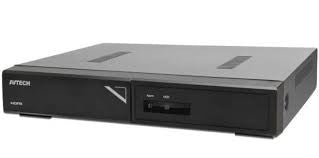

AVTECH DGD1009 8CH 5MP Pentabrid IP/HD/TVI/CVI/960H DVR

AVTECH

AVTECH DGD1009 8CH 5MP Pentabrid IP/HD/TVI/CVI/960H DVR

Sale price$155.00
Discontinued
SKU: ATC-DGD1009

Contact

Features

  • Video Compression Format: H.265
  • Video Signal: Analog HD / TVI / CVI / 960H / IP
  • Video Input: 8 channels total, 2 of which can be used as IP channels
  • Video Output: BNC, VGA, HDMI
  • Video Resolution:
    Analog Mode 5MP / 5MLITE / 4MP / 4MLITE / FHD (1080P) / HD / 960H / Frame / CIF
    IP Mode 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
    Supports 5MP @ 6FPS on all channels
  • Max. Recording Rate:
    Analog Mode: Up to 48 IPS @ 5MP, Up to 64 IPS @ 4MP, Up to 120 IPS @ FHD (1080P)
    IP Mode (2 channels): Up to 30 IPS @ 2592 x 1944 (5MP), Up to 50 IPS @ 2048 x 1536 (3MP), Up to 60 IPS @ 1920 x 1080
  • Hard Drive Bays: 1 bay
  • Max TB per HD Bay: 10TB
  • Recording Mode: Manual / Timer / Motion / Alarm / Remote
  • Pre-alarm Recording: Yes
  • Playback Channel: 8CH
  • Quick Search: Time / Motion Alarm search mode
  • Motion Detection Area: 16 × 12 grids per channel
  • Event Notification: Push Video (1CH) / Push Status / FTP / E-Mail
  • Zoom: 2x digital zoom
  • User Level: 4 user levels for different access privilege
  • Operating Temperature: 10ºC ~ 40ºC (50ºF ~104ºF)
  • Operating Humidity: 10% ~ 85%
  • Dimensions (mm): 260 (L) x 235.7 (W) x 48(H)
  • Warranty: 2 years
